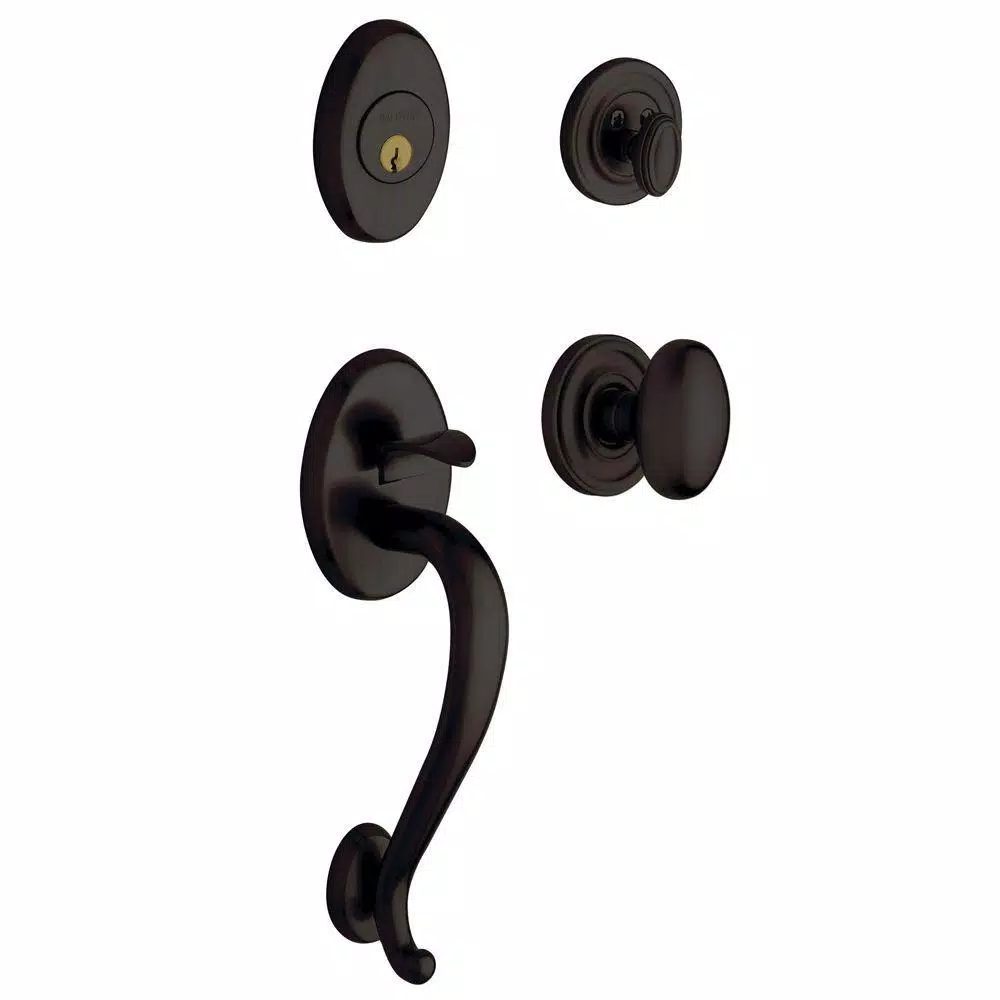

Name: Baldwin Estate Logan Single Cylinder Entry Handleset with Egg Knob, Oil Rubbed Bronze
Brand: Baldwin
Price: 305.54 USD
Availability: InStock

Experience the pinnacle of craftsmanship with the Baldwin Estate Logan handleset, featuring a classic single cylinder deadbolt and elegant egg knob. Handcrafted from solid forged brass, this ANSI Grade 1 rated hardware provides unmatched security and a custom, signature look for your home.

Premium construction featuring solid forged brass for long-lasting durability
Highest level of security with ANSI Grade 1 rating
Includes Logan sectional trim paired with a classic 5025 egg-style knob
Both the deadbolt and latch bolt are constructed of solid brass
Designed for easy installation on standard pre-bored wood or metal doors
Accommodates standard door thickness of 1.75 in (conversion kits available for thicker doors)
Features a high-security 5-pin keying cylinder

Door Handing	Universal
Interior / Exterior	Exterior
Minimum Door Thickness	1.375 in
Security/ANSI Grade	ANSI Grade 1 (Best)
Door Lock Style	Classic
Backset Size	Adjustable
Hardware Finish Family	Bronze
Door Locks & Knobs Product Type	Keyed Handlesets
Material	Solid Brass
Total Number of Keys Included	2
Knob Style	Flat Ball
Knob / Lever Strike	Square Corner
Lock Type	Keyed Entry
Application Type	Entry
Deadbolt Type	Single Cylinder Deadbolt
Finish	Oil Rubbed Bronze
Commercial/Residential	Residential
Handleset Product Type	2 Piece Front & Back
Knob / Lever Housing Width	0.5 in
Deadbolt Strike	Square Corner
Deadbolt Strike Width	1 in
Outside Key Plate Width	3 in
Outside Bottom Handle Plate Length	3 in
Inside Top Plate Length	3 in
Knob / Lever Bore Hole Diameter	1 in
Deadbolt Throw Length	1 in
Outside Key Plate Length	3 in
Handle Grip Length	4 in
Inside Top Plate Width	3 in
Deadbolt Strike Height	2.25 in
Outside Top Handle Plate Length	3 in
Knob / Lever Strike Height	2.25 in
Knob Diameter	2.5 in
Knob / Lever Throw Length	0.5 in
Knob / Lever Strike Width	1 in
Assembled Depth	4.7 in
Deadbolt Trim Ring Diameter	3 in
Outside Top Handle Plate Width	3 in
Outside Bottom Handle Plate Width	3 in
Assembled Width	4.7 in
Maximum Door Thickness	1.75 in
Projection	3 in
Knob / Lever Cross Bore Diameter	2.125 in
Knob / Lever Housing Height	0.5 in
Assembled Height	21 in
Weight	6.6 lbs
Length	20.2 in
Width	4.9 in
Height	4.8 in
