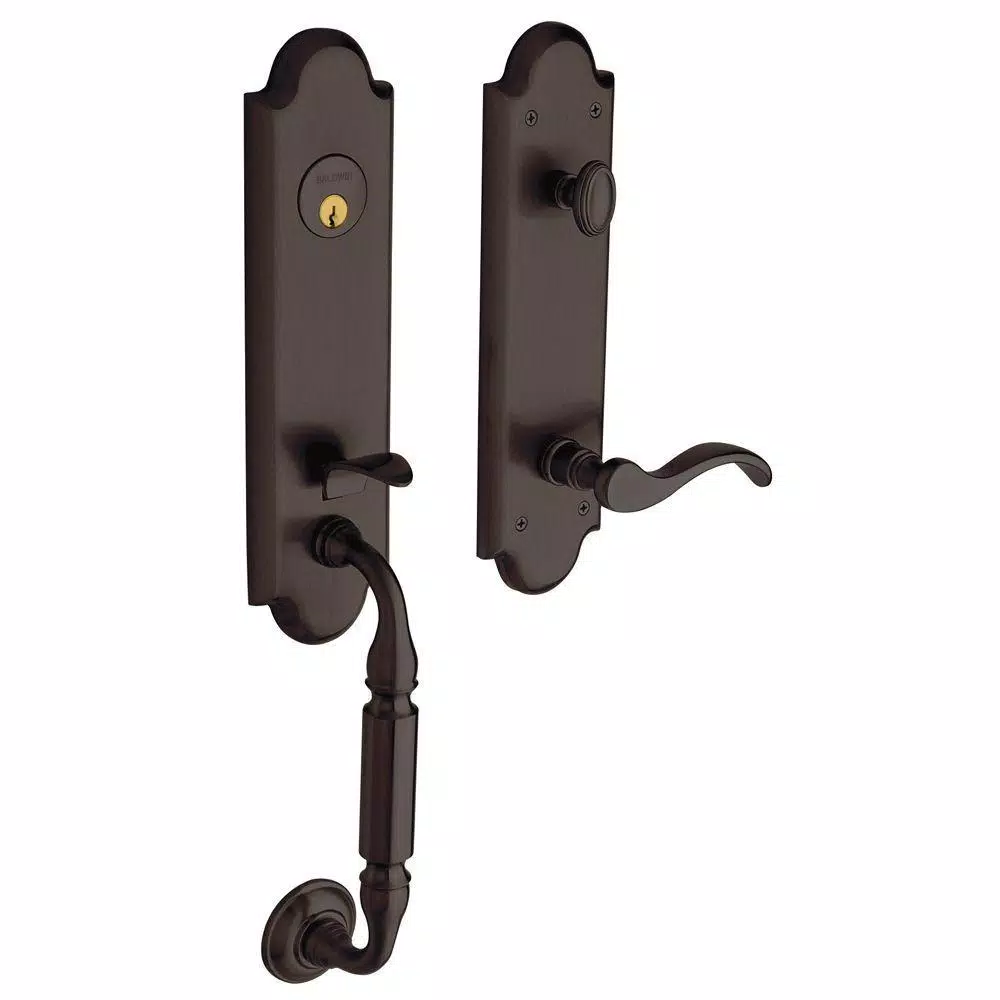

Experience the pinnacle of craftsmanship with the Baldwin Estate Manchester handleset, featuring a timeless Venetian Bronze finish. This ANSI Grade 1 rated entry set is constructed from solid forged brass for unmatched durability and security. Designed for elegance and ease, it provides a custom-made feel for your residential entryway.
Experience the pinnacle of craftsmanship with the Baldwin Estate Manchester handleset, featuring a timeless Venetian Bronze finish. This ANSI Grade 1 rated entry set is constructed from solid forged brass for unmatched durability and security. Designed for elegance and ease, it provides a custom-made feel for your residential entryway.
Door Handing
Left-Handed
Interior / Exterior
Exterior
Minimum Door Thickness
1.75 in
Keyway
KW1
Security/ANSI Grade
ANSI Grade 1 (Best)
Features
Adjustable Backset
Door Lock Style
Antique
Backset Size
Adjustable
Deadbolt Strike
Square Corner
Hardware Finish Family
Bronze
Door Locks & Knobs Product Type
Keyed Handlesets
Material
Solid Brass
Keying Type
Keyed Different
Total Number of Keys Included
2
Lock Type
Keyed Entry
Electronic / Mechanical
Mechanical
Knob / Lever Strike
Square Corner
Included
Hardware, Installation Instructions
Application Type
Entry
Deadbolt Type
Single Cylinder Deadbolt
Finish
Venetian Bronze
Commercial/Residential
Residential
Lever Style
Wave
Handleset Product Type
1 Piece Front & Back
Knob / Lever Housing Width
0.5 in
Deadbolt Strike Width
1 in
Knob / Lever Bore Hole Diameter
1 in
Outside Handle and Key Plate Width
3 in
Deadbolt Throw Length
1 in
Handle Grip Length
4 in
Inside Plate Length
11.208 in
Deadbolt Strike Height
2.25 in
Knob / Lever Strike Height
2.25 in
Knob / Lever Throw Length
1 in
Knob / Lever Strike Width
1 in
Deadbolt Trim Ring Diameter
3 in
Deadbolt Cross Bore Diameter
2.125 in
Assembled Depth
4.7 in
Lever Grip Length
4 in
Inside Plate Width
3 in
Maximum Door Thickness
1.75 in
Outside Handle Plate On - Center Measurement
8 in
Projection
2.845 in
Outside Handle and Key Plate Length
11.208 in
Knob / Lever Cross Bore Diameter
2.125 in
Knob / Lever Housing Height
0.5 in
Assembled Width
4.7 in
Assembled Height
23.7 in
Dimensions
23.9 × 4.9 × 4.8 in
Weight
8.5 lbs
