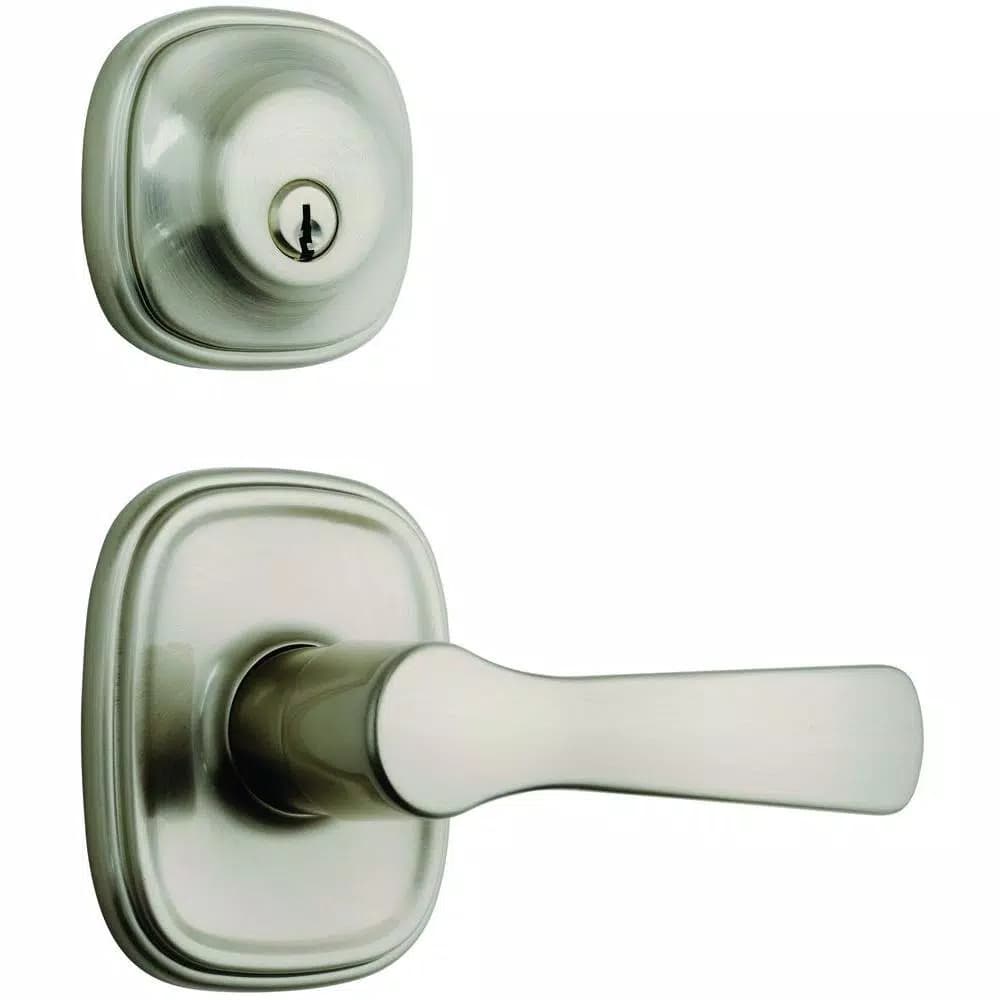

Experience ultimate convenience with Brink’s Home Security innovative Push Pull Rotate technology, allowing you to open doors with an elbow, hip, or finger. Built on a commercial-grade chassis for durability, this modern satin nickel lockset is perfect for high-traffic residential entryways. Installation is quick and easy, requiring only a Phillips screwdriver to upgrade your home's functionality.
Experience ultimate convenience with Brink’s Home Security innovative Push Pull Rotate technology, allowing you to open doors with an elbow, hip, or finger. Built on a commercial-grade chassis for durability, this modern satin nickel lockset is perfect for high-traffic residential entryways. Installation is quick and easy, requiring only a Phillips screwdriver to upgrade your home's functionality.
| Door Handing | Universal |
| Interior / Exterior | Exterior |
| Minimum Door Thickness | 1.375 in |
| Keyway | No Keyway |
| Security/ANSI Grade | ANSI Grade 3 (Good) |
| Features | Easy Installation |
| Door Lock Style | Modern |
| Backset Size | Adjustable |
| Lever Material | Zinc |
| Number of Pins | 5 |
| Deadbolt Strike | Round Corner |
| Hardware Finish Family | Nickel |
| Door Locks & Knobs Product Type | Keyed Levers |
| Total Number of Keys Included | 2 |
| Lock Type | Keyed Entry |
| Electronic / Mechanical | Mechanical |
| Single or Double Cylinder Deadbolt | Single |
| Application Type | Passage |
| Deadbolt Type | Single Cylinder Deadbolt |
| Finish | Satin Nickel |
| Commercial/Residential | Residential |
| Lever Style | Straight |
| Knob / Lever Housing Width | 3.75 in |
| Deadbolt Strike Width | 2 in |
| Knob / Lever Bore Hole Diameter | 2.125 in |
| Deadbolt Throw Length | 1 in |
| Deadbolt Strike Height | 2.75 in |
| Knob / Lever Strike Height | 2.25 in |
| Knob / Lever Throw Length | 0.50 in |
| Knob / Lever Strike Width | 1.71 in |
| Assembled Depth | 1.75 in |
| Lever Grip Length | 4.65 in |
| Deadbolt Bore Hole Diameter | 2.125 in |
| Deadbolt Trim Ring Diameter | 2.57 in |
| Deadbolt Cross Bore Diameter | 1 in |
| Assembled Width | 6.125 in |
| Maximum Door Thickness | 1.75 in |
| Cross Bore Diameter | 1 in |
| Projection | 1.75 in |
| Knob / Lever Housing Height | 3 in |
| Assembled Height | 3.75 in |
| Weight | 4.2 lbs |
| Length | 4.5 in |
| Width | 10.88 in |
| Height | 9.13 in |
