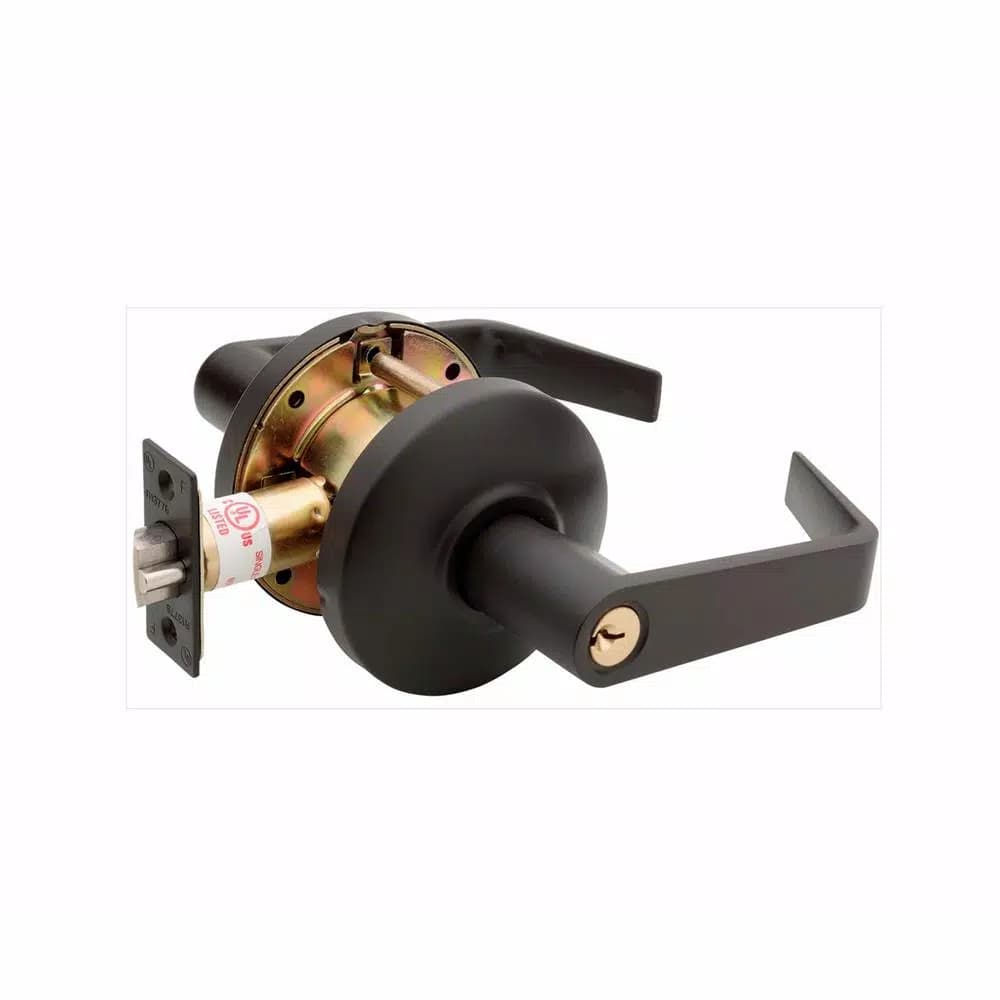

Engineered for high-traffic commercial and residential use, the Bulldog 7200 Series offers ANSI/BHMA Grade 1 security and a 3-hour fire rating. This heavy-duty lever features solid brass cylinders and nickel-plated bolts for maximum durability and long-lasting performance.
Engineered for high-traffic commercial and residential use, the Bulldog 7200 Series offers ANSI/BHMA Grade 1 security and a 3-hour fire rating. This heavy-duty lever features solid brass cylinders and nickel-plated bolts for maximum durability and long-lasting performance.
Door Handing
Universal
Interior / Exterior
Interior/Exterior
Minimum Door Thickness
1.375 in
Keyway
C
Security/ANSI Grade
ANSI Grade 1
Door Lock Style
Classic
Backset Size
2.75 in
Lever Material
Metal
Strike
Square corner
Number of Pins
5
Hardware Finish Family
Bronze
Door Locks & Knobs Product Type
Keyed Levers
Material
Metal
Combo Pac
Lockset
Total Number of Keys Included
0
Lock Type
Keyed Entry
Electronic / Mechanical
Mechanical
Included
No additional items included
Wired or Wireless
No electrical connectivity
Application Type
Entry, Dummy
Finish
Dark Bronze Finish
Commercial/Residential
Commercial
Lever Style
Straight
Housing Width
3.5 in
Housing Height
3.5 in
Assembled Depth
8 in
Lever Grip Length
7.3 in
Strike Height
2.25 in
Strike Width
2.25 in
Assembled Width
7.3 in
Maximum Door Thickness
2 in
Cross Bore Diameter
2.125 in
Throw Length
7.5 in
Projection
2.625 in
Assembled Height
3.7 in
Bore Hole Diameter
2.125 in
Dimensions
8 × 7.3 × 3.7 in
Weight
4.4 lbs
