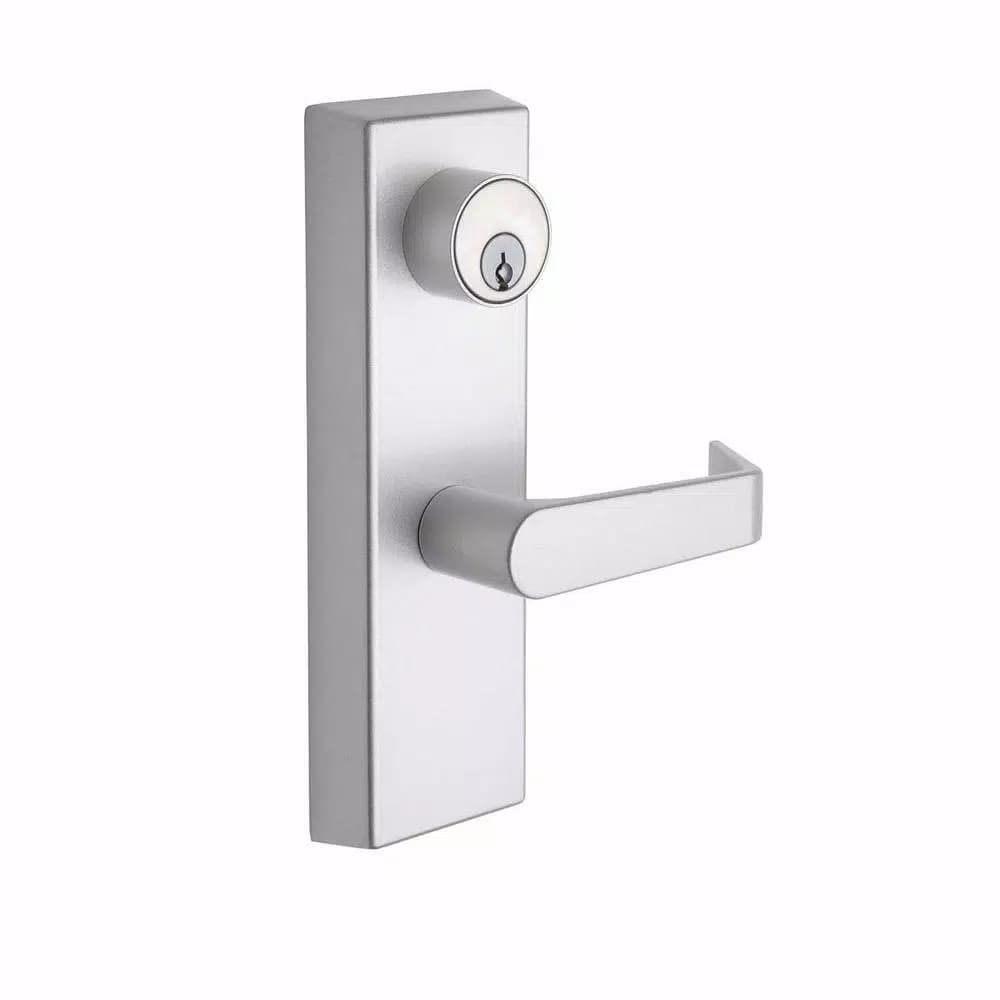

This heavy-duty ANSI Grade 1 solid cast lever provides professional-grade security and durability for commercial applications. Designed to fit Bulldog R9500 and V9560 series exit devices, the satin stainless finish offers a modern, high-class aesthetic for any entry door.
This heavy-duty ANSI Grade 1 solid cast lever provides professional-grade security and durability for commercial applications. Designed to fit Bulldog R9500 and V9560 series exit devices, the satin stainless finish offers a modern, high-class aesthetic for any entry door.
| Door Handing | Universal |
| Interior / Exterior | Interior/Exterior |
| Minimum Door Thickness | 1.375 in |
| Keyway | C |
| Security/ANSI Grade | ANSI Grade 1 |
| Door Lock Style | Modern |
| Backset Size | 2.75 in |
| Lever Material | Metal |
| Number of Pins | 5 |
| Deadbolt Strike | Strike not included |
| Hardware Finish Family | Stainless Steel |
| Combo Pac | Lockset |
| Total Number of Keys Included | 0 |
| Door Locks & Knobs Product Type | Keyed Levers |
| Lock Type | Keyed Entry |
| Electronic / Mechanical | Mechanical |
| Application Type | Entry, Dummy |
| Deadbolt Type | Single Cylinder Deadbolt |
| Finish | Satin Stainless Finish |
| Commercial/Residential | Commercial |
| Lever Style | Straight |
| Knob / Lever Housing Width | 2.75 in |
| Knob / Lever Bore Hole Diameter | 2.125 in |
| Knob / Lever Throw Length | 5 in |
| Assembled Depth | 3 in |
| Lever Grip Length | 5.25 in |
| Assembled Width | 5.25 in |
| Assembled Height | 9.75 in |
| Maximum Door Thickness | 2 in |
| Cross Bore Diameter | 2.125 in |
| Projection | 2.625 in |
| Knob / Lever Housing Height | 8.5 in |
| Weight | 2.75 lbs |
| Length | 2.75 in |
| Width | 6 in |
| Height | 0.5 in |
