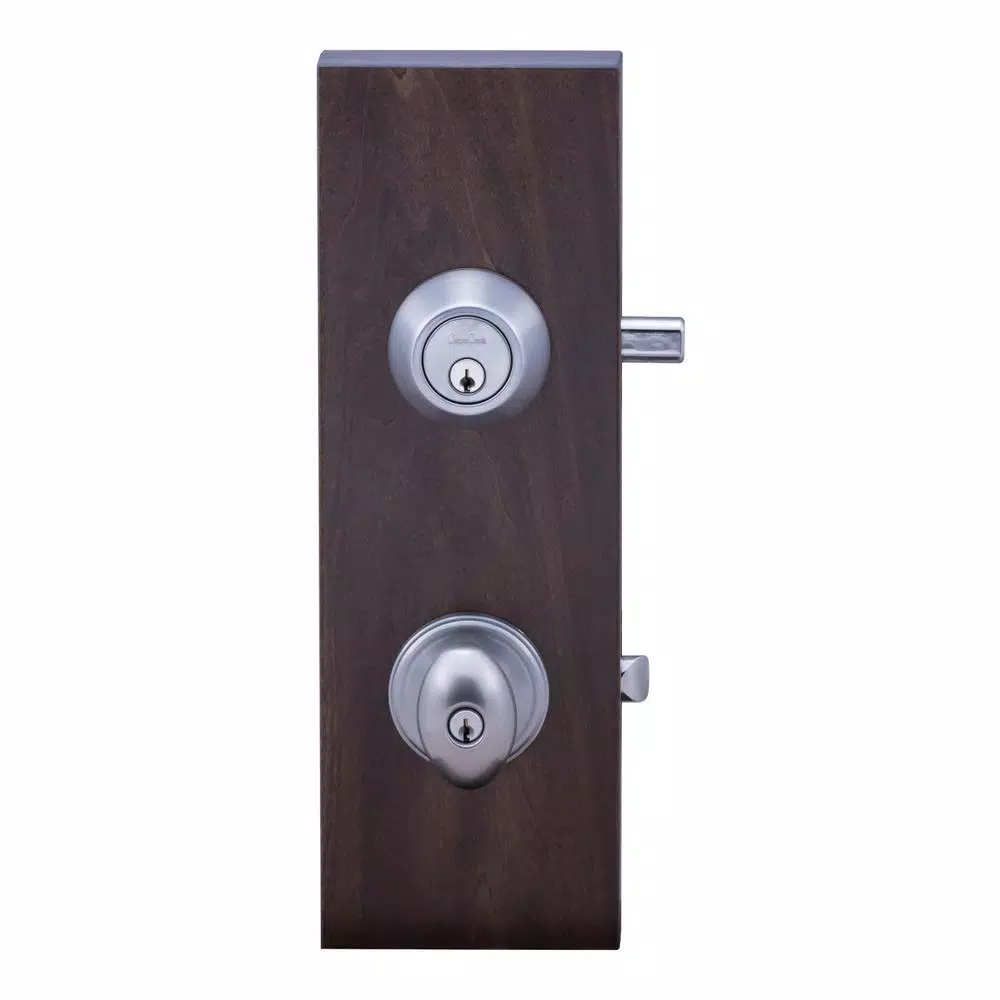

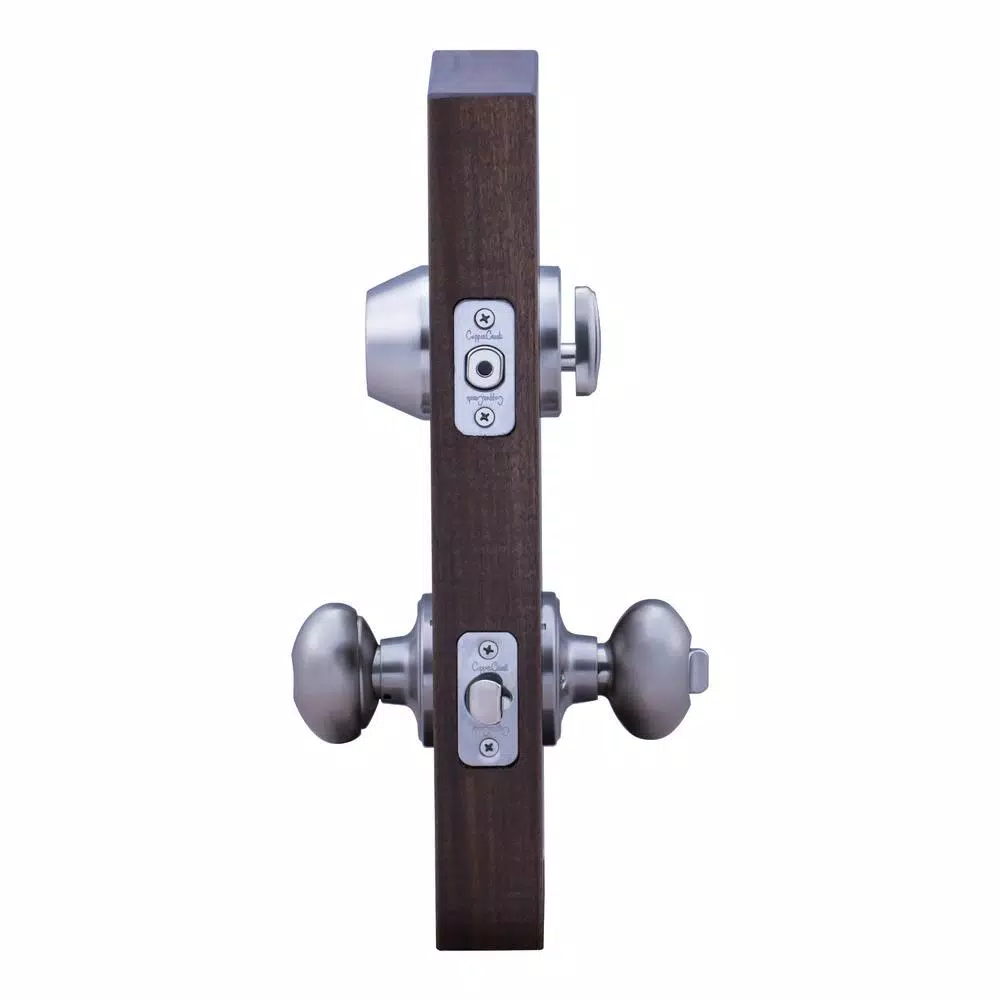

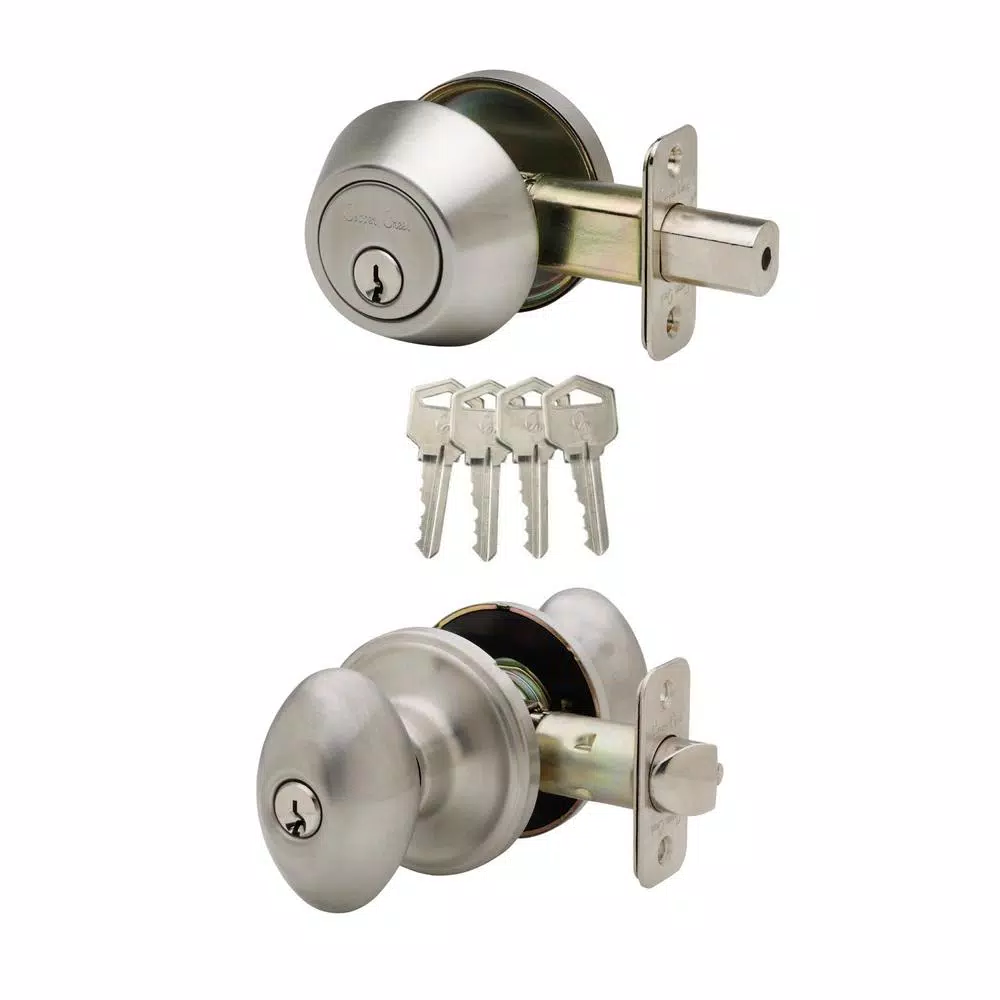

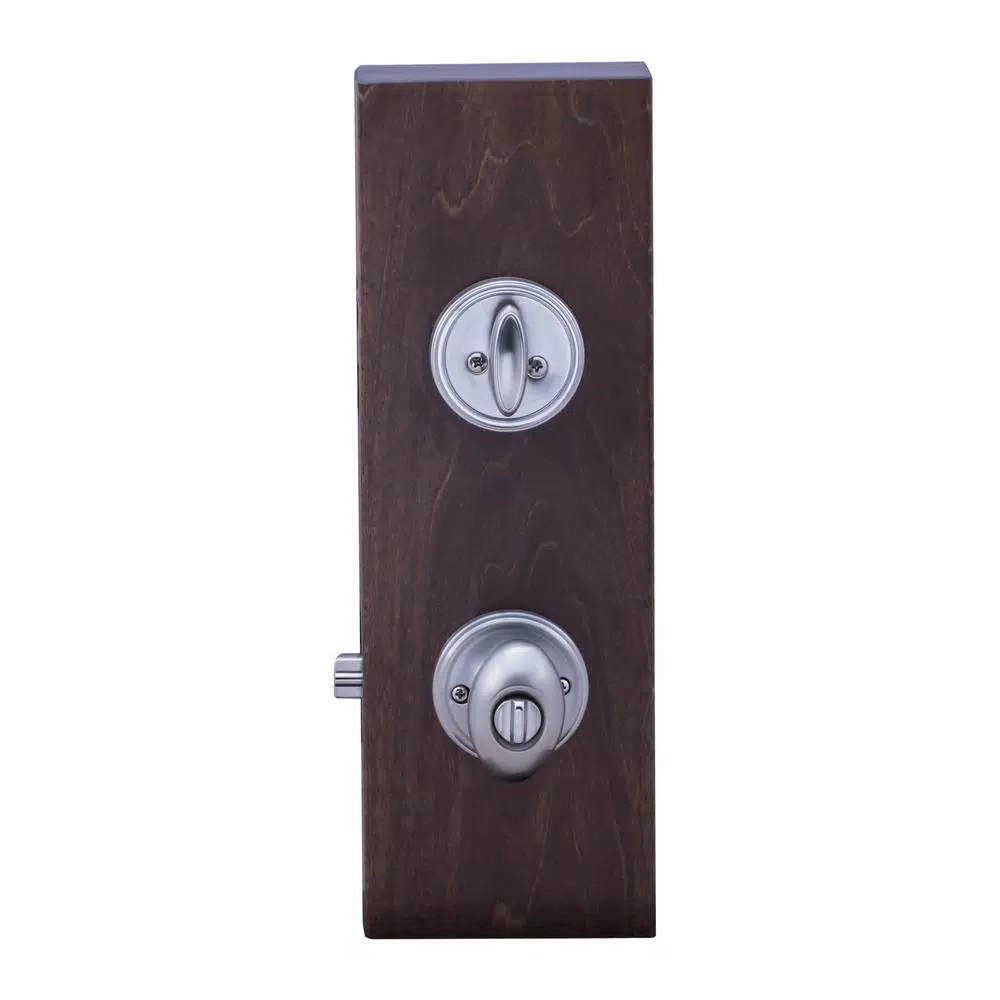

Enhance your home's security and style with this elegant colonial egg-style door knob and deadbolt combination. Featuring a smudge-resistant satin stainless finish, this ANSI Grade 3 hardware set offers durable protection and a seamless fit for most residential doors.
Enhance your home's security and style with this elegant colonial egg-style door knob and deadbolt combination. Featuring a smudge-resistant satin stainless finish, this ANSI Grade 3 hardware set offers durable protection and a seamless fit for most residential doors.
Interior / Exterior
Interior/Exterior
Minimum Door Thickness
1.375 in
Keyway
KW1
Security/ANSI Grade
ANSI Grade 3 (Good)
Door Lock Style
Modern
Backset Size
Adjustable
Number of Pins
5
Number of Deadbolt Pins
5
Deadbolt Strike
Round Corner
Knob Material
Zinc
Hardware Finish Family
Stainless Steel
Door Locks & Knobs Product Type
Keyed Knobs
Material
Zinc
Combo Pack
Lockset
Total Number of Keys Included
4
Knob Style
Egg
Lock Type
Keyed Entry
Electronic / Mechanical
Mechanical
Single or Double Cylinder Deadbolt
Single
Application Type
Entry
Deadbolt Type
Single Cylinder Deadbolt
Finish
Satin Stainless
Commercial/Residential
Residential
Knob Strike
Round corner
Deadbolt Strike Width
1 in
Knob Cross Bore Diameter
2.125 in
Deadbolt Throw Length
1 in
Knob Strike Height
2.25 in
Knob Housing Width
2.625 in
Knob Bore Hole Diameter
2.125 in
Knob Housing Height
2.625 in
Deadbolt Strike Height
2.25 in
Knob Strike Width
1 in
Knob Diameter
1 in
Knob / Lever Throw Length
0.75 in
Assembled Depth
2.5 in
Assembled Width
2.625 in
Maximum Door Thickness
1.75 in
Projection
2.5 in
Assembled Height
2.625 in
Deadbolt Bore Hole Diameter
1 in
Deadbolt Trim Ring Diameter
2.5625 in
Deadbolt Cross Bore Diameter
2.125 in
Dimensions
7 × 6.5 × 2.75 in
Weight
2.45 lbs
