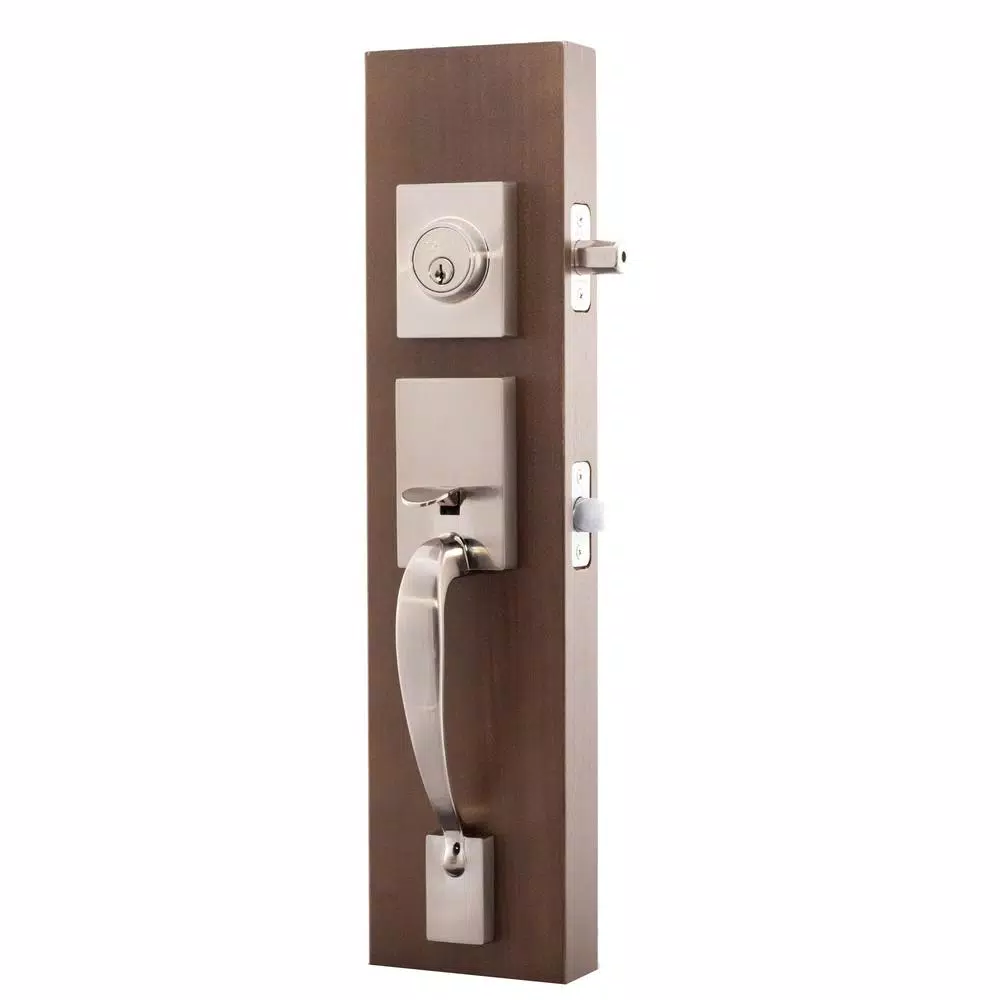

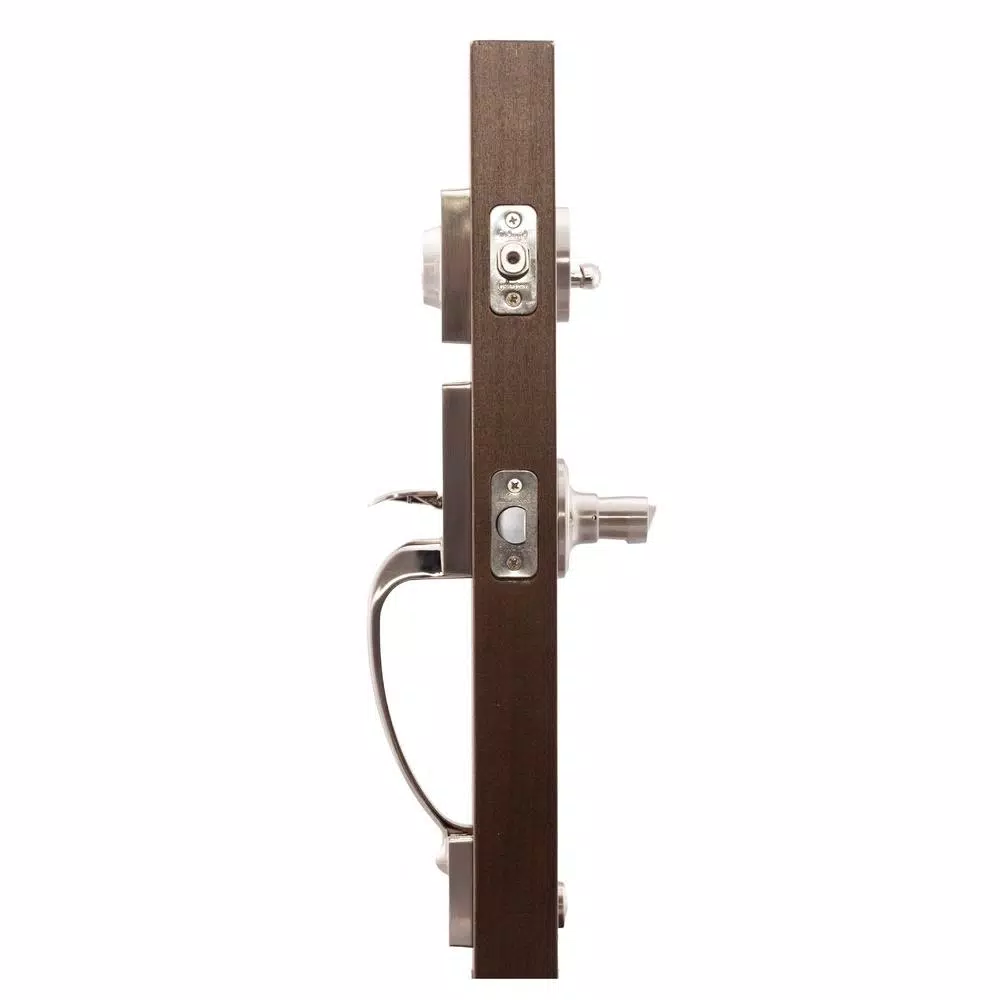

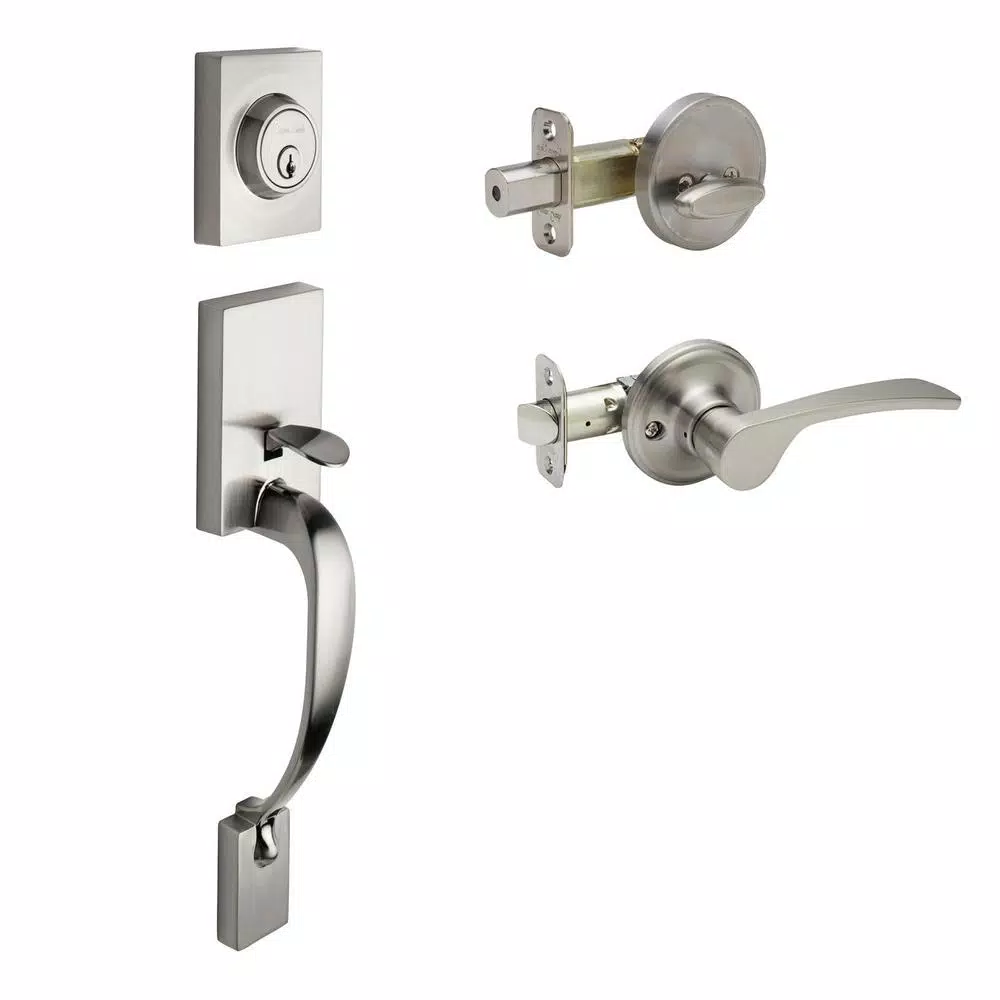

Elevate your home's curb appeal with this timeless Craftsman-style handleset featuring a sophisticated satin stainless finish. Designed for both style and security, this durable set includes a modern Scandinavian lever and meets ANSI Grade 3 residential standards.
Elevate your home's curb appeal with this timeless Craftsman-style handleset featuring a sophisticated satin stainless finish. Designed for both style and security, this durable set includes a modern Scandinavian lever and meets ANSI Grade 3 residential standards.
| Door Handing | Left-Handed |
| Interior / Exterior | Exterior |
| Minimum Door Thickness | 1.375 in |
| Keyway | KW1 |
| Security/ANSI Grade | ANSI Grade 3 (Good) |
| Door Lock Style | Modern |
| Backset Size | Adjustable |
| Hardware Finish Family | Stainless Steel |
| Door Locks & Knobs Product Type | Keyed Handlesets |
| Material | Steel |
| Keying Type | Keyed Different |
| Total Number of Keys Included | 2 |
| Lock Type | Keyed Entry |
| Electronic / Mechanical | Mechanical |
| Knob / Lever Strike | Round Corner |
| Application Type | Entry |
| Deadbolt Type | Single Cylinder Deadbolt |
| Finish | Satin Stainless |
| Commercial/Residential | Residential |
| Lever Style | Straight |
| Handleset Product Type | 2 Piece Front & Back |
| Knob / Lever Housing Width | 2.875 in |
| Deadbolt Strike | Round Corner |
| Outside Key Plate Width | 2.625 in |
| Outside Bottom Handle Plate Length | 2.5 in |
| Inside Top Plate Length | 1 in |
| Knob / Lever Bore Hole Diameter | 2.125 in |
| Deadbolt Strike Length | 1 in |
| Outside Key Plate Length | 1 in |
| Handle Grip Length | 13.8 in |
| Inside Top Plate Width | 1 in |
| Deadbolt Strike Height | 2.25 in |
| Outside Top Handle Plate Length | 2.5 in |
| Knob / Lever Strike Height | 2.25 in |
| Knob / Lever Throw Length | 0.75 in |
| Knob / Lever Strike Width | 1 in |
| Assembled Depth | 3.75 in |
| Lever Grip Length | 4 in |
| Deadbolt Bore Hole Diameter | 1 in |
| Deadbolt Trim Ring Diameter | 2.5625 in |
| Outside Top Handle Plate Width | 2.625 in |
| Outside Bottom Handle Plate Width | 1.5 in |
| Deadbolt Cross Bore Diameter | 2.125 in |
| Assembled Width | 2.875 in |
| Maximum Door Thickness | 1.75 in |
| Projection | 2.5 in |
| Knob / Lever Cross Bore Diameter | 2.125 in |
| Assembled Height | 16.5 in |
| Weight | 3.43 lbs |
| Length | 19 in |
| Width | 6.33 in |
| Height | 3.5 in |
