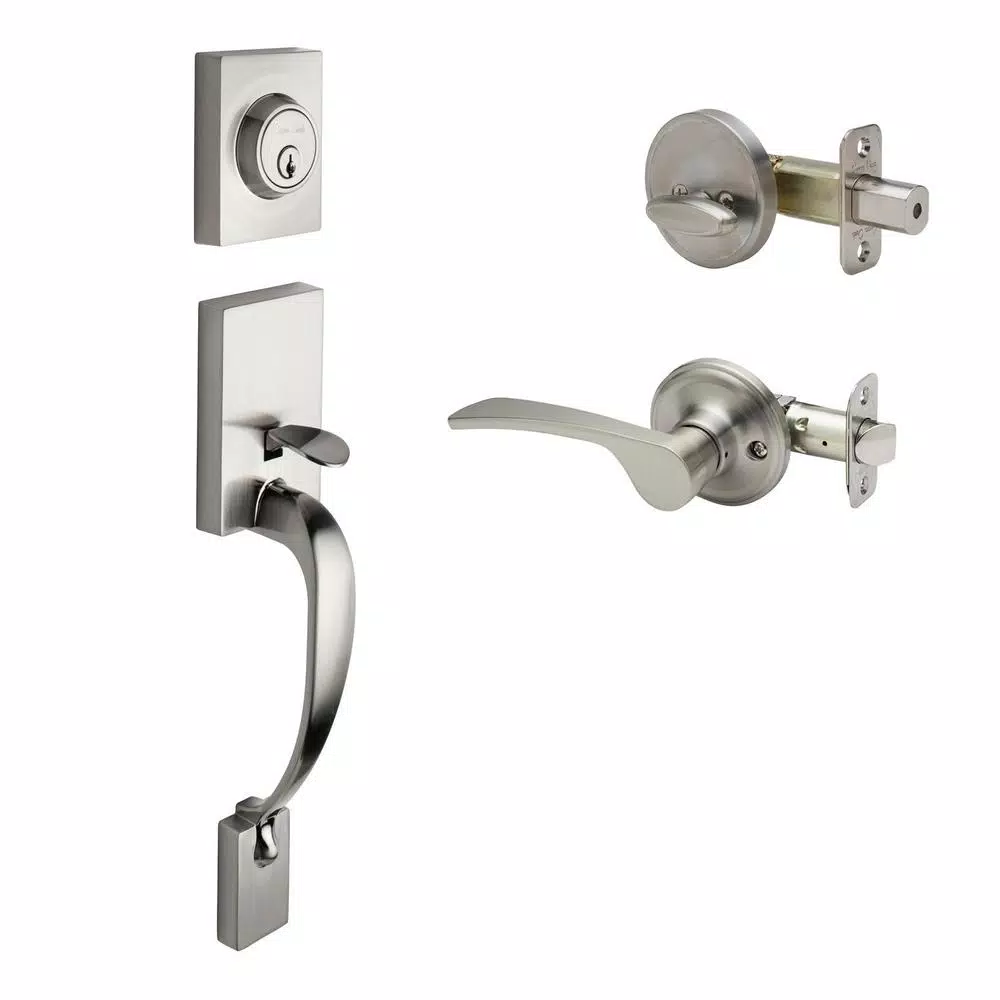

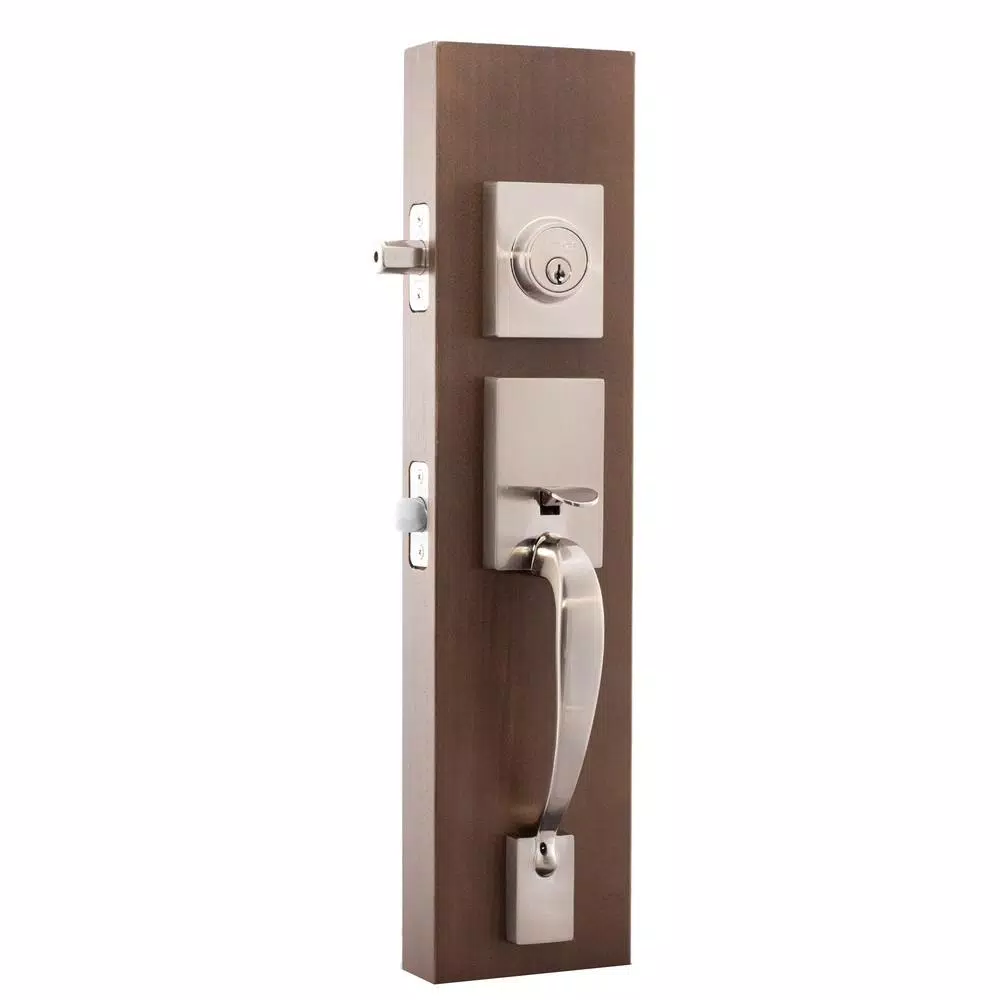

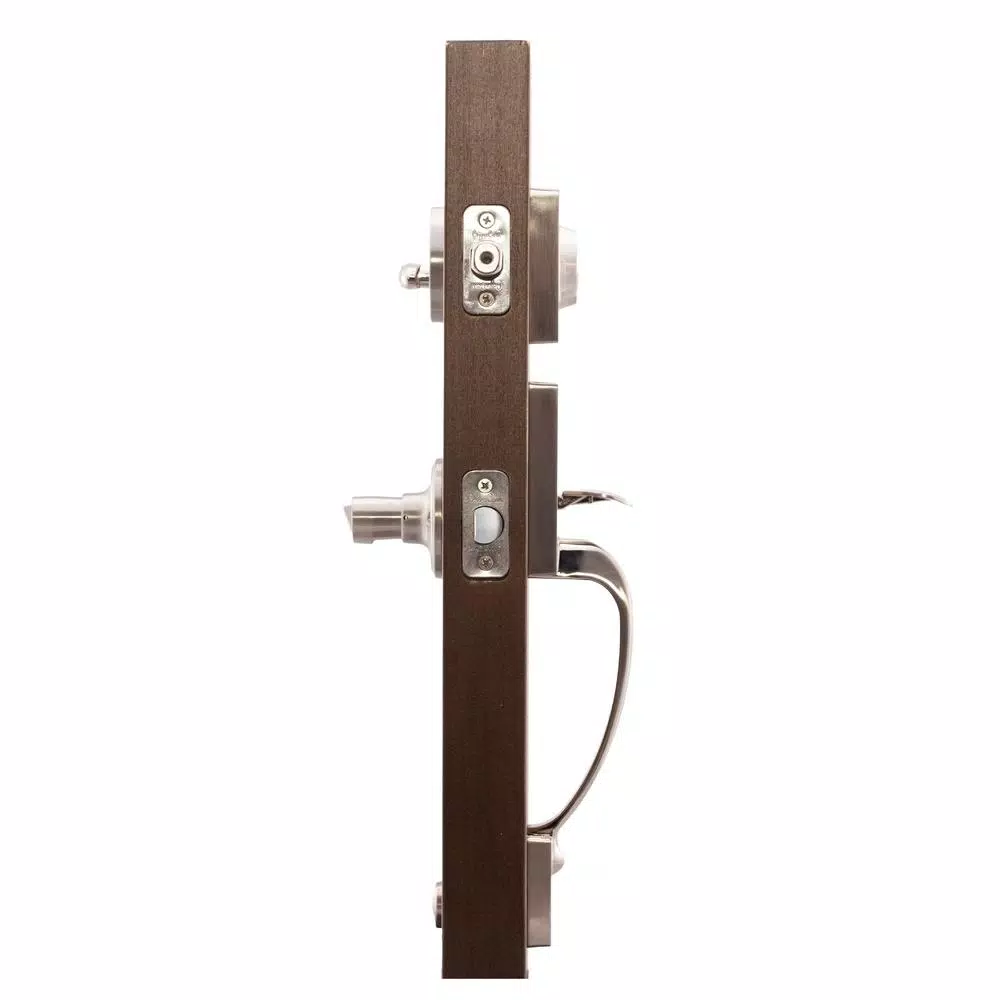

Elevate your home's curb appeal with this timeless Craftsman-style handleset featuring a sophisticated satin stainless finish. Designed for both style and security, this durable set includes a modern Scandinavian lever and meets ANSI Grade 3 residential standards.
Elevate your home's curb appeal with this timeless Craftsman-style handleset featuring a sophisticated satin stainless finish. Designed for both style and security, this durable set includes a modern Scandinavian lever and meets ANSI Grade 3 residential standards.
Door Handing
Right-Handed
Interior / Exterior
Exterior
Minimum Door Thickness
1.375 in
Keyway
KW1
Security/ANSI Grade
ANSI Grade 3 (Good)
Door Lock Style
Modern
Backset Size
Adjustable
Deadbolt Strike
Round Corner
Hardware Finish Family
Stainless Steel
Door Locks & Knobs Product Type
Keyed Handlesets
Material
Steel
Keying Type
Keyed Different
Total Number of Keys Included
2
Lock Type
Keyed Entry
Electronic / Mechanical
Mechanical
Knob / Lever Strike
Round Corner
Included
No additional items included
Application Type
Entry
Deadbolt Type
Single Cylinder Deadbolt
Finish
Satin Stainless
Commercial/Residential
Residential
Lever Style
Straight
Handleset Product Type
2 Piece Front & Back
Knob / Lever Housing Width
2.875 in
Deadbolt Strike Width
1 in
Outside Key Plate Width
2.625 in
Outside Bottom Handle Plate Length
2.5 in
Inside Top Plate Length
1 in
Knob / Lever Bore Hole Diameter
2.125 in
Deadbolt Bore Hole Diameter
1 in
Deadbolt Trim Ring Diameter
2.5625 in
Outside Top Handle Plate Length
2.5 in
Outside Top Handle Plate Width
2.625 in
Outside Bottom Handle Plate Width
1.5 in
Knob / Lever Strike Height
2.25 in
Knob / Lever Strike Width
1 in
Knob / Lever Throw Length
0.75 in
Deadbolt Throw Length
1 in
Deadbolt Strike Height
2.25 in
Assembled Depth
3.75 in
Lever Grip Length
4 in
Handle Grip Length
13.8 in
Inside Top Plate Width
1 in
Assembled Width
2.875 in
Maximum Door Thickness
1.75 in
Projection
2.5 in
Knob / Lever Cross Bore Diameter
2.125 in
Knob / Lever Housing Height
4.5 in
Assembled Height
16.5 in
Deadbolt Cross Bore Diameter
2.125 in
Dimensions
19 × 6.33 × 3.5 in
Weight
3.43 lbs
