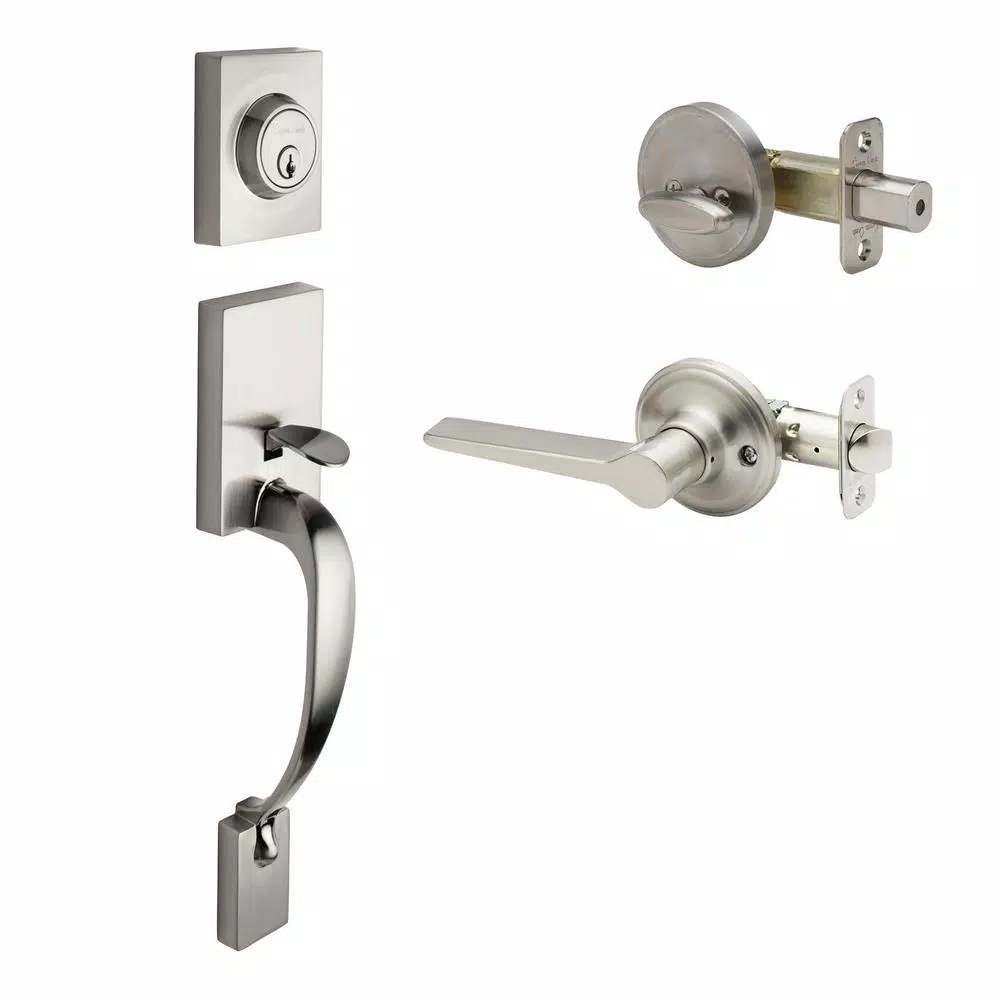

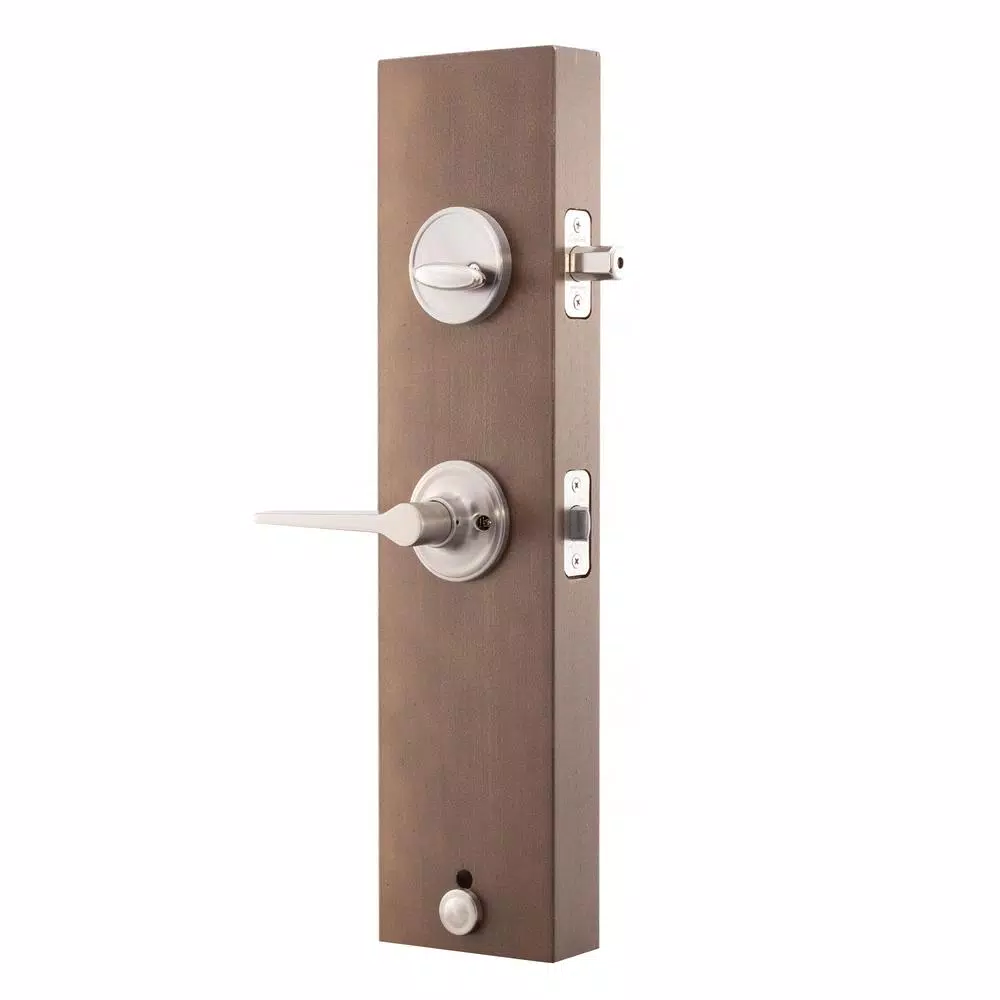

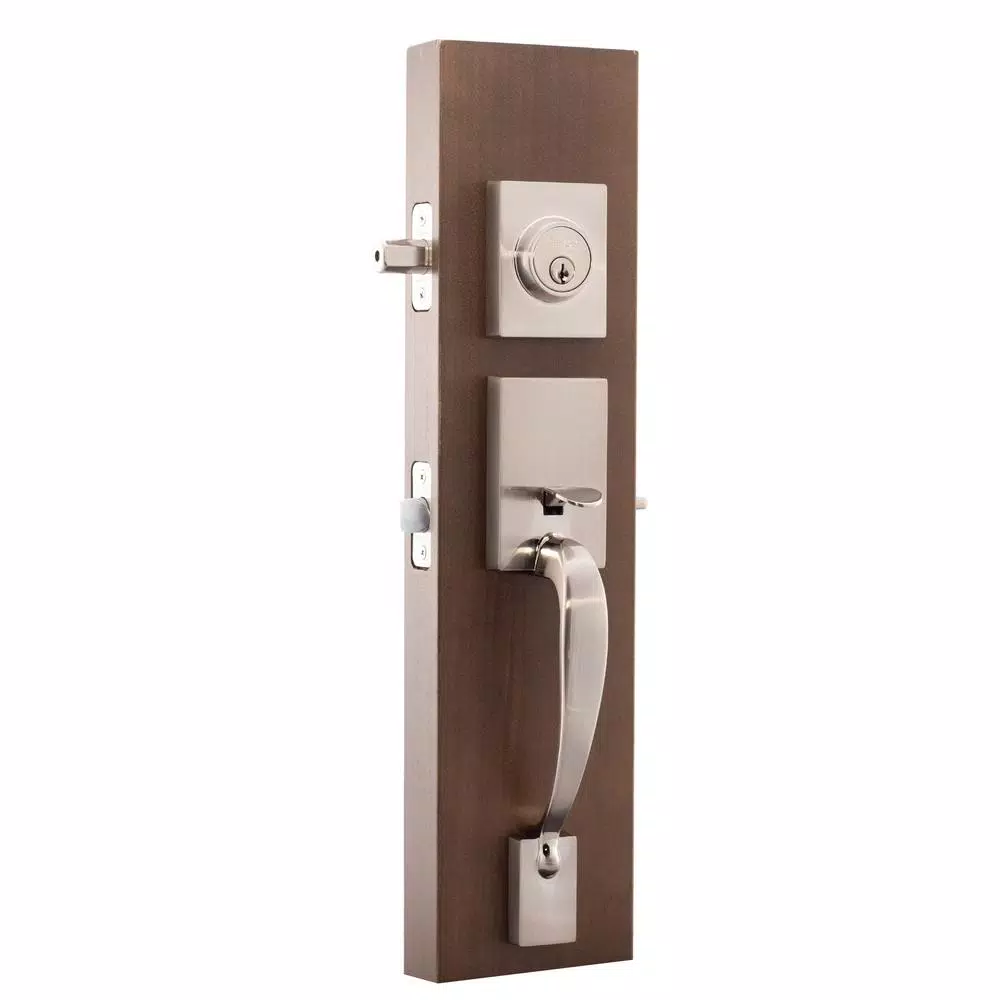

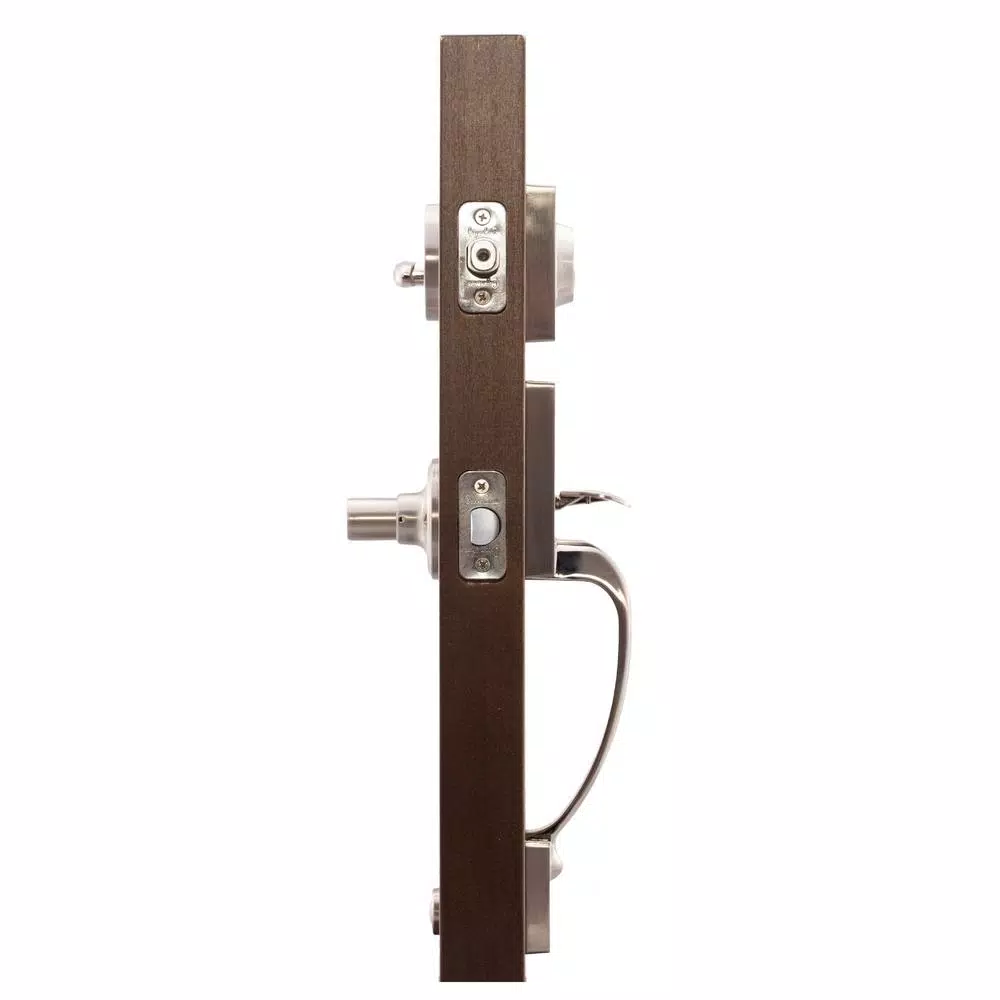

Elevate your home's curb appeal with this timeless Craftsman-style handleset featuring a sophisticated satin stainless finish. Designed for both style and security, this set includes a contemporary Zane lever interior trim and meets ANSI Grade 3 residential standards.
Elevate your home's curb appeal with this timeless Craftsman-style handleset featuring a sophisticated satin stainless finish. Designed for both style and security, this set includes a contemporary Zane lever interior trim and meets ANSI Grade 3 residential standards.
Door Handing
Universal
Interior / Exterior
Exterior
Minimum Door Thickness
1.375 in
Keyway
KW1
Security/ANSI Grade
ANSI Grade 3 (Good)
Door Lock Style
Modern
Backset Size
Adjustable
Deadbolt Strike
Round Corner
Hardware Finish Family
Stainless Steel
Door Locks & Knobs Product Type
Keyed Handlesets
Material
Steel
Keying Type
Keyed Different
Total Number of Keys Included
2
Lock Type
Keyed Entry
Electronic / Mechanical
Mechanical
Knob / Lever Strike
Round Corner
Included
No additional items included
Application Type
Entry
Deadbolt Type
Single Cylinder Deadbolt
Finish
Satin Stainless
Commercial/Residential
Residential
Lever Style
Straight
Handleset Product Type
2 Piece Front & Back
Knob / Lever Housing Width
2.875 in
Deadbolt Strike Width
1 in
Outside Key Plate Width
2.625 in
Outside Bottom Handle Plate Length
2.5 in
Inside Top Plate Length
1 in
Knob / Lever Bore Hole Diameter
2.125 in
Deadbolt Throw Length
1 in
Outside Key Plate Length
1 in
Handle Grip Length
13.8 in
Inside Top Plate Width
1 in
Deadbolt Strike Height
2.25 in
Outside Top Handle Plate Length
2.5 in
Knob / Lever Strike Height
2.25 in
Knob / Lever Throw Length
0.75 in
Knob / Lever Strike Width
1 in
Assembled Depth
3.75 in
Lever Grip Length
4 in
Deadbolt Bore Hole Diameter
1 in
Deadbolt Trim Ring Diameter
2.5625 in
Outside Top Handle Plate Width
2.625 in
Outside Bottom Handle Plate Width
1.5 in
Deadbolt Cross Bore Diameter
2.125 in
Assembled Width
2.875 in
Maximum Door Thickness
1.75 in
Projection
2.5 in
Knob / Lever Cross Bore Diameter
2.125 in
Knob / Lever Housing Height
4.5 in
Assembled Height
16.5 in
Dimensions
19 × 6.33 × 3.5 in
Weight
3.43 lbs
