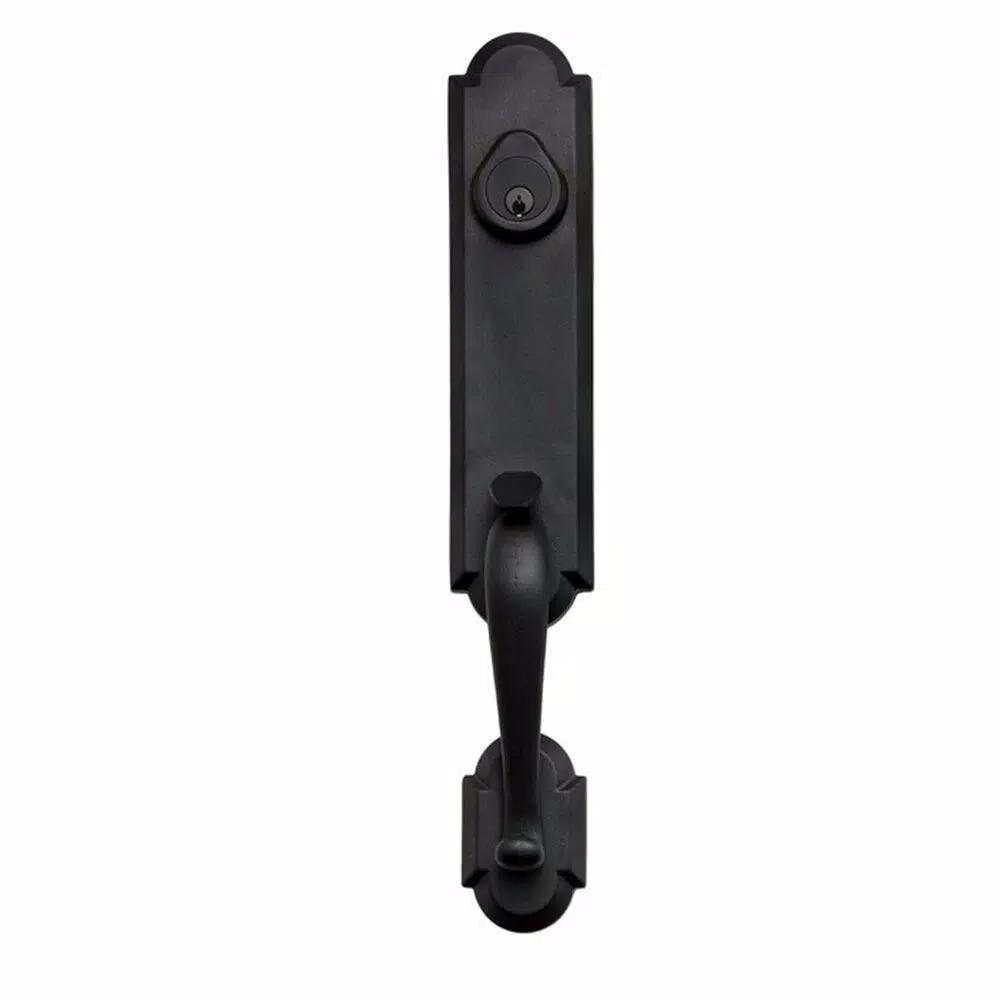

Enhance your entryway with the rustic elegance of the Delaney Sandcast Collection, featuring a bold Aged Black finish. This interconnected handleset provides quick egress by automatically retracting the deadbolt when the lower inside knob is turned. Built with heavy-duty metal construction, it offers durable workmanship and a vintage aesthetic for any residential door.
Enhance your entryway with the rustic elegance of the Delaney Sandcast Collection, featuring a bold Aged Black finish. This interconnected handleset provides quick egress by automatically retracting the deadbolt when the lower inside knob is turned. Built with heavy-duty metal construction, it offers durable workmanship and a vintage aesthetic for any residential door.
Door Handing
Universal
Interior / Exterior
Interior/Exterior
Minimum Door Thickness
1.375 in
Security/ANSI Grade
ANSI Grade 3
Features
Easy Installation, Adjustable Backset
Door Lock Style
Rustic
Backset Size
Adjustable
Deadbolt Strike
Round Corner
Hardware Finish Family
Black
Door Locks & Knobs Product Type
Keyed Handlesets
Material
Metal
Keying Type
Keyed Alike
Total Number of Keys Included
2
Knob Style
Flat Ball
Lock Type
Keyed Entry
Electronic / Mechanical
Mechanical
Knob / Lever Strike
Round Corner
Included
Mounting Hardware, Hardware, Installation Instructions, Drilling Template
Application Type
Entry
Deadbolt Type
Single Cylinder Deadbolt
Finish
Black
Commercial/Residential
Residential
Handleset Product Type
1 Piece Front & Back
Knob / Lever Housing Width
3.0265 in
Deadbolt Strike Width
1.75 in
Knob / Lever Bore Hole Diameter
1 in
Outside Handle and Key Plate Width
3.0625 in
Deadbolt Throw Length
1 in
Handle Grip Length
13.5 in
Inside Plate Length
12.75 in
Deadbolt Strike Height
2.25 in
Knob / Lever Strike Height
2.25 in
Knob Diameter
2.125 in
Knob / Lever Throw Length
0.5 in
Knob / Lever Strike Width
1.75 in
Assembled Depth
7.25 in
Assembled Width
3.0625 in
Maximum Door Thickness
1.75 in
Outside Handle Plate On - Center Measurement
5.5 in
Projection
1 in
Outside Handle and Key Plate Length
19.75 in
Knob / Lever Cross Bore Diameter
2.125 in
Deadbolt Bore Hole Diameter
1 in
Deadbolt Trim Ring Diameter
3.0625 in
Deadbolt Cross Bore Diameter
2.125 in
Assembled Height
19.75 in
Inside Plate Width
3.0625 in
Dimensions
21 × 8.5 × 6 in
Weight
15 lbs
