Name: Delaney Kellington Delaney Satin Nickel Single Cylinder Deadbolt Entry Door Handleset
Brand: Delaney
Price: 93.66 USD
Availability: InStock

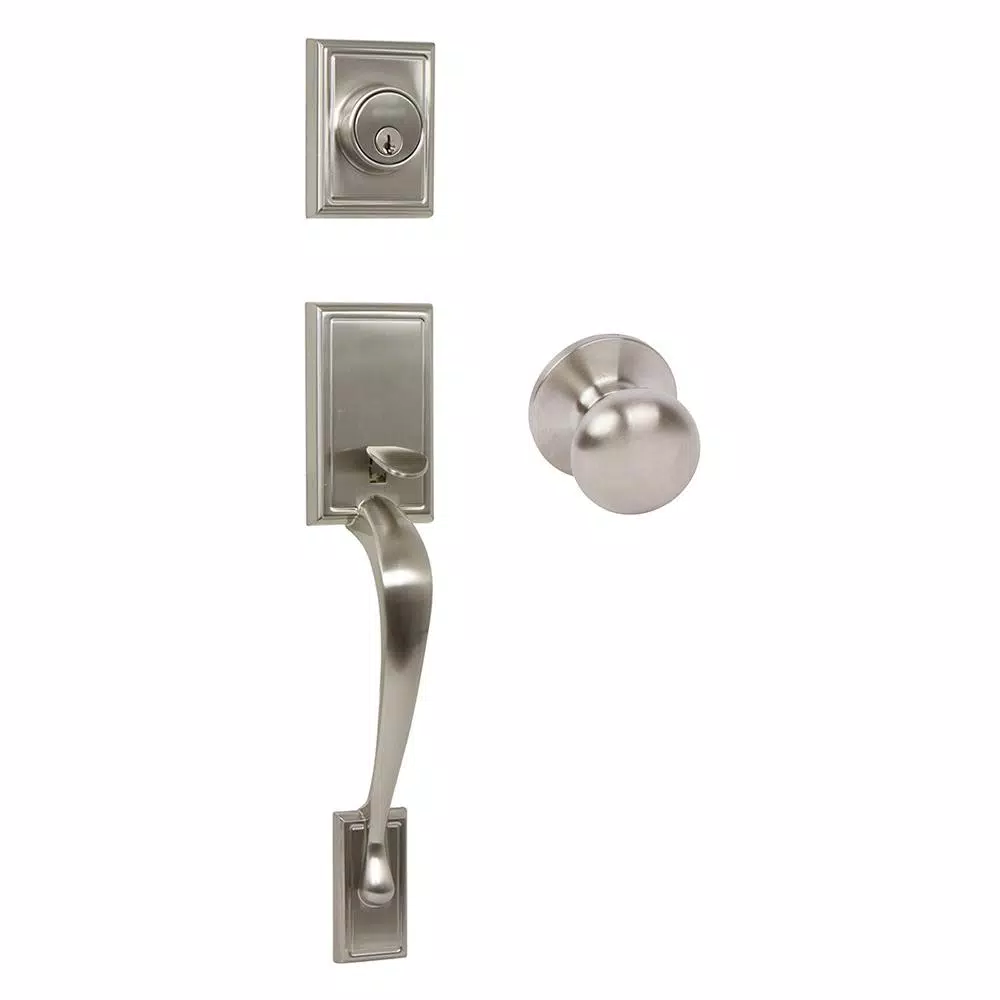

Elevate your home's curb appeal with the Kellington Delaney handleset, featuring a sophisticated satin nickel square design with precision curved bevels. This versatile set includes a single cylinder deadbolt and a universal round knob, designed to fit both left and right-hand swing doors. Engineered for both new construction and remodeling, it ensures a seamless installation on doors ranging from 1-3/8 to 1-3/4 inches thick.

Universal design fits both left-hand and right-hand swing doors for maximum versatility.
Includes a single cylinder deadbolt that can be locked via exterior key or interior thumb turn.
Split trim design accommodates both new construction and replacement/remodeling projects.
Adjustable latch and backset ensure compatibility with all standard door preparations.
Designed for easy installation using only a screwdriver; all mounting hardware and instructions included.
Fits standard residential door thicknesses from 1-3/8 in. to 1-3/4 in.
ANSI Grade 3 security rating provides reliable residential protection.
Features a limited lifetime mechanical warranty for long-term peace of mind.

Door Handing	Universal
Interior / Exterior	Interior/Exterior
Minimum Door Thickness	1.375 in
Security/ANSI Grade	ANSI Grade 3 (Good)
Features	Easy Installation, Adjustable Backset
Door Lock Style	Classic
Backset Size	Adjustable
Deadbolt Strike	Round Corner
Hardware Finish Family	Nickel
Door Locks & Knobs Product Type	Keyed Handlesets
Material	Zinc
Keying Type	Keyed Alike
Total Number of Keys Included	2
Knob Style	Flat Ball
Lock Type	Keyed Entry
Electronic / Mechanical	Mechanical
Knob / Lever Style	Round knob
Included	Mounting Hardware, Hardware, Installation Instructions, Drilling Template, Self Guiding Screws
Application Type	Entry
Deadbolt Type	Single Cylinder Deadbolt
Finish	Satin Nickel
Commercial/Residential	Residential
Handleset Product Type	2 Piece Front & Back
Knob / Lever Housing Width	2 in
Deadbolt Strike Width	1 in
Outside Key Plate Width	2.5 in
Outside Bottom Handle Plate Length	11.5625 in
Inside Top Plate Length	2.5 in
Knob / Lever Bore Hole Diameter	1 in
Deadbolt Throw Length	1 in
Outside Key Plate Length	2.5 in
Handle Grip Length	8.41 in
Inside Top Plate Width	2.5 in
Deadbolt Strike Height	2.25 in
Outside Top Handle Plate Length	2.5 in
Knob / Lever Strike Height	2.25 in
Knob Diameter	2.25 in
Knob / Lever Throw Length	0.5 in
Knob / Lever Strike Width	1.75 in
Assembled Depth	3 in
Deadbolt Bore Hole Diameter	2.13 in
Deadbolt Trim Ring Diameter	1 in
Outside Top Handle Plate Width	2.5 in
Outside Bottom Handle Plate Width	1.5625 in
Deadbolt Cross Bore Diameter	2.125 in
Assembled Width	2.625 in
Maximum Door Thickness	1.75 in
Projection	2.14 in
Knob / Lever Cross Bore Diameter	2.125 in
Knob / Lever Housing Height	2.5625 in
Assembled Height	11.5625 in
Weight	2 lbs
Length	12 in
Width	6 in
Height	4 in
