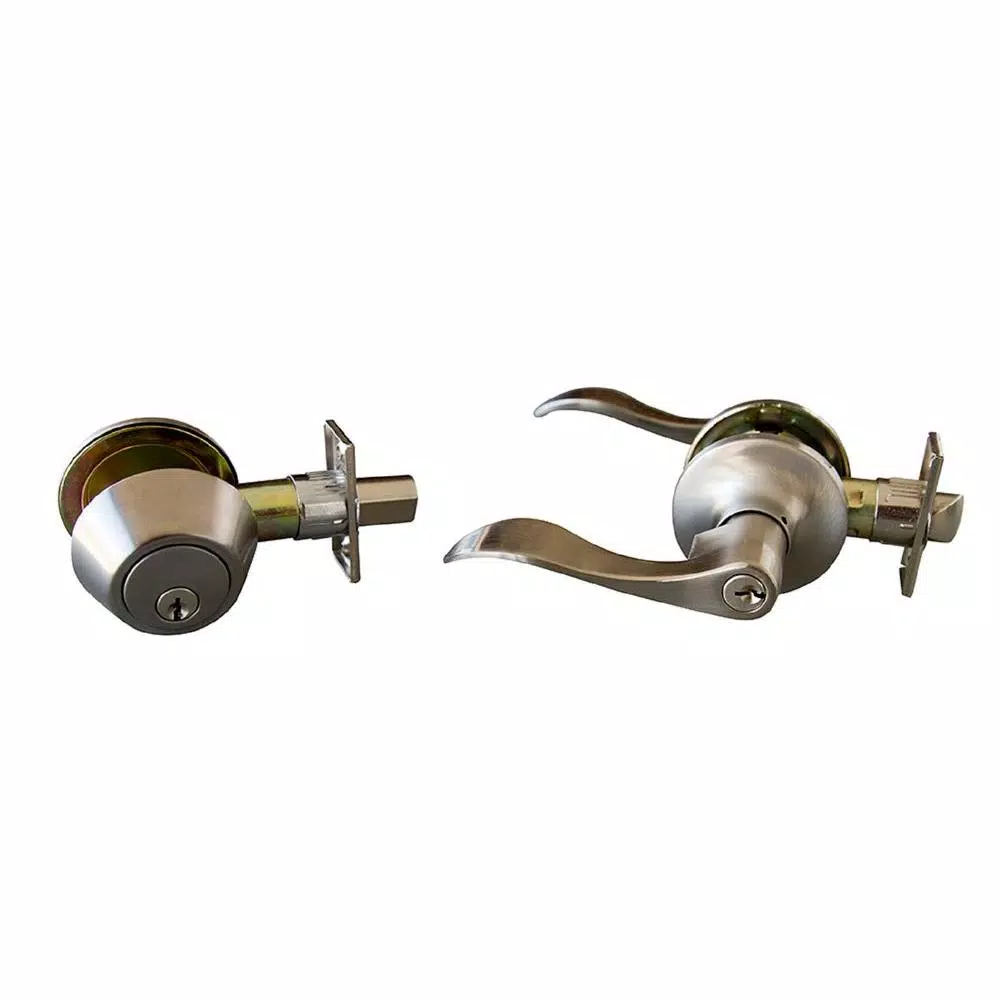

Enhance your home security with this ANSI Grade-3 certified entry lever and deadbolt combo, featuring anti-bump pins for added protection. The versatile design fits both left and right-handed doors and adjusts to common 2-3/4 in. and 2-3/8 in. backsets. Finished in elegant satin nickel, this durable steel hardware set is perfect for both front and back door applications.
Enhance your home security with this ANSI Grade-3 certified entry lever and deadbolt combo, featuring anti-bump pins for added protection. The versatile design fits both left and right-handed doors and adjusts to common 2-3/4 in. and 2-3/8 in. backsets. Finished in elegant satin nickel, this durable steel hardware set is perfect for both front and back door applications.
Door Handing
Universal
Interior / Exterior
Interior/Exterior
Minimum Door Thickness
1.375 in
Keyway
KW1
Security/ANSI Grade
ANSI Grade 3
Door Lock Style
Classic
Backset Size
Adjustable
Lever Material
Steel
Number of Pins
5
Deadbolt Strike
Round Corner
Hardware Finish Family
Nickel
Door Locks & Knobs Product Type
Keyed Levers
Material
Steel
Combo Pack
Non-Combo
Total Number of Keys Included
2
Lock Type
Keyed Entry
Electronic / Mechanical
Mechanical
Knob / Lever Strike
Round Corner
Single or Double Cylinder Deadbolt
Single
Application Type
Entry
Deadbolt Type
Single Cylinder Deadbolt
Finish
Nickel
Commercial/Residential
Residential
Lever Style
Wave
Knob / Lever Housing Width
2.5 in
Deadbolt Strike Width
0.625 in
Knob / Lever Bore Hole Diameter
0.94 in
Deadbolt Throw Length
1 in
Deadbolt Strike Height
0.75 in
Knob / Lever Strike Height
0.75 in
Knob / Lever Throw Length
0.5 in
Knob / Lever Strike Width
0.625 in
Assembled Depth
12.4 in
Lever Grip Length
4.5 in
Deadbolt Bore Hole Diameter
2.09 in
Deadbolt Trim Ring Diameter
2.5 in
Deadbolt Cross Bore Diameter
0.94 in
Assembled Width
2.8217 in
Maximum Door Thickness
1.75 in
Cross Bore Diameter
0.94 in
Projection
1.9375 in
Knob / Lever Housing Height
2.5 in
Assembled Height
9.845 in
Dimensions
12.9 × 3.32 × 10.35 in
Weight
2.46 lbs
