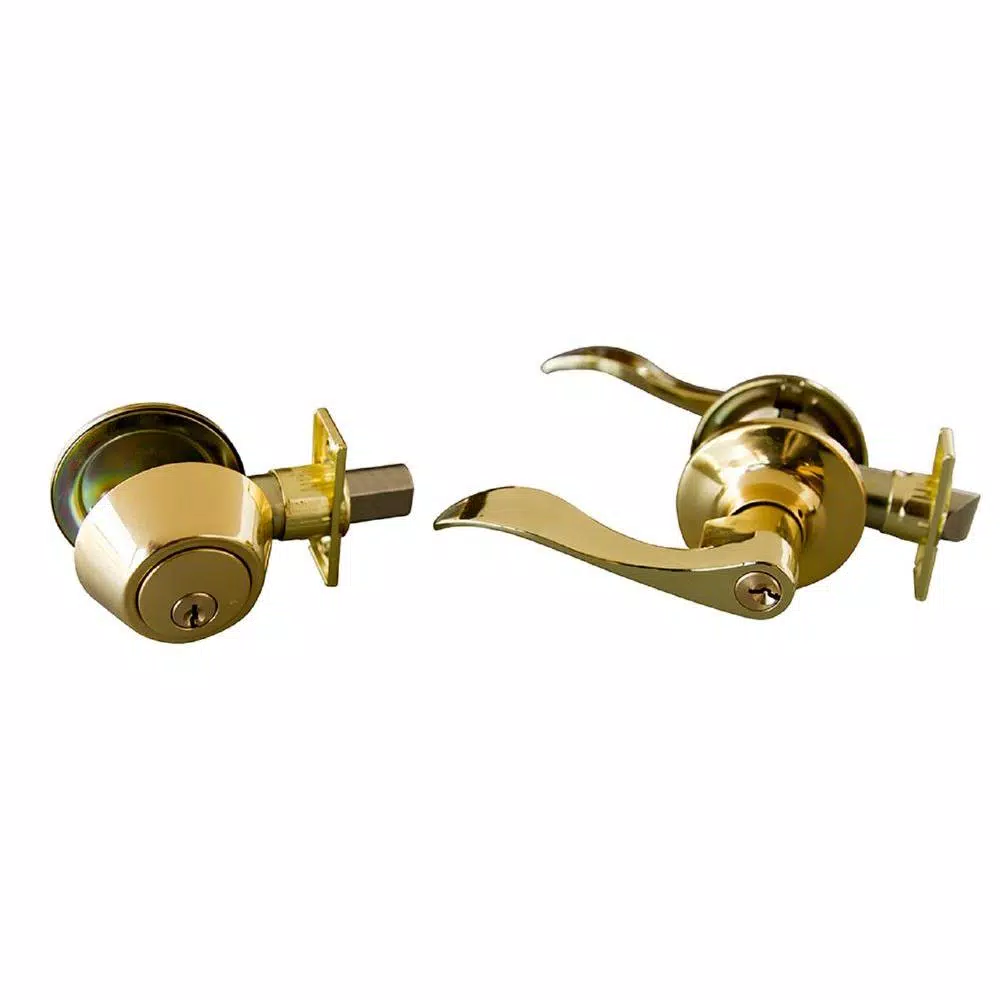

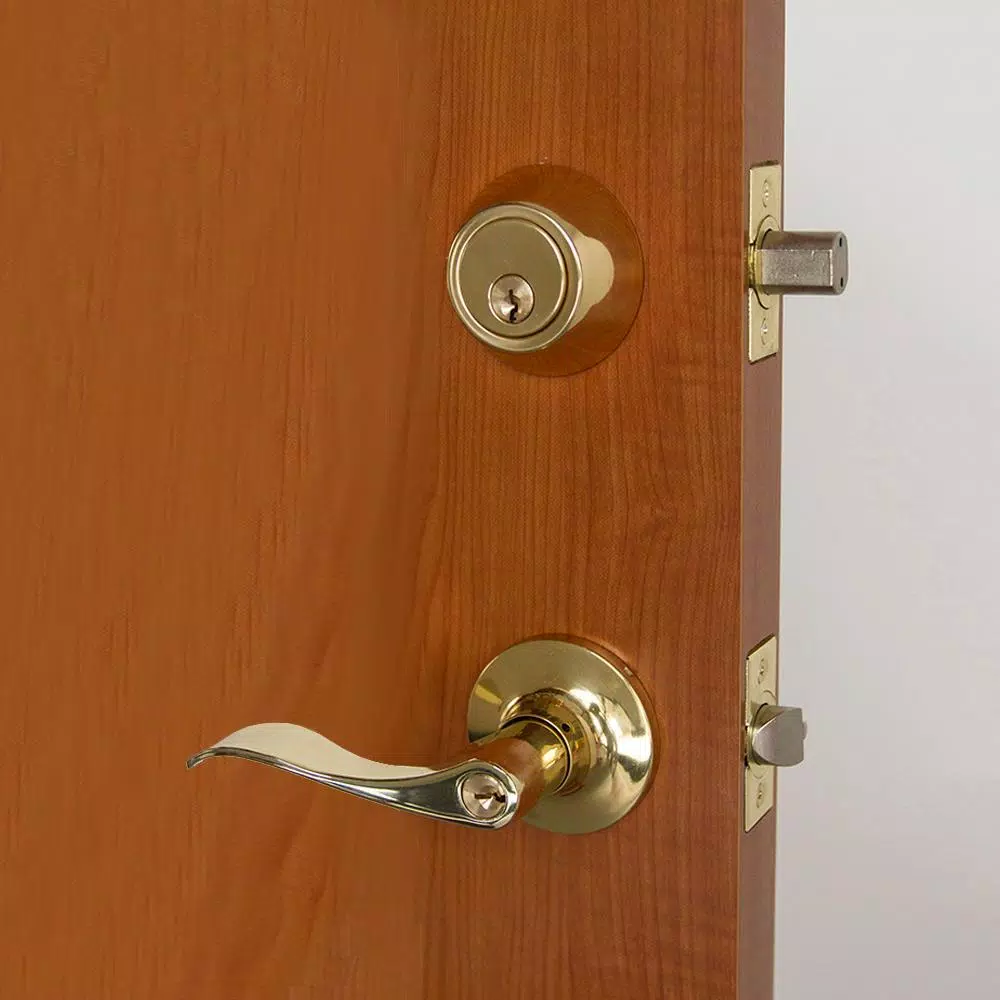

Enhance your home's security and style with this polished brass entry lever and deadbolt combo, featuring anti-bump pins for added protection. Designed for universal fit, it accommodates both left and right-handed doors and adjusts to two common backsets for easy installation.
Enhance your home's security and style with this polished brass entry lever and deadbolt combo, featuring anti-bump pins for added protection. Designed for universal fit, it accommodates both left and right-handed doors and adjusts to two common backsets for easy installation.
| Door Handing | Universal |
| Interior / Exterior | Interior/Exterior |
| Minimum Door Thickness | 1.375 in |
| Keyway | KW1 |
| Security/ANSI Grade | ANSI Grade 3 |
| Door Lock Style | Classic |
| Backset Size | Adjustable |
| Lever Material | Brass |
| Number of Pins | 5 |
| Deadbolt Strike | Round Corner |
| Hardware Finish Family | Brass |
| Door Locks & Knobs Product Type | Keyed Levers |
| Total Number of Keys Included | 2 |
| Lock Type | Keyed Entry |
| Electronic / Mechanical | Mechanical |
| Knob / Lever Strike | Round Corner |
| Included | Hardware, Installation Instructions, Drilling Template |
| Single or Double Cylinder Deadbolt | Single |
| Application Type | Entry |
| Deadbolt Type | Single Cylinder Deadbolt |
| Finish | Polished Brass |
| Commercial/Residential | Residential |
| Lever Style | Wave |
| Knob / Lever Housing Width | 2.5 in |
| Deadbolt Strike Width | 0.625 in |
| Knob / Lever Bore Hole Diameter | 0.94 in |
| Deadbolt Throw Length | 1 in |
| Deadbolt Strike Height | 0.75 in |
| Knob / Lever Strike Height | 0.75 in |
| Knob / Lever Throw Length | 0.5 in |
| Knob / Lever Strike Width | 0.625 in |
| Assembled Depth | 12.4 in |
| Lever Grip Length | 4.5 in |
| Deadbolt Bore Hole Diameter | 2.09 in |
| Deadbolt Trim Ring Diameter | 2.5 in |
| Deadbolt Cross Bore Diameter | 0.94 in |
| Assembled Width | 2.8217 in |
| Maximum Door Thickness | 1.75 in |
| Cross Bore Diameter | 0.94 in |
| Projection | 1.9375 in |
| Knob / Lever Housing Height | 2.5 in |
| Assembled Height | 9.845 in |
| Weight | 2.34 lbs |
| Length | 12.9 in |
| Width | 3.32 in |
| Height | 10.35 in |
