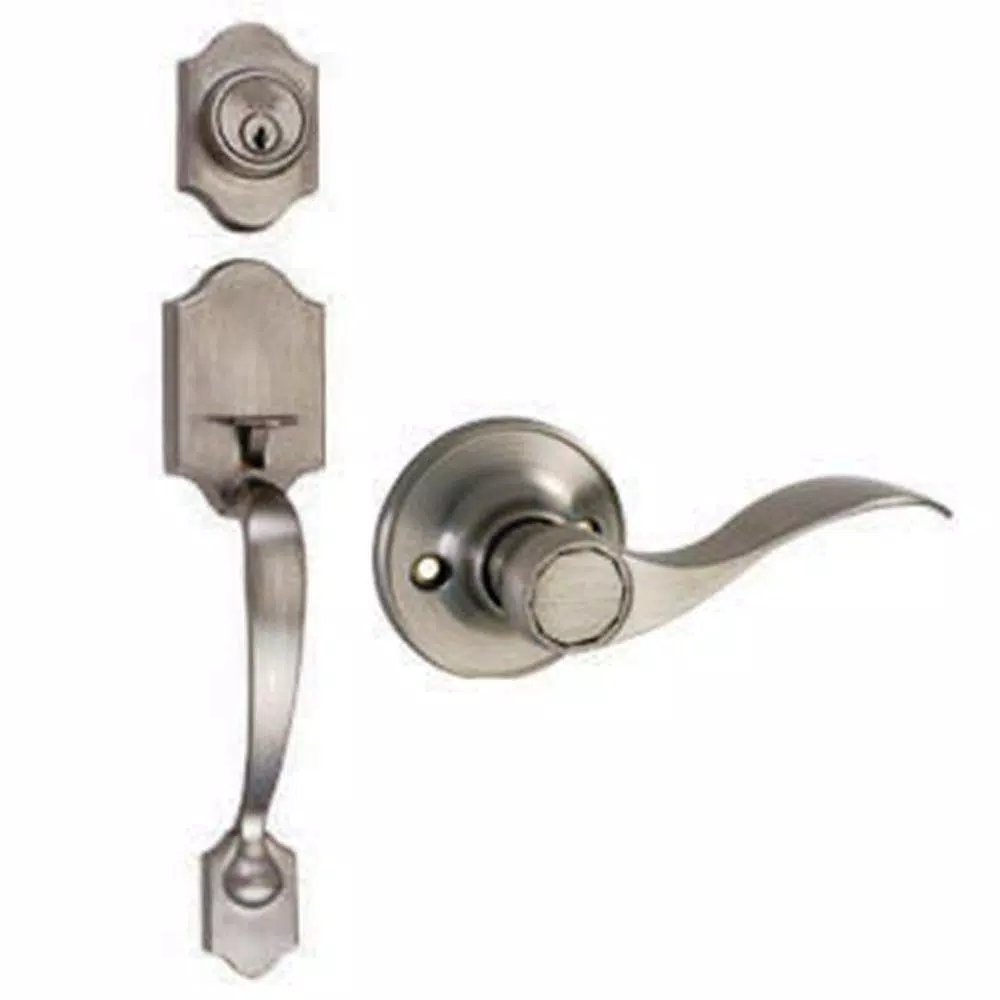

Enhance your home's curb appeal and security with this elegant satin nickel entry handleset featuring a Springdale wave lever. Designed for residential use, this ANSI Grade 3 certified set offers reliable protection with anti-bump technology and a high-security 5-pin keyway.
Enhance your home's curb appeal and security with this elegant satin nickel entry handleset featuring a Springdale wave lever. Designed for residential use, this ANSI Grade 3 certified set offers reliable protection with anti-bump technology and a high-security 5-pin keyway.
| Door Handing | Universal |
| Interior / Exterior | Interior/Exterior |
| Minimum Door Thickness | 1.375 in |
| Keyway | KW1 |
| Security/ANSI Grade | ANSI Grade 3 |
| Door Lock Style | Classic |
| Features | Easy Installation, Adjustable Backset |
| Backset Size | Adjustable |
| Deadbolt Strike | Round Corner |
| Hardware Finish Family | Nickel |
| Door Locks & Knobs Product Type | Keyed Handlesets |
| Material | Steel |
| Keying Type | Keyed Alike |
| Total Number of Keys Included | 2 |
| Lock Type | Keyed Entry |
| Electronic / Mechanical | Mechanical |
| Knob / Lever Strike | Round Corner |
| Included | Hardware, Installation Instructions, Drilling Template |
| Application Type | Entry |
| Deadbolt Type | Single Cylinder Deadbolt |
| Finish | Satin Nickel |
| Commercial/Residential | Residential |
| Lever Style | Wave |
| Handleset Product Type | 2 Piece Front & Back |

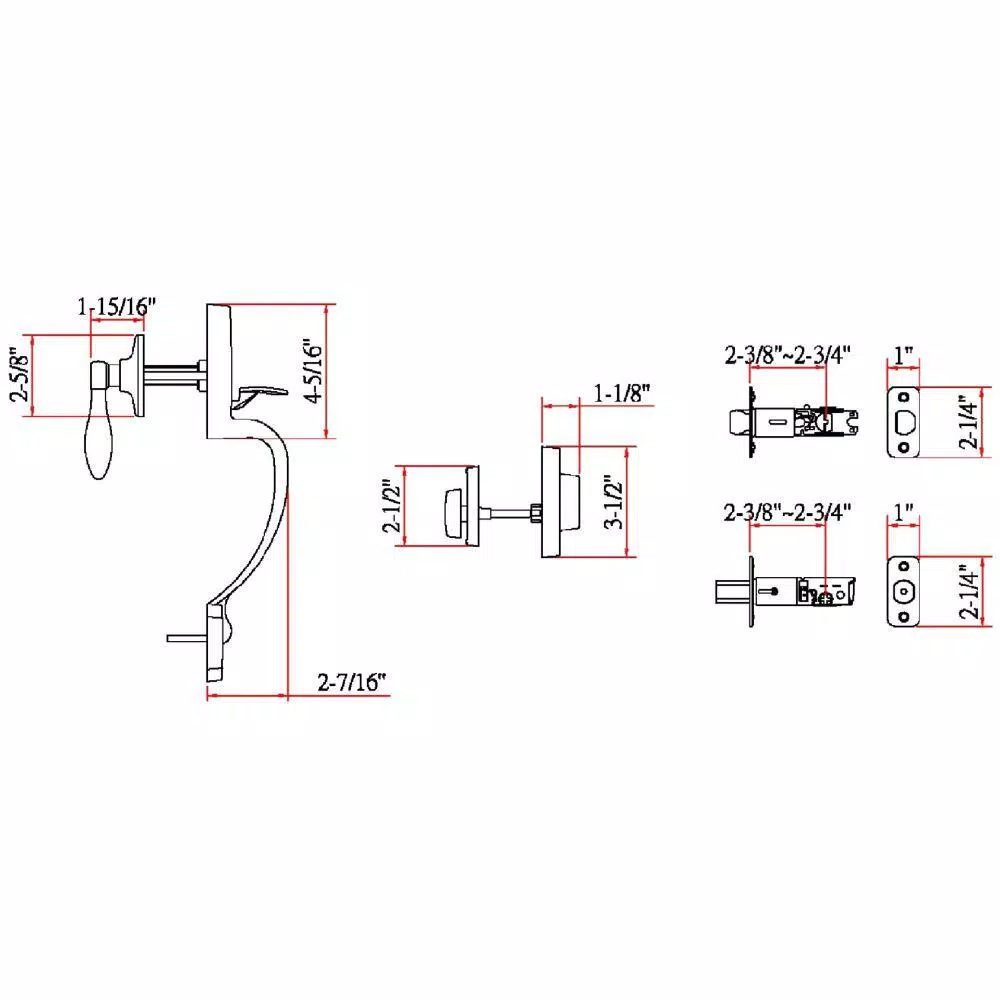

| Knob / Lever Housing Width | 2.94 in |
| Deadbolt Strike Width | 1 in |
| Outside Key Plate Width | 2.375 in |
| Outside Bottom Handle Plate Length | 2.5 in |
| Inside Top Plate Length | 3.375 in |
| Knob / Lever Bore Hole Diameter | 2.09 in |
| Deadbolt Bore Hole Diameter | 2.09 in |
| Deadbolt Trim Ring Diameter | 2.5 in |
| Outside Top Handle Plate Length | 3.375 in |
| Handle Grip Length | 12.5 in |
| Inside Top Plate Width | 2.625 in |
| Deadbolt Strike Height | 2.25 in |
| Knob / Lever Strike Height | 2.25 in |
| Knob / Lever Strike Width | 1 in |
| Outside Key Plate Length | 3.5 in |
| Assembled Depth | 2.38 in |
| Lever Grip Length | 5 in |
| Deadbolt Throw Length | 1 in |
| Outside Top Handle Plate Width | 2.625 in |
| Outside Bottom Handle Plate Width | 1.625 in |
| Deadbolt Cross Bore Diameter | 0.94 in |
| Assembled Width | 6.5 in |
| Maximum Door Thickness | 1.75 in |
| Projection | 2.438 in |
| Knob / Lever Cross Bore Diameter | 0.94 in |
| Knob / Lever Housing Height | 2.94 in |
| Assembled Height | 16.63 in |
| Weight | 3.28 lbs |
| Length | 7.25 in |
| Width | 5.13 in |
| Height | 17 in |
