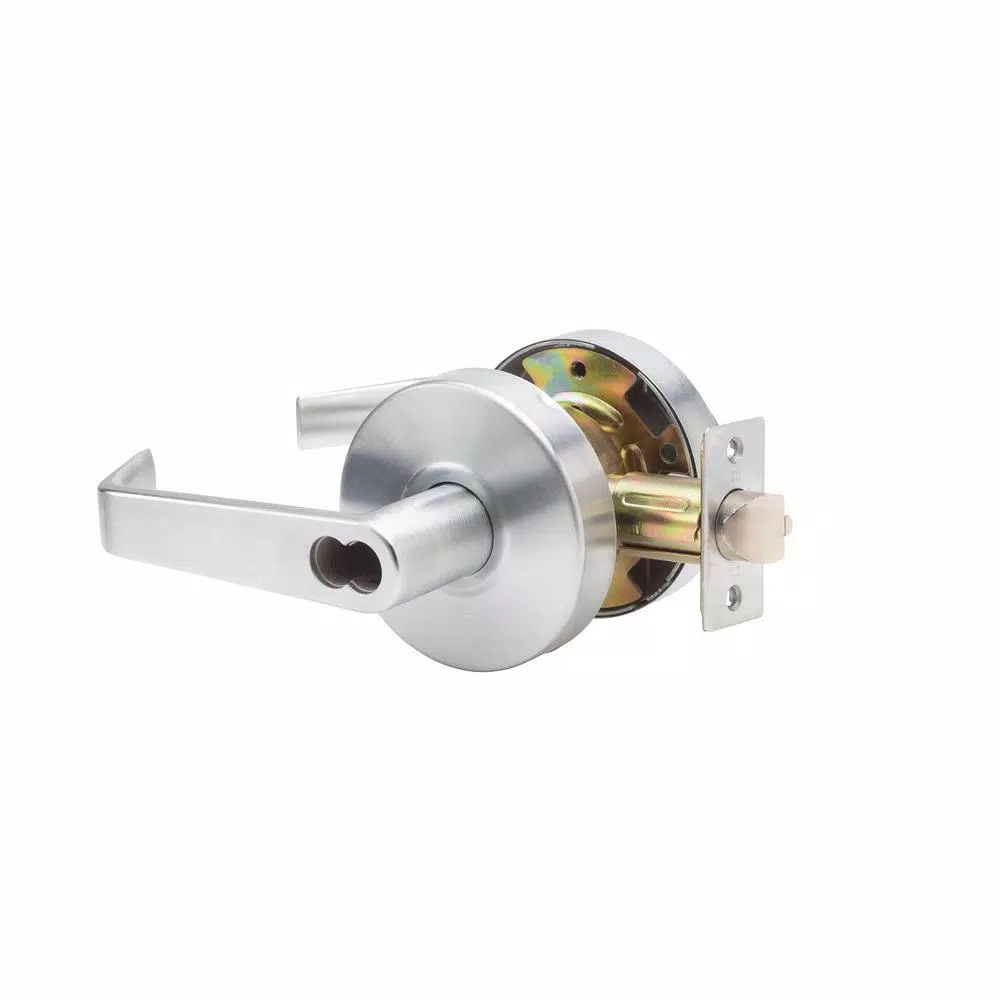

This ADA-compliant commercial entry lever features a freewheeling clutch mechanism for enhanced security and long-lasting durability. Designed for versatility, the lever is prepared for small format interchangeable core installation and includes an SC1 solid brass keyway.
This ADA-compliant commercial entry lever features a freewheeling clutch mechanism for enhanced security and long-lasting durability. Designed for versatility, the lever is prepared for small format interchangeable core installation and includes an SC1 solid brass keyway.
Door Handing
Universal
Interior / Exterior
Interior/Exterior
Minimum Door Thickness
1.375 in
Maximum Door Thickness
1.875 in
Keyway
C
Security/ANSI Grade
ANSI Grade 2
Door Lock Style
Modern
Backset Size
2.75 in
Lever Material
Steel
Strike
Round corner
Number of Pins
6
Hardware Finish Family
Chrome
Door Locks & Knobs Product Type
Keyed Levers
Material
Steel
Combo Pac
Non-Combo
Total Number of Keys Included
2
Included
Hardware, Installation Instructions
Wired or Wireless
No electrical connectivity
Application Type
Entry
Finish
Brushed Chrome
Commercial/Residential
Commercial
Lever Style
Straight
Housing Width
3.5 in
Housing Height
3.5 in
Assembled Depth
3 in
Lever Grip Length
5.5 in
Strike Height
4.875 in
Strike Width
1.25 in
Assembled Width
6.5 in
Cross Bore Diameter
2.2 in
Throw Length
2.75 in
Projection
2.75 in
Assembled Height
3.5 in
Bore Hole Diameter
2.2 in
Dimensions
3 × 6.5 × 3.5 in
Weight
3.22 lbs
