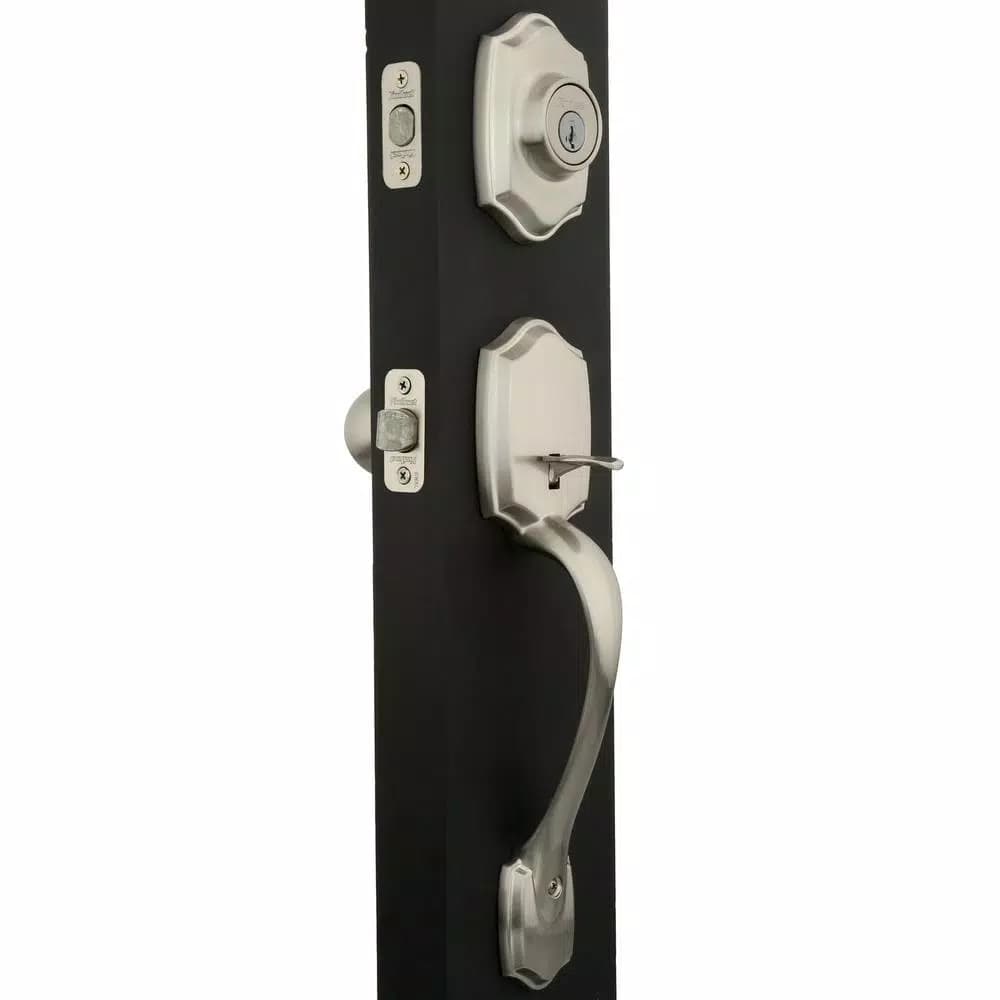

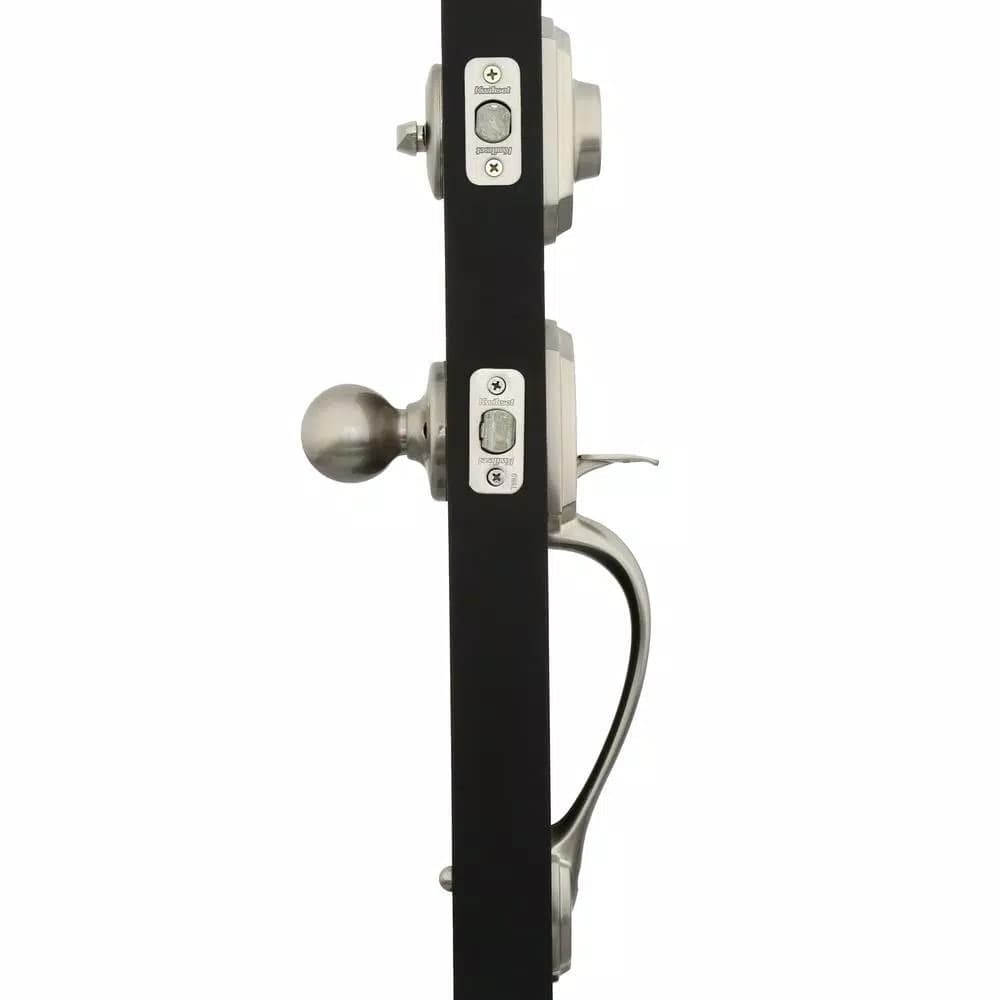

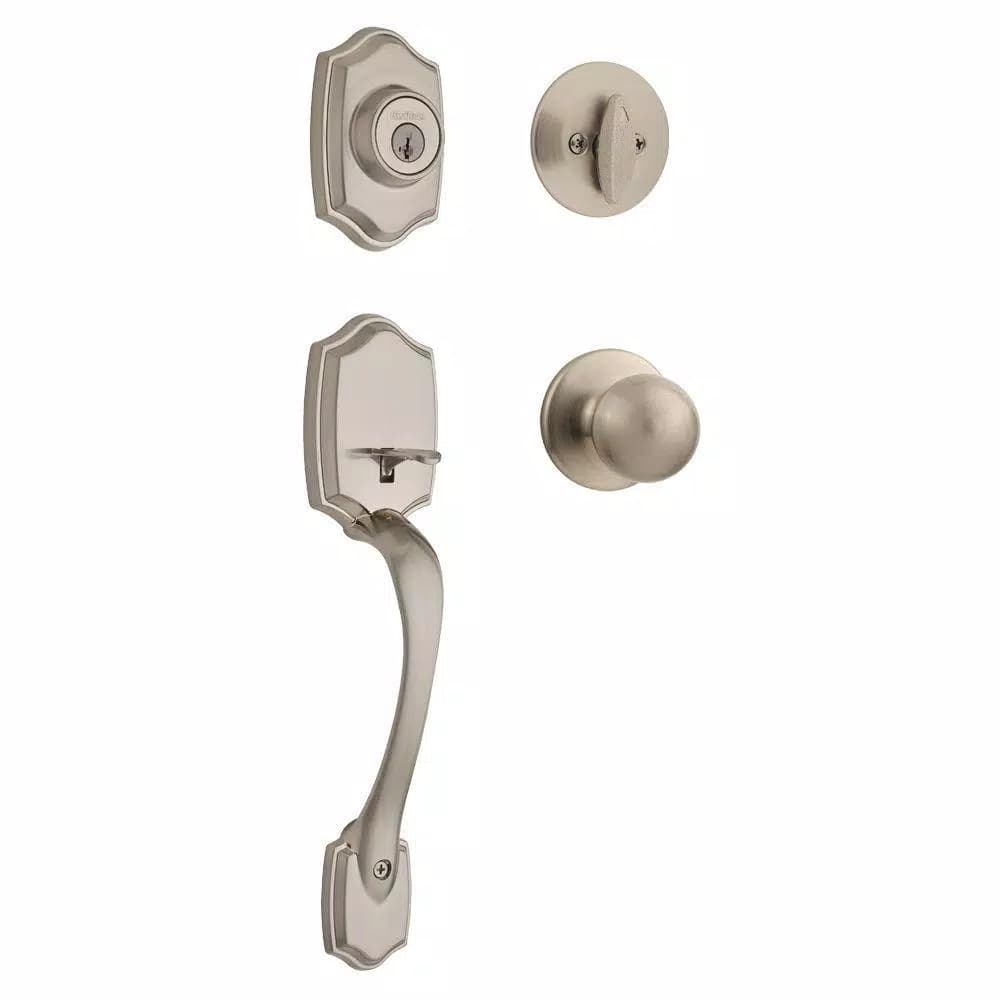

Enhance your home's elegance with the Belleview handleset, featuring a sophisticated beveled design and a modern Satin Nickel finish. Equipped with SmartKey Security, you can re-key your lock in seconds, providing unmatched peace of mind and control over home access.
Enhance your home's elegance with the Belleview handleset, featuring a sophisticated beveled design and a modern Satin Nickel finish. Equipped with SmartKey Security, you can re-key your lock in seconds, providing unmatched peace of mind and control over home access.
Door Handing
Universal
Interior / Exterior
Exterior
Minimum Door Thickness
1.75 in
Security/ANSI Grade
ANSI Grade 3 (Good)
Features
Easy Installation
Door Lock Style
Classic
Backset Size
Adjustable
Deadbolt Strike
Round Corner
Tools / Hardware Collections
Kwikset SmartKey
Hardware Finish Family
Nickel
Door Locks & Knobs Product Type
Keyed Handlesets
Material
Metal
Keying Type
Keyed Different
Total Number of Keys Included
2
Knob Style
Full ball
Lock Type
Keyed Entry
Electronic / Mechanical
Mechanical
Knob / Lever Strike
Round Corner
Included
Hardware, Installation Instructions
Application Type
Entry
Deadbolt Type
Single Cylinder Deadbolt
Finish
Satin Nickel
Commercial/Residential
Residential
Handleset Product Type
2 Piece Front & Back
Knob / Lever Housing Width
2.625 in
Deadbolt Strike Width
1 in
Outside Key Plate Width
1.0 in
Outside Bottom Handle Plate Length
1.0 in
Inside Top Plate Length
1.0 in
Knob / Lever Bore Hole Diameter
2.125 in
Deadbolt Throw Length
1.0 in
Outside Key Plate Length
1.0 in
Handle Grip Length
1.0 in
Inside Top Plate Width
1.0 in
Deadbolt Strike Height
2.25 in
Outside Top Handle Plate Length
1.0 in
Knob / Lever Strike Height
2.25 in
Knob Diameter
1.875 in
Knob / Lever Throw Length
0.5 in
Knob / Lever Strike Width
1 in
Assembled Depth
2.15625 in
Assembled Width
2.931 in
Maximum Door Thickness
1.75 in
Projection
2.15 in
Knob / Lever Cross Bore Diameter
1.0 in
Knob / Lever Housing Height
2.625 in
Assembled Height
18.06 in
Deadbolt Bore Hole Diameter
1 in
Deadbolt Trim Ring Diameter
3 in
Outside Top Handle Plate Width
1.0 in
Outside Bottom Handle Plate Width
1.0 in
Deadbolt Cross Bore Diameter
2.125 in
Dimensions
22.25 × 8 × 5.5 in
Weight
3 lbs
