Elevate your home's curb appeal with the Kwikset Signature Series Camino handleset, featuring a bold geometric design and a modern Satin Nickel finish. This ANSI Grade 1 certified security set includes SmartKey Security technology, allowing you to re-key your lock in seconds for ultimate peace of mind.
Elevate your home's curb appeal with the Kwikset Signature Series Camino handleset, featuring a bold geometric design and a modern Satin Nickel finish. This ANSI Grade 1 certified security set includes SmartKey Security technology, allowing you to re-key your lock in seconds for ultimate peace of mind.
| Door Handing | Universal |
| Interior / Exterior | Interior/Exterior |
| Minimum Door Thickness | 1.75 in |
| Keyway | KW1 |
| Security/ANSI Grade | ANSI Grade 1 (Best) |
| Door Lock Style | Classic |
| Backset Size | Adjustable |
| Hardware Finish Family | Nickel |
| Door Locks & Knobs Product Type | Keyed Handlesets |
| Material | Metal |
| Keying Type | Keyed Different |
| Total Number of Keys Included | 2 |
| Lock Type | Keyed Entry |
| Electronic / Mechanical | Mechanical |
| Knob / Lever Strike | Round Corner |

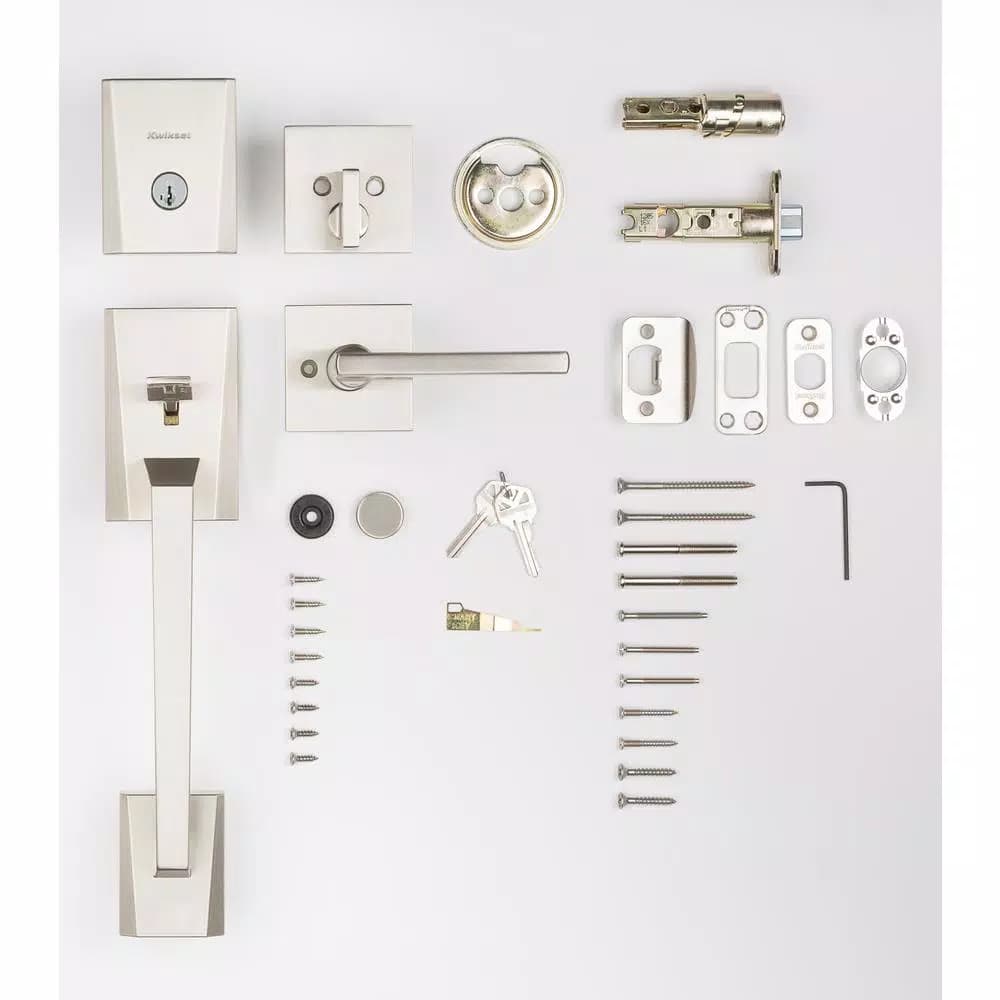

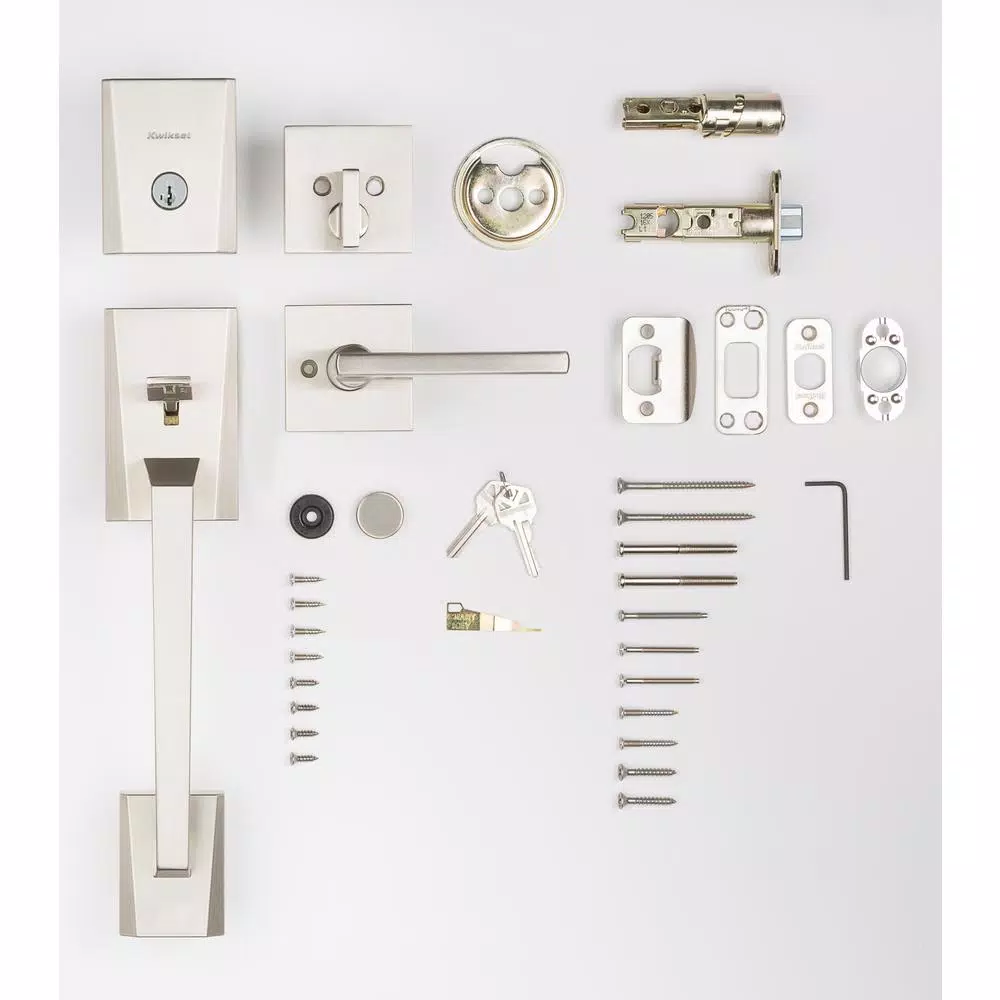

| Included | Hardware, Installation Instructions |
| Application Type | Entry |
| Deadbolt Type | Single Cylinder Deadbolt |
| Finish | Satin Nickel |
| Commercial/Residential | Residential |
| Lever Style | Straight |
| Handleset Product Type | 2 Piece Front & Back |
| Knob / Lever Housing Width | 2.625 in |
| Deadbolt Strike Width | 1 in |
| Outside Key Plate Width | 2.78 in |
| Outside Bottom Handle Plate Length | 3 in |
| Inside Top Plate Length | 4.44 in |
| Knob / Lever Bore Hole Diameter | 1 in |
| Deadbolt Throw Length | 1 in |
| Outside Key Plate Length | 3.59 in |
| Handle Grip Length | 5.6 in |
| Inside Top Plate Width | 2.63 in |
| Deadbolt Strike Height | 2.25 in |
| Outside Top Handle Plate Length | 4.44 in |
| Knob / Lever Strike Height | 2.25 in |
| Knob / Lever Throw Length | 0.5 in |
| Knob / Lever Strike Width | 1.75 in |
| Assembled Depth | 2.94 in |
| Lever Grip Length | 4.47 in |
| Deadbolt Bore Hole Diameter | 1 in |
| Deadbolt Trim Ring Diameter | 2.625 in |
| Outside Top Handle Plate Width | 2.78 in |
| Outside Bottom Handle Plate Width | 2.19 in |
| Deadbolt Cross Bore Diameter | 2.125 in |
| Assembled Width | 2.78 in |
| Maximum Door Thickness | 1.75 in |
| Projection | 2.94 in |
| Knob / Lever Cross Bore Diameter | 2.125 in |
| Knob / Lever Housing Height | 2.625 in |
| Assembled Height | 17.91 in |
| Weight | 6.55 lbs |
| Length | 5.7 in |
| Width | 8.1 in |
| Height | 21.7 in |
