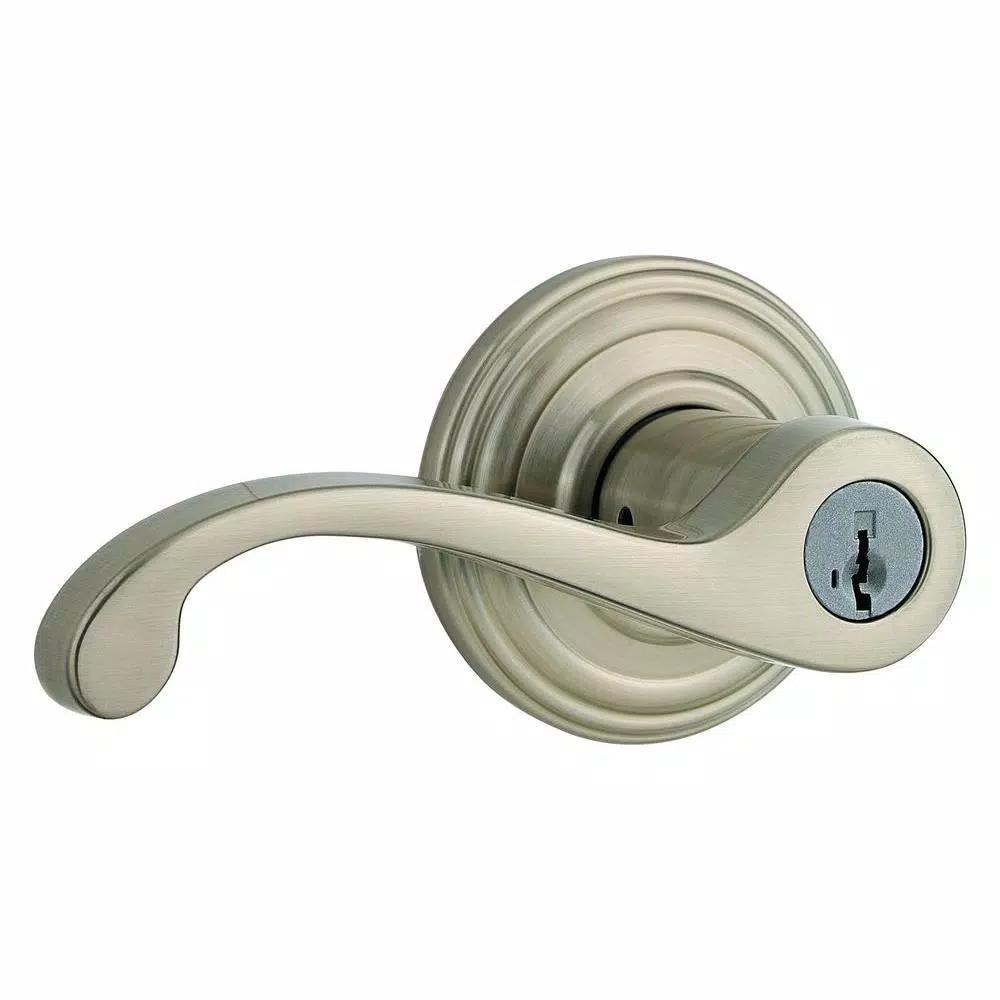

Elevate your home's entrance with the Kwikset Signature Series Commonwealth lever, featuring elegant curved lines and a modern Satin Nickel finish. Equipped with SmartKey Security, you can re-key your lock in seconds to maintain total control over home access. This ANSI Grade 2 rated lever provides superior residential security and includes Microban antimicrobial protection for a cleaner home.
Elevate your home's entrance with the Kwikset Signature Series Commonwealth lever, featuring elegant curved lines and a modern Satin Nickel finish. Equipped with SmartKey Security, you can re-key your lock in seconds to maintain total control over home access. This ANSI Grade 2 rated lever provides superior residential security and includes Microban antimicrobial protection for a cleaner home.
| Door Handing | Universal |
| Interior / Exterior | Interior/Exterior |
| Minimum Door Thickness | 1.375 in |
| Keyway | KW1 |
| Security/ANSI Grade | ANSI Grade 2 |
| Features | Easy Installation, Adjustable Backset, Kwikset SmartKey |
| Door Lock Style | Classic |
| Backset Size | Adjustable |
| Lever Material | Metal |
| Strike | Round corner |
| Number of Pins | 0.0 |
| Tools / Hardware Collections | Kwikset SmartKey |
| Hardware Finish Family | Nickel |
| Door Locks & Knobs Product Type | Keyed Levers |
| Material | Metal |
| Combo Pac | Non-Combo |
| Total Number of Keys Included | 2 |
| Lock Type | Keyed Entry |
| Electronic / Mechanical | Mechanical |
| Included | Hardware, Installation Instructions, Drilling Template |
| Wired or Wireless | No electrical connectivity |
| Application Type | Entry |
| Finish | Satin Nickel |
| Commercial/Residential | Residential |
| Lever Style | Wave |
| Housing Width | 2.637 in |
| Housing Height | 2.625 in |
| Assembled Depth | 2.4375 in |
| Lever Grip Length | 4.21875 in |
| Strike Height | 2.25 in |
| Strike Width | 1.0 in |
| Assembled Width | 4.21875 in |
| Maximum Door Thickness | 1.75 in |
| Cross Bore Diameter | 2.125 in |
| Throw Length | 0.5 in |
| Projection | 2.4375 in |
| Assembled Height | 2.625 in |
| Bore Hole Diameter | 1.0 in |
| Weight | 2.148 lbs |
| Length | 7.5 in |
| Width | 6.25 in |
| Height | 3.13 in |
