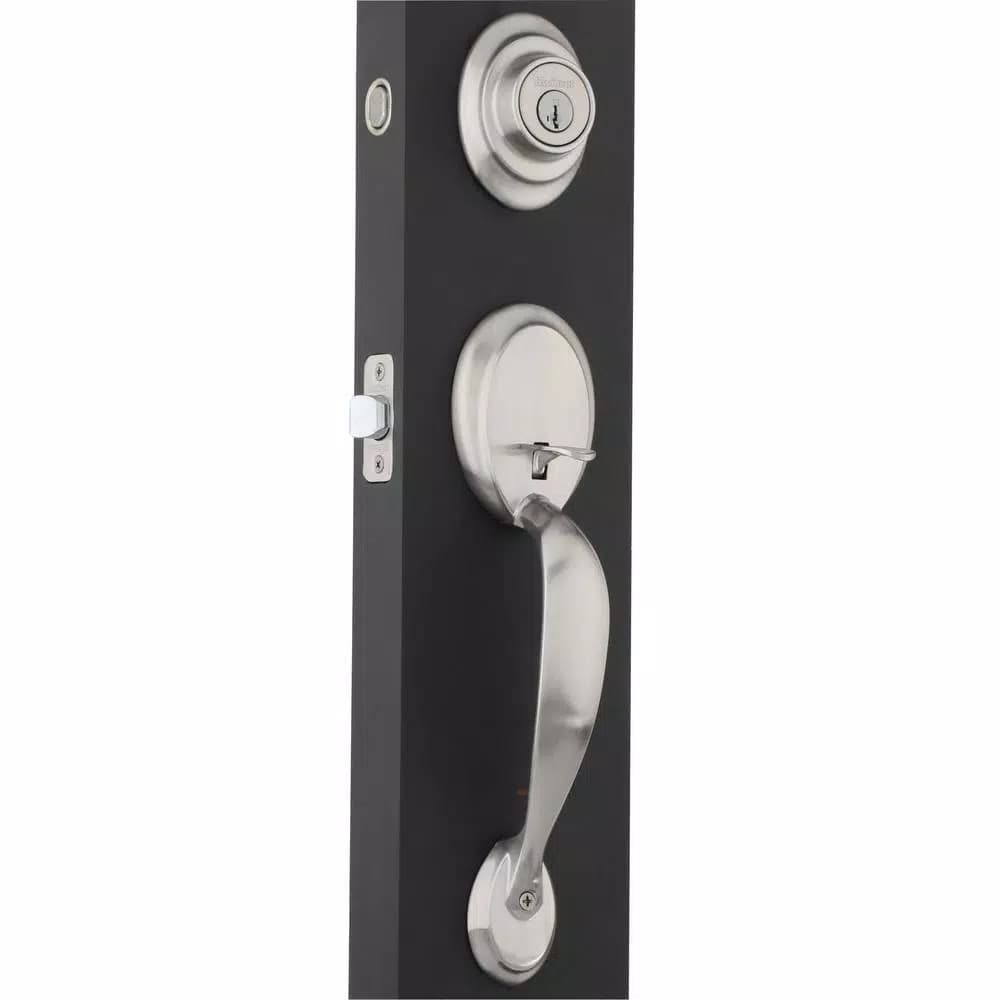

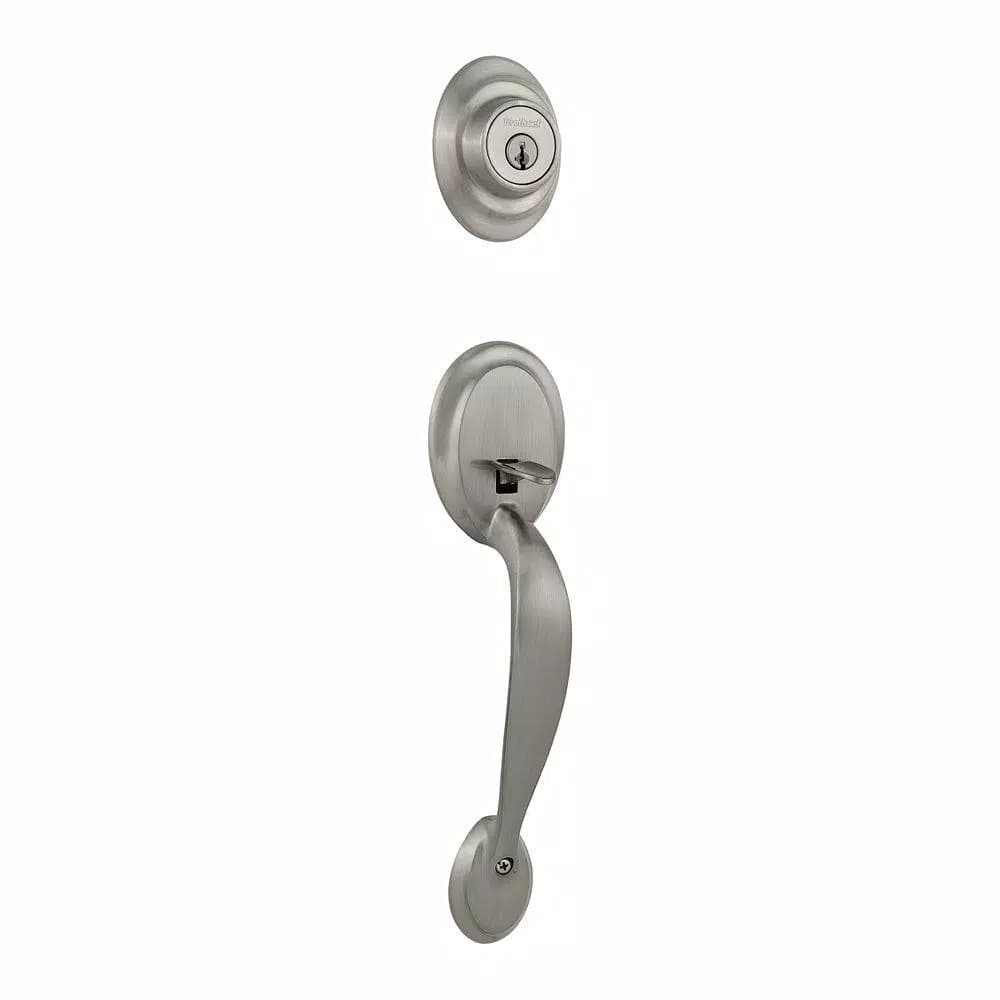

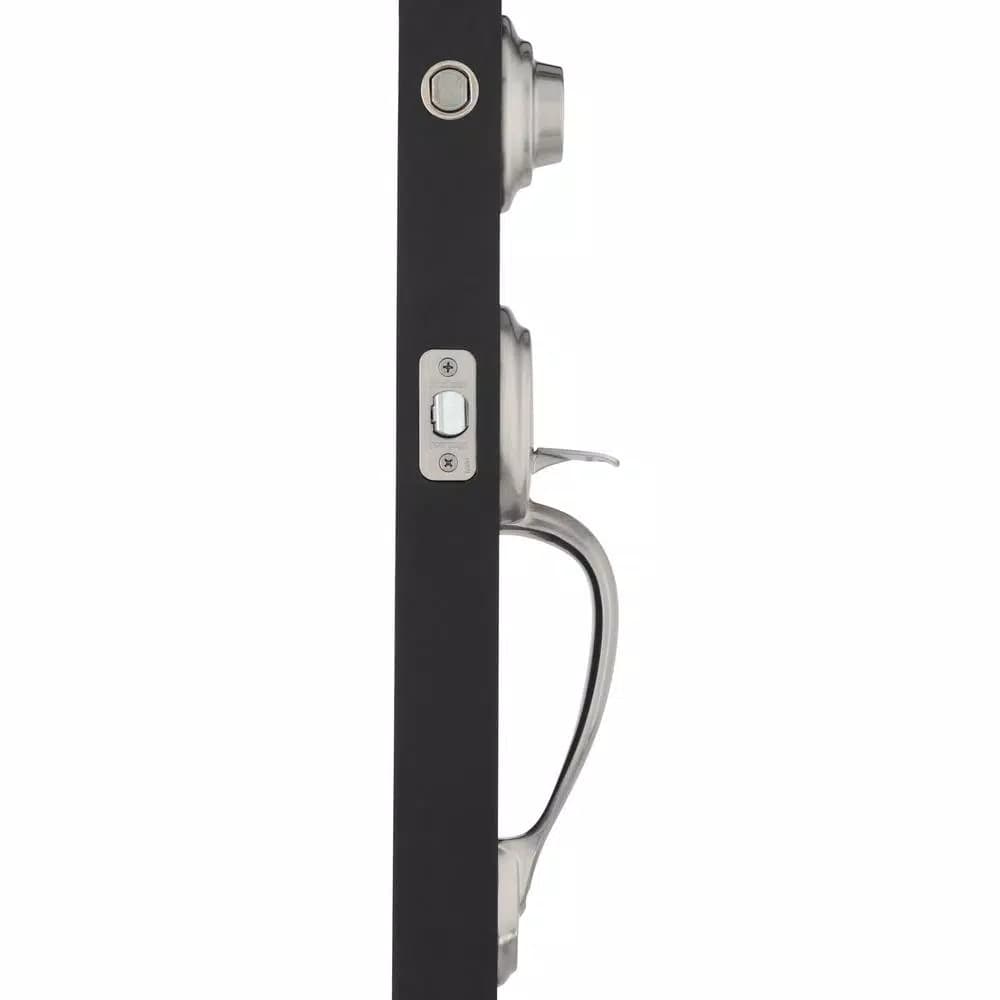

Elevate your home's curb appeal with the Dakota handleset, featuring clean lines and a modern Satin Nickel finish. This exterior pack utilizes SmartKey Security technology, allowing you to re-key your lock in seconds for enhanced peace of mind.
Elevate your home's curb appeal with the Dakota handleset, featuring clean lines and a modern Satin Nickel finish. This exterior pack utilizes SmartKey Security technology, allowing you to re-key your lock in seconds for enhanced peace of mind.
| Door Handing | Universal |
| Interior / Exterior | Exterior |
| Minimum Door Thickness | 1.75 in |
| Security/ANSI Grade | ANSI Grade 3 (Good) |
| Features | Easy Installation |
| Door Lock Style | Classic |
| Backset Size | Adjustable |
| Deadbolt Strike | Round Corner |
| Hardware Finish Family | Nickel |
| Door Locks & Knobs Product Type | Keyed Handlesets |
| Material | Metal |
| Keying Type | Keyed Different |

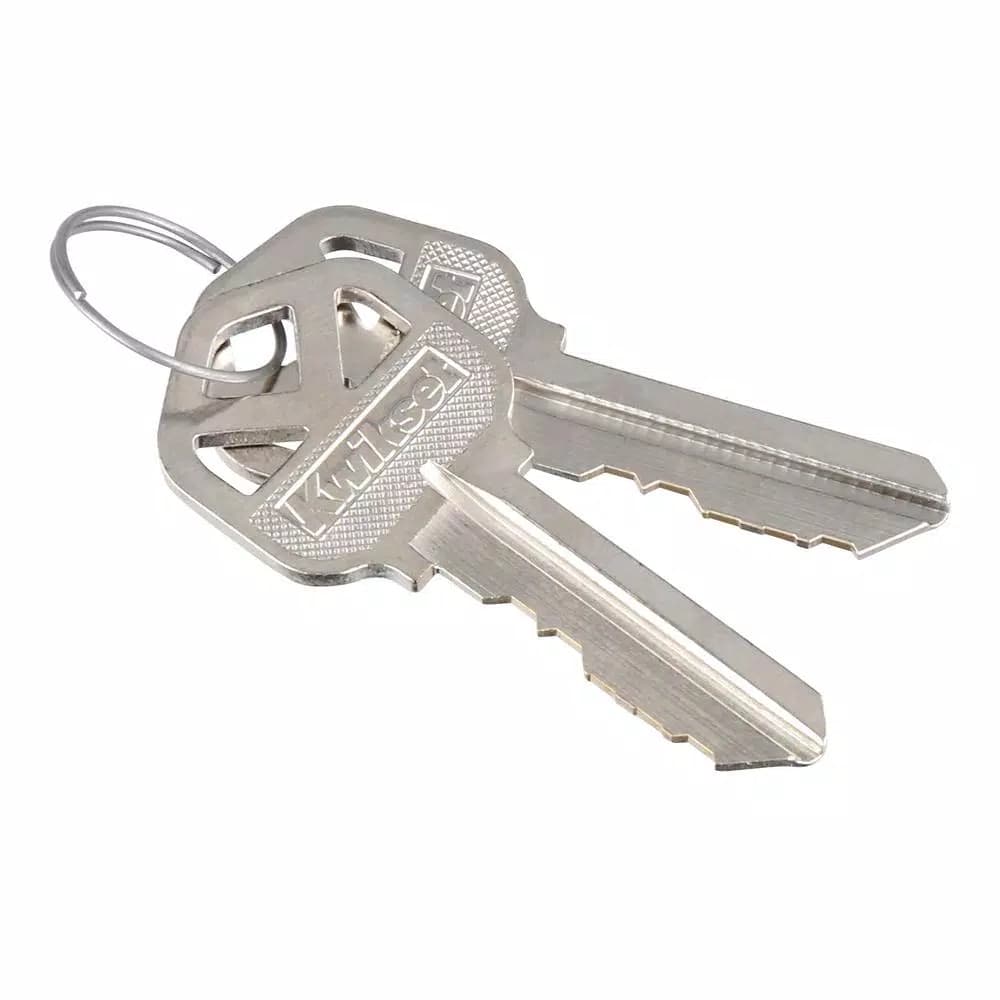

| Total Number of Keys Included | 2 |
| Knob Style | Flat Ball |
| Lock Type | Keyed Entry |
| Electronic / Mechanical | Mechanical |
| Knob / Lever Strike | Round Corner |
| Included | Hardware, Installation Instructions |
| Application Type | Entry |
| Deadbolt Type | Single Cylinder Deadbolt |
| Finish | Satin Nickel |
| Commercial/Residential | Residential |
| Handleset Product Type | 2 Piece Front & Back |
| Knob / Lever Housing Width | 2.625 in |
| Deadbolt Strike Width | 1 in |
| Outside Key Plate Width | 1 in |
| Outside Bottom Handle Plate Length | 1 in |
| Inside Top Plate Length | 1 in |
| Knob / Lever Bore Hole Diameter | 1 in |
| Deadbolt Throw Length | 1 in |
| Outside Key Plate Length | 1 in |
| Handle Grip Length | 1 in |
| Inside Top Plate Width | 1 in |
| Deadbolt Strike Height | 2.25 in |
| Outside Top Handle Plate Length | 1 in |
| Knob / Lever Strike Height | 2.25 in |
| Knob Diameter | 1 in |
| Knob / Lever Throw Length | 0.5 in |
| Knob / Lever Strike Width | 1 in |
| Assembled Depth | 2.15625 in |
| Deadbolt Bore Hole Diameter | 1 in |
| Deadbolt Trim Ring Diameter | 3 in |
| Outside Top Handle Plate Width | 1 in |
| Outside Bottom Handle Plate Width | 1 in |
| Deadbolt Cross Bore Diameter | 2.125 in |
| Assembled Width | 2.939 in |
| Maximum Door Thickness | 1.75 in |
| Projection | 1 in |
| Knob / Lever Cross Bore Diameter | 2.125 in |
| Knob / Lever Housing Height | 2.625 in |
| Assembled Height | 17.19 in |
| Weight | 4.8 lbs |
| Length | 16.2 in |
| Width | 7.5 in |
| Height | 4.2 in |
