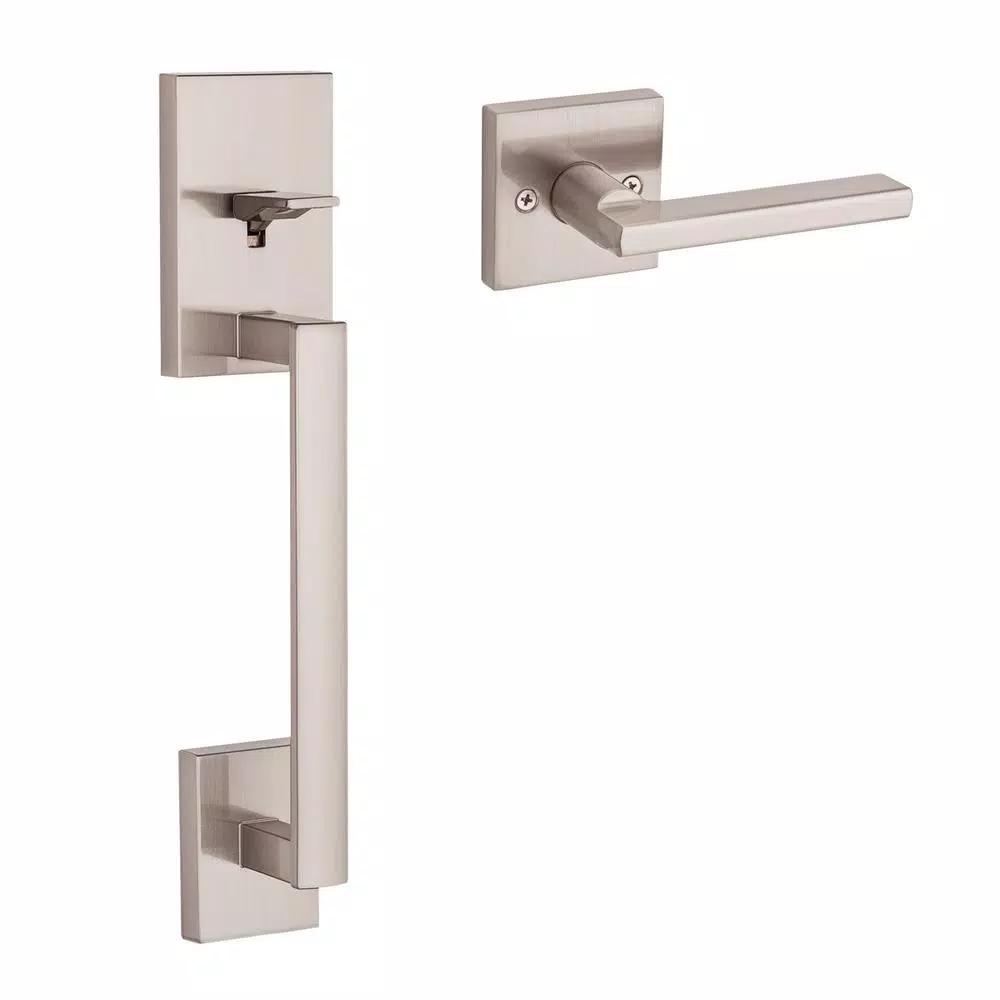

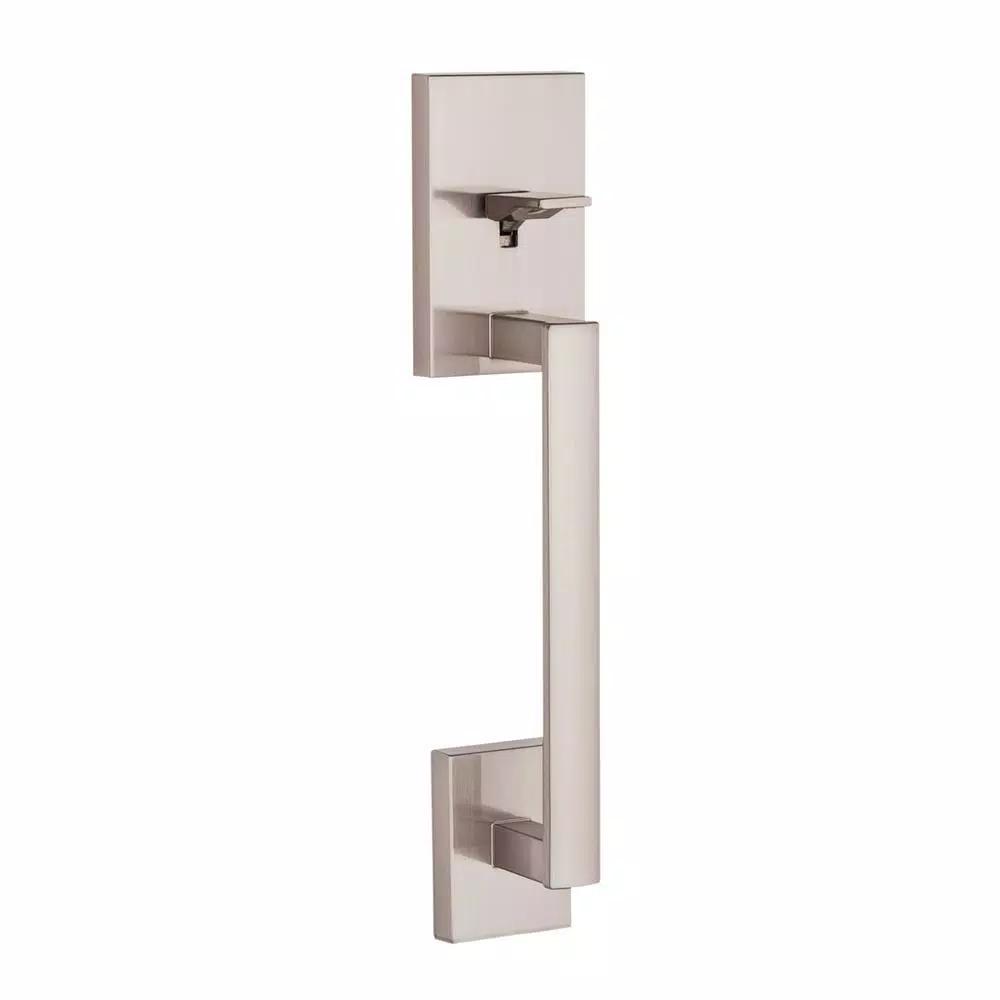

Elevate your home's entryway with the Kwikset Signature Series San Clemente handleset, featuring a sleek, modern design and premium Satin Nickel finish. This ANSI Grade 1 rated hardware provides superior security and includes Microban antimicrobial technology to keep surfaces cleaner. Designed for easy installation, it features an adjustable backset to ensure a perfect fit for standard door preparations.
Elevate your home's entryway with the Kwikset Signature Series San Clemente handleset, featuring a sleek, modern design and premium Satin Nickel finish. This ANSI Grade 1 rated hardware provides superior security and includes Microban antimicrobial technology to keep surfaces cleaner. Designed for easy installation, it features an adjustable backset to ensure a perfect fit for standard door preparations.
Door Handing
Universal
Interior / Exterior
Exterior
Minimum Door Thickness
1.375 in
Keyway
No Keyway
Security/ANSI Grade
ANSI Grade 1
Features
Easy Installation, Adjustable Backset
Door Lock Style
Modern
Backset Size
Adjustable
Hardware Finish Family
Nickel
Door Locks & Knobs Product Type
Unkeyed Handlesets
Material
Metal
Keying Type
Not Keyed
Lock Type
Unkeyed
Electronic / Mechanical
Mechanical
Knob / Lever Strike
Round Corner
Included
Hardware, Installation Instructions
Application Type
Entry
Finish
Satin Nickel
Commercial/Residential
Residential
Lever Style
Straight
Handleset Product Type
1 Piece Front & Back
Knob / Lever Housing Width
2.625 in
Knob / Lever Bore Hole Diameter
1 in
Outside Handle and Key Plate Width
2.75 in
Handle Grip Length
13.25 in
Inside Plate Length
2.63 in
Knob / Lever Strike Height
2.25 in
Knob / Lever Throw Length
0.5 in
Knob / Lever Strike Width
1.75 in
Assembled Depth
2.63 in
Assembled Width
2.75 in
Maximum Door Thickness
1.75 in
Outside Handle Plate On - Center Measurement
1 in
Projection
2.63 in
Outside Handle and Key Plate Length
13.25 in
Knob / Lever Cross Bore Diameter
2.125 in
Knob / Lever Housing Height
2.625 in
Inside Plate Width
2.63 in
Assembled Height
2.63 in
Dimensions
3.93 × 7.24 × 16.22 in
Weight
5.09 lbs
