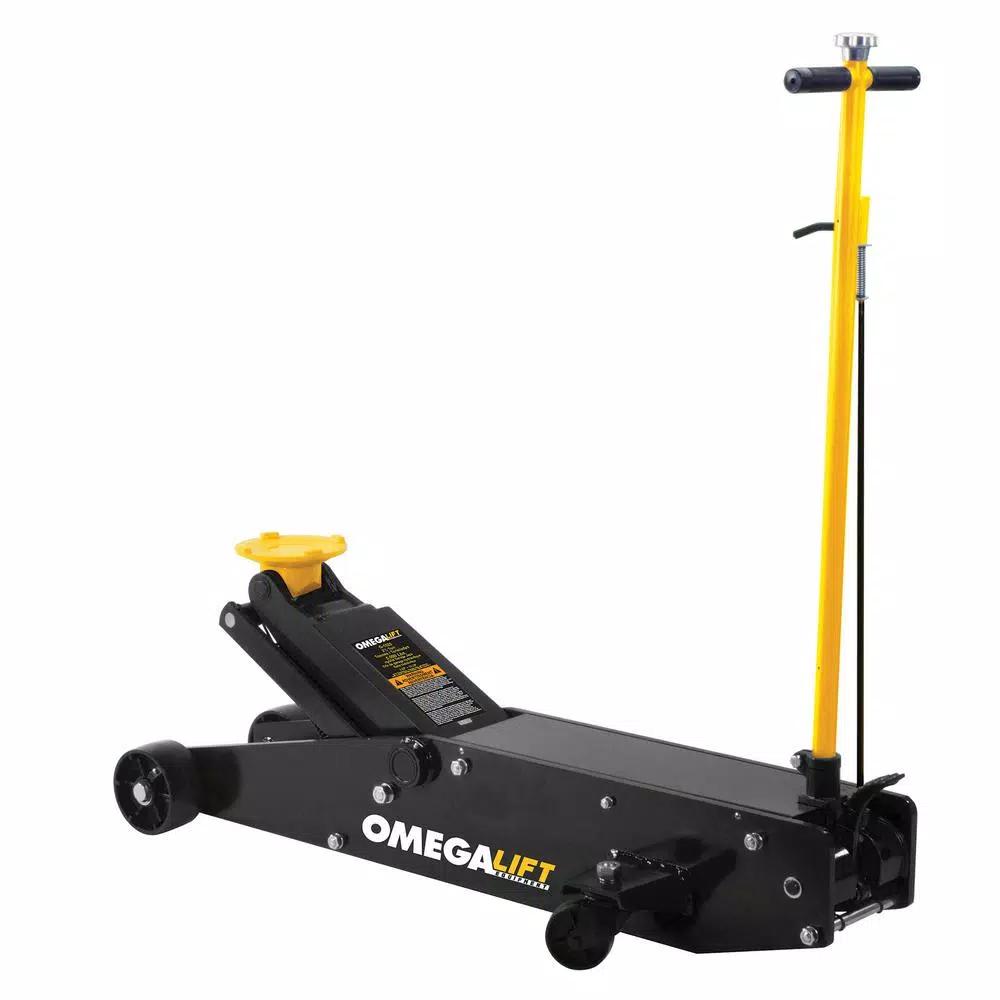

Engineered with a heavy-gauge steel frame, this long chassis service jack prevents distortion while providing access to difficult-to-reach load points. The wide stance and low center of gravity ensure maximum stability under heavy stress, while the patented bypass device protects the hydraulic system from over-pumping damage.
Engineered with a heavy-gauge steel frame, this long chassis service jack prevents distortion while providing access to difficult-to-reach load points. The wide stance and low center of gravity ensure maximum stability under heavy stress, while the patented bypass device protects the hydraulic system from over-pumping damage.
Ideally Used for
Heavy-Duty
Minimum Lift Height
7 in
Material
Steel
Weight Capacity
20000 lb
Mechanism Type
Hydraulic
Included
No additional items included
Maximum Lift Height
27 in
Saddle Diameter
7.25 in
Features
Rust Resistant
General Part Type
Hydraulic Jack
Chassis Length
63.75 in
Handle Length
40.625 in
Collapsed Height
7 in
Dimensions
24 × 64 × 14.25 in
Weight
427 lbs
