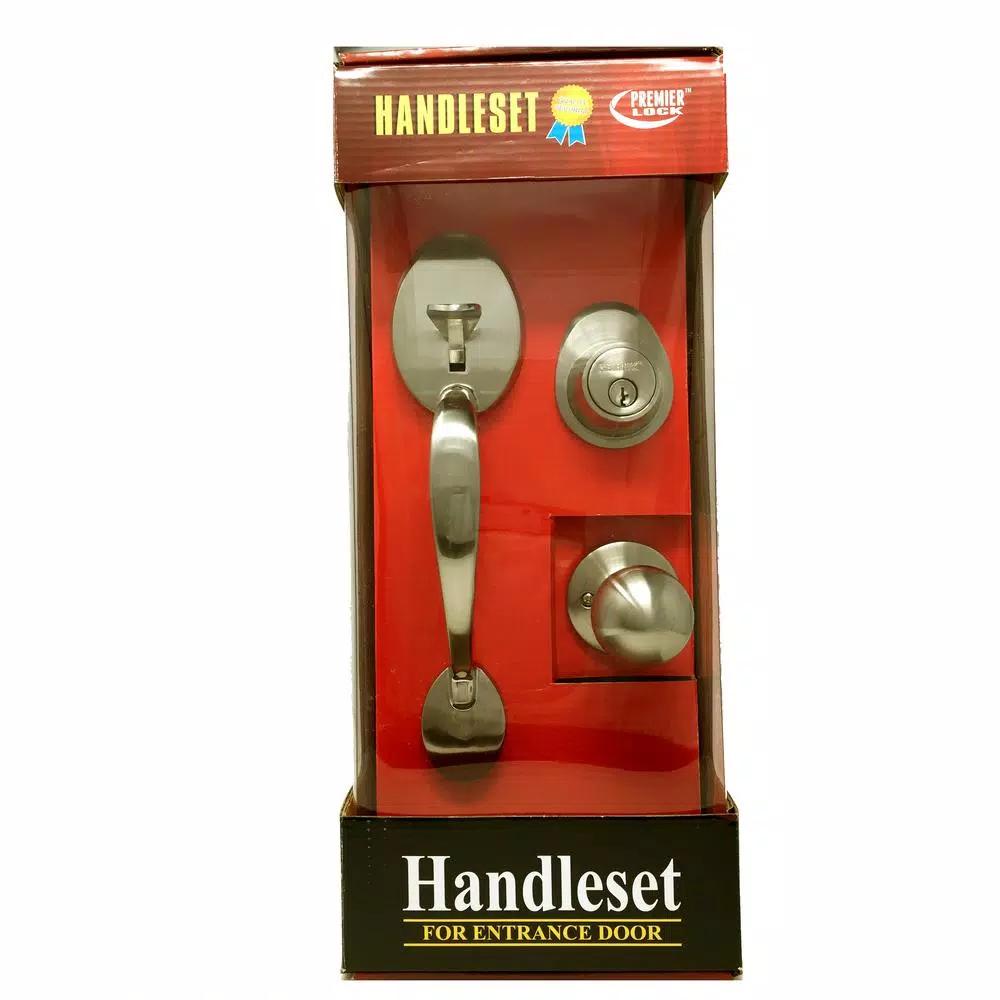

Enhance your home's security and style with this premium Satin Nickel keyed entry handleset. Featuring a solid cast metal construction and an ANSI Grade 3 security rating, this set provides reliable protection for residential exterior doors.
Enhance your home's security and style with this premium Satin Nickel keyed entry handleset. Featuring a solid cast metal construction and an ANSI Grade 3 security rating, this set provides reliable protection for residential exterior doors.
Door Handing
Universal
Interior / Exterior
Interior/Exterior
Minimum Door Thickness
1.38 in
Security/ANSI Grade
ANSI Grade 3 (Good)
Door Lock Style
Classic
Features
Easy Installation, Adjustable Backset
Backset Size
Adjustable
Deadbolt Strike
Square Corner
Hardware Finish Family
Nickel
Door Locks & Knobs Product Type
Keyed Handlesets
Material
Metal
Keying Type
Keyed Different
Total Number of Keys Included
3
Knob Style
Egg
Lock Type
Keyed Entry
Electronic / Mechanical
Mechanical
Knob / Lever Strike
Square Corner
Included
Mounting Hardware, Hardware, Drilling Template
Application Type
Entry
Deadbolt Type
Single Cylinder Deadbolt
Finish
Satin Nickel
Commercial/Residential
Commercial, Residential
Handleset Product Type
2 Piece Front & Back
Knob / Lever Strike Height
2.25 in
Knob Diameter
2 in
Knob / Lever Throw Length
3 in
Knob / Lever Strike Width
1.75 in
Knob / Lever Bore Hole Diameter
2.5 in
Knob / Lever Cross Bore Diameter
0.5 in
Knob / Lever Housing Height
2.75 in
Knob / Lever Housing Width
2.75 in
Outside Key Plate Width
2.75 in
Outside Key Plate Length
3 in
Outside Bottom Handle Plate Length
2.5 in
Outside Bottom Handle Plate Width
2 in
Outside Top Handle Plate Length
4 in
Outside Top Handle Plate Width
3 in
Inside Top Plate Length
2.75 in
Inside Top Plate Width
2.75 in
Deadbolt Strike Width
1 in
Deadbolt Strike Height
2.25 in
Deadbolt Throw Length
1 in
Deadbolt Bore Hole Diameter
1.25 in
Deadbolt Cross Bore Diameter
0.5 in
Deadbolt Trim Ring Diameter
3.5 in
Assembled Depth
12.5 in
Assembled Width
4.25 in
Assembled Height
3.5 in
Projection
3.25 in
Handle Grip Length
6 in
Maximum Door Thickness
1.75 in
Dimensions
18 × 8 × 6 in
Weight
3.65 lbs
