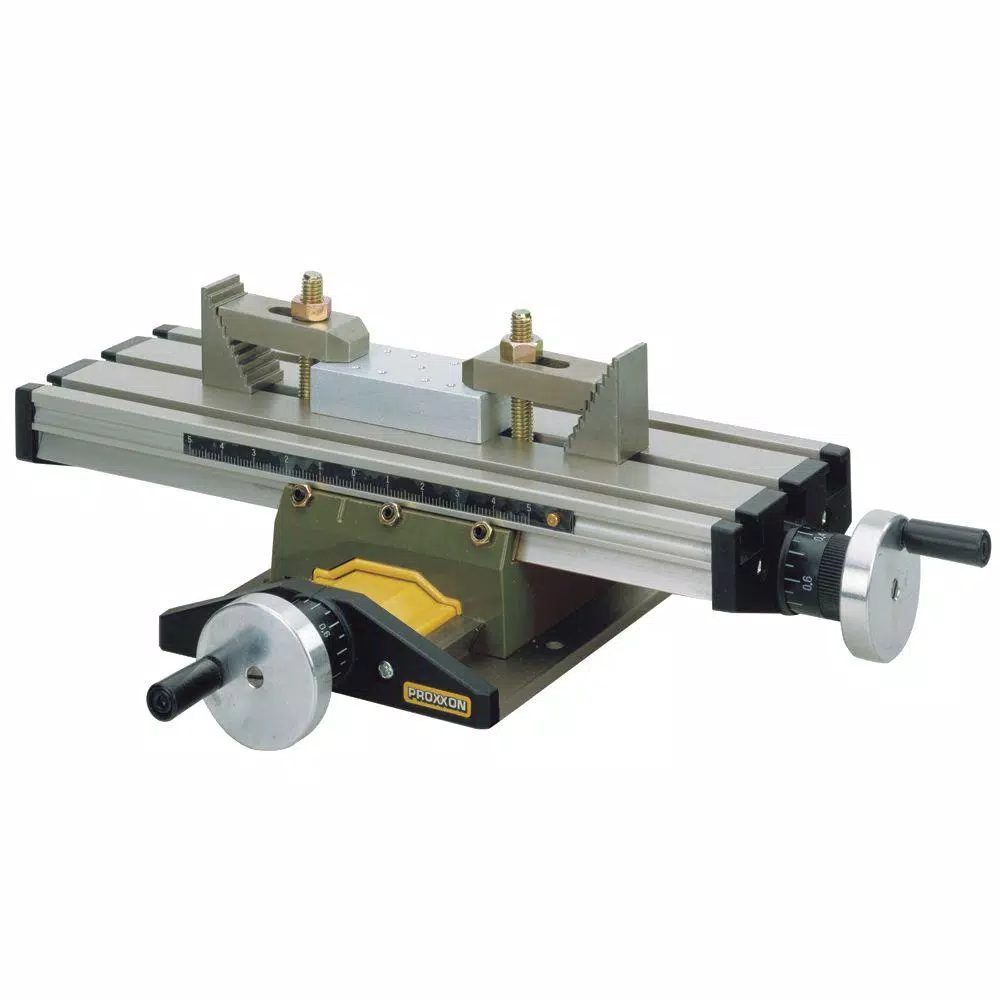

Proxxon KT70 Micro Compound Table for Precise Milling, Drilling, and Grinding
$72.91
Engineered in Germany, this high-precision micro compound table features a surface-treated aluminum work surface and dual-axis positioning. Equipped with zero-resettable dials graduated in 0.05 mm increments, it ensures exceptional accuracy for milling, facing, and drilling operations.
In Stock
Satisfaction guaranteed
Free 30-day returns
Secure payment
Description
Engineered in Germany, this high-precision micro compound table features a surface-treated aluminum work surface and dual-axis positioning. Equipped with zero-resettable dials graduated in 0.05 mm increments, it ensures exceptional accuracy for milling, facing, and drilling operations.
- Dual-axis (lateral and cross) positioning via two hand wheels for highly precise adjustments.
- Zero-resettable dials graduated in 0.05 mm increments allow for extremely accurate setup.
- Surface-treated aluminum work surface with three longitudinal T-slots for secure workpiece mounting.
- Adjustable dovetails provide controlled backlash for consistent performance.
- Includes clamping accessories and a set of step clamps for easy setup and attachment.
- X-travel: 5-9/32 in. (134 mm); Y-travel: 1-13/16 in. (46 mm); Overall height: 1-11/16 in. (43 mm).
- Optimally compatible with Proxxon MB140/S drill stand, TBM115 bench drill, and MS4 machine vise.
Specifications
Tools Product Type
Power Tool
Bench & Stationary Tool Type
Accessory
Ideally Used With
Drill Presses
Dimensions
8 × 10.5 × 1.75 in
Weight
0.53 lbs
