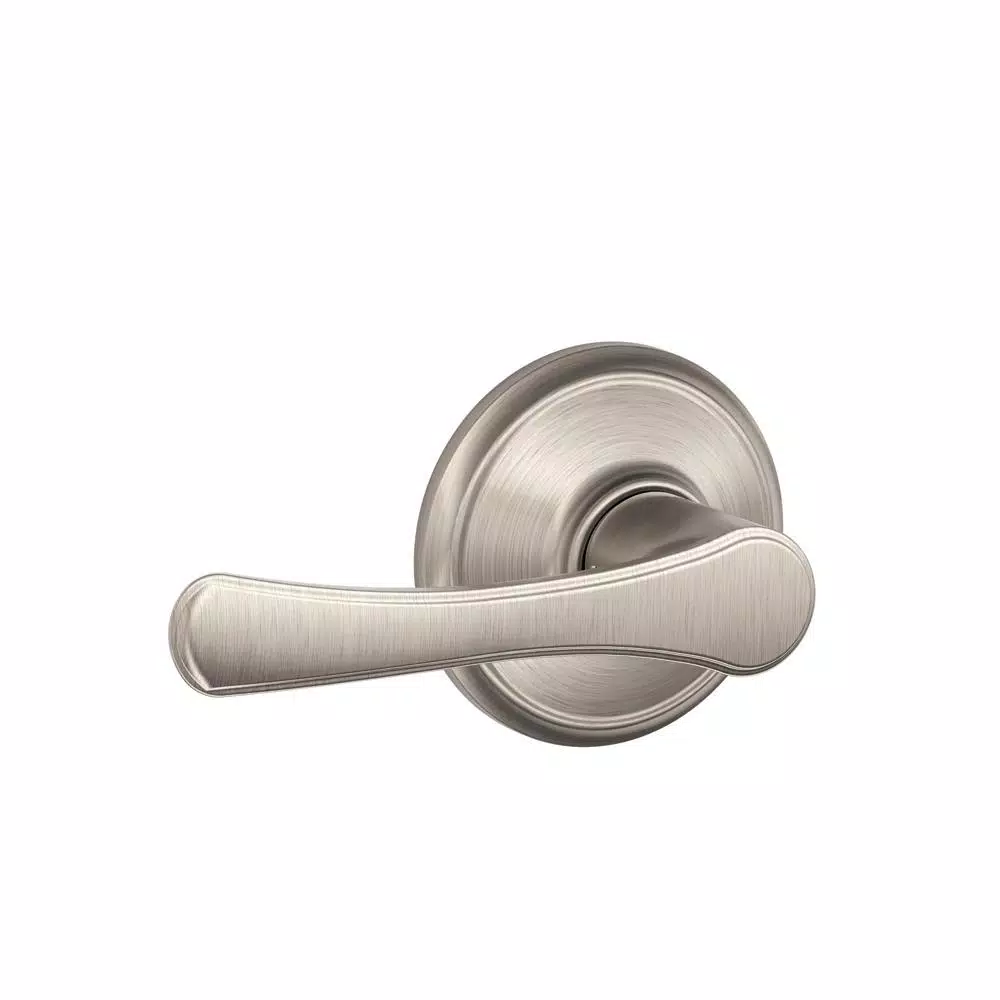

Elevate your interior spaces with the Schlage Avila Passage Lever, featuring a striking curved design and a versatile Satin Nickel finish. Engineered for durability and strength, this non-locking lever is the perfect solution for hall and closet doors where ease of access is a priority.
Elevate your interior spaces with the Schlage Avila Passage Lever, featuring a striking curved design and a versatile Satin Nickel finish. Engineered for durability and strength, this non-locking lever is the perfect solution for hall and closet doors where ease of access is a priority.
| Lever Material | Zinc |
| Door Handing | Universal |
| Interior / Exterior | Interior |
| Minimum Door Thickness | 1.4 in |
| Security/ANSI Grade | ANSI Grade 1 |
| Features | Easy Installation, Adjustable Backset |
| Door Lock Style | Classic |
| Strike | Round corner |
| Hardware Finish Family | Nickel |
| Door Locks & Knobs Product Type | Passage Levers |
| Material | Zinc |
| Lock Type | Unkeyed |
| Included | Hardware, Installation Instructions, Drilling Template, Self Guiding Screws |
| Application Type | Passage |
| Finish | Satin Nickel |
| Commercial/Residential | Residential |
| Lever Style | Straight |
| Assembled Depth | 2.25 in |
| Lever Grip Length | 4.1 in |
| Strike Height | 2.3 in |
| Strike Width | 0.9 in |
| Assembled Width | 5 in |
| Maximum Door Thickness | 1.8 in |
| Cross Bore Diameter | 2.125 in |
| Throw Length | 0.4 in |
| Projection | 2.25 in |
| Assembled Height | 2.75 in |
| Lever Housing Height | 2.75 in |
| Lever Housing Width | 5 in |
| Weight | 2 lbs |
| Length | 7 in |
| Width | 4.37 in |
| Height | 3.06 in |
