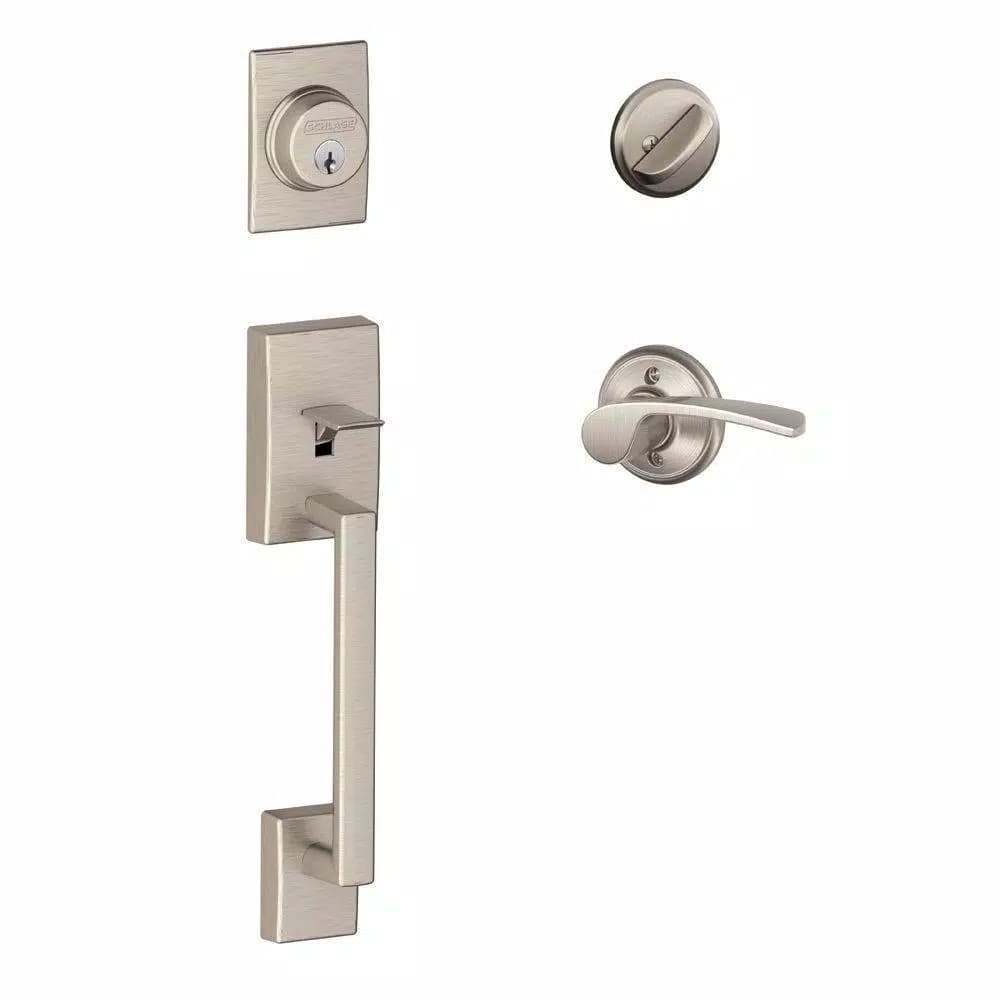

Elevate your home's curb appeal with this elegant Satin Nickel handleset featuring a graceful Merano lever and chic Century deadbolt. Designed for durability and security, this ANSI Grade 2 rated set provides reliable protection for exterior front doors.
Elevate your home's curb appeal with this elegant Satin Nickel handleset featuring a graceful Merano lever and chic Century deadbolt. Designed for durability and security, this ANSI Grade 2 rated set provides reliable protection for exterior front doors.

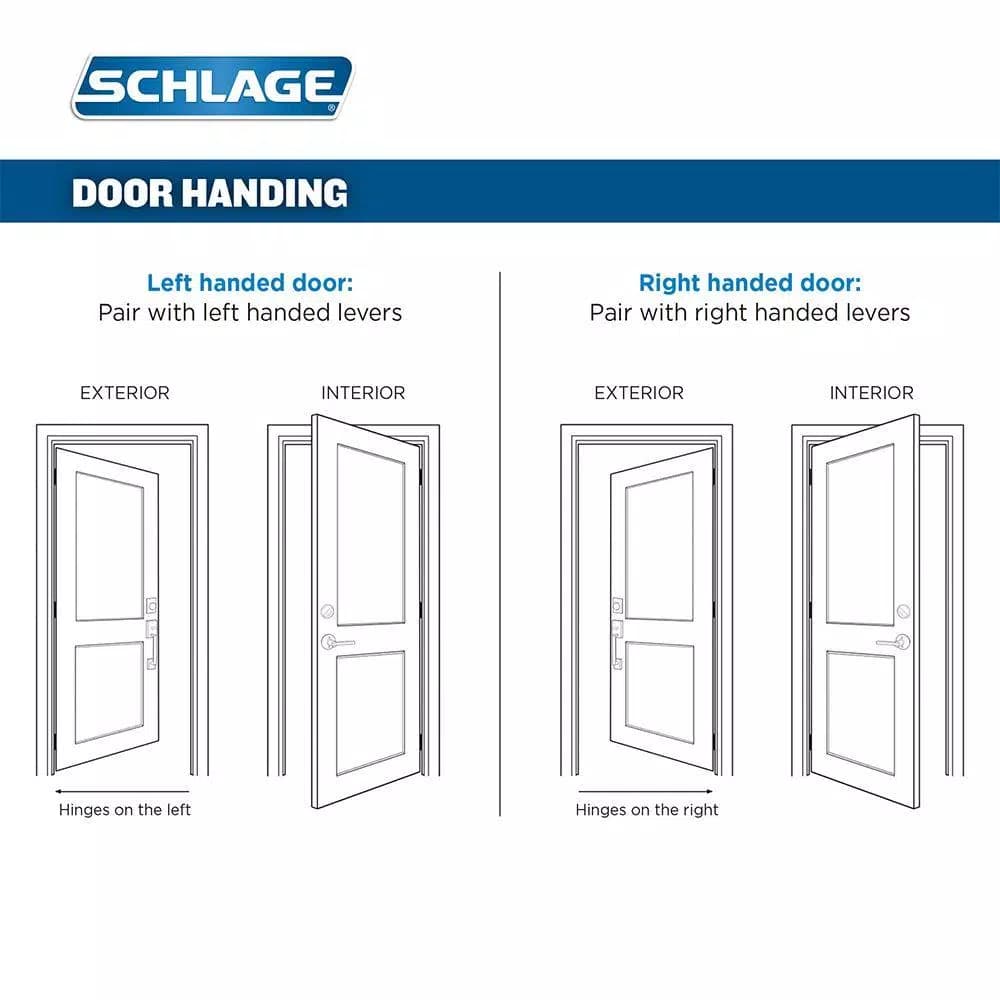

Door Handing
Left-Handed
Interior / Exterior
Exterior
Minimum Door Thickness
1.4 in
Keyway
C
Security/ANSI Grade
ANSI Grade 2 (Better)
Features
Easy Installation, Adjustable Backset, Rekeyable
Door Lock Style
Modern
Backset Size
Adjustable
Deadbolt Strike
Round Corner
Hardware Finish Family
Nickel
Door Locks & Knobs Product Type
Keyed Handlesets
Material
Solid Brass
Keying Type
Keyed Alike
Total Number of Keys Included
2
Lock Type
Keyed Entry
Electronic / Mechanical
Mechanical
Knob / Lever Strike
Round Corner
Included
Hardware, Installation Instructions, Drilling Template, Self Guiding Screws
Application Type
Entry
Deadbolt Type
Single Cylinder Deadbolt
Finish
Satin Nickel
Commercial/Residential
Residential
Lever Style
Straight
Handleset Product Type
2 Piece Front & Back
Knob / Lever Housing Width
5.3 in
Deadbolt Strike Width
1.6 in
Outside Key Plate Width
2.5 in
Outside Bottom Handle Plate Length
3.5 in
Inside Top Plate Length
2.5 in
Knob / Lever Bore Hole Diameter
2.2 in
Deadbolt Throw Length
1 in
Outside Key Plate Length
4 in
Handle Grip Length
12.2 in
Inside Top Plate Width
2.5 in
Deadbolt Strike Height
2.3 in
Outside Bottom Handle Plate Width
2.5 in
Outside Top Handle Plate Length
3.5 in
Knob / Lever Strike Height
2.2 in
Knob / Lever Throw Length
0.4 in
Knob / Lever Strike Width
0.9 in
Assembled Depth
2.3 in
Lever Grip Length
4.5 in
Deadbolt Bore Hole Diameter
2.125 in
Deadbolt Trim Ring Diameter
2.5 in
Outside Top Handle Plate Width
2.5 in
Knob / Lever Cross Bore Diameter
1 in
Assembled Width
3 in
Maximum Door Thickness
1.8 in
Projection
2.3 in
Assembled Height
12.1 in
Knob / Lever Housing Height
2.8 in
Dimensions
16.38 × 8 × 3.88 in
Weight
7 lbs
