Name: Schlage Orbit Series D Satin Chrome Keyed Entry Door Handleset with Adjustable Knobs
Brand: Schlage
Price: 449.94 USD
Availability: InStock

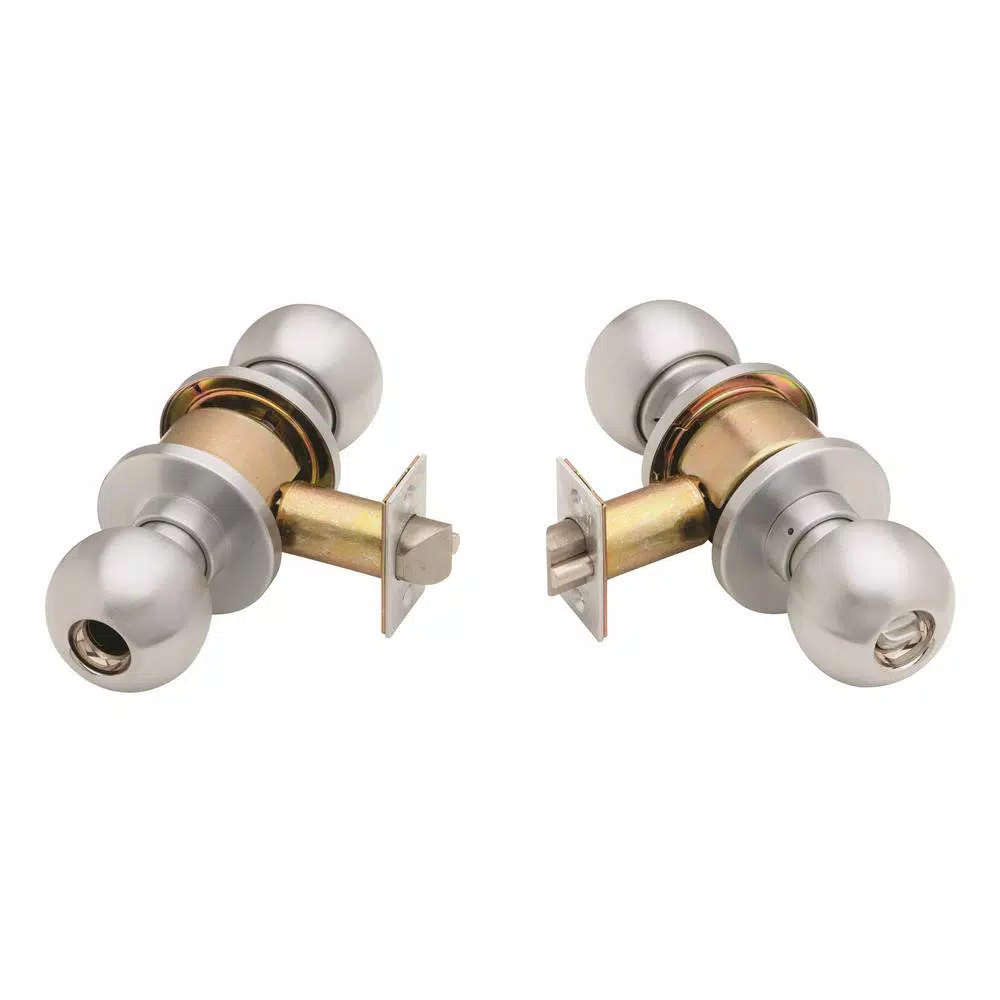

Engineered for heavy-traffic applications, this Schlage D Series handleset features ultra-durable ANSI Grade 1 security. The satin chrome finish and smooth, anti-friction knob action provide both professional-grade reliability and modern style for any residential entry.

Exceeds ANSI/BHMA Grade 1 requirements for maximum security and durability
Heavy-gauge, cold-rolled steel mechanisms are corrosion-treated for long-lasting performance
Anti-friction latch retractor with roller-bearing and coil compression springs ensures smooth knob action
Designed for easy installation and immediate egress with a free-moving inside knob
Universal door handing makes it suitable for various installation configurations
Fits all Schlage standard, removable core, and high-security cylinders

Door Handing	Universal
Interior / Exterior	Interior/Exterior
Minimum Door Thickness	1.38 in
Maximum Door Thickness	2 in
Security/ANSI Grade	ANSI Grade 1 (Best)
Features	Easy Installation
Door Lock Style	Modern
Backset Size	2.75 in
Deadbolt Strike	Strike not included
Hardware Finish Family	Chrome
Door Locks & Knobs Product Type	Keyed Handlesets
Material	Metal
Total Number of Keys Included	2
Knob Style	Full ball
Knob / Lever Strike	Square Corner
Included	Hardware, Installation Instructions
Single or Double Cylinder Deadbolt	Single
Lock Type	Keyed Entry
Application Type	Entry
Deadbolt Type	Single Cylinder Deadbolt
Finish	Satin Chrome
Commercial/Residential	Residential
Handleset Product Type	1 Piece Front & 2 Piece Back
Knob / Lever Housing Width	2.56 in
Deadbolt Strike Width	0.001 in
Outside Bottom Handle Plate Length	2.56 in
Inside Top Plate Length	0.001 in
Knob / Lever Bore Hole Diameter	2.13 in
Outside Handle and Key Plate Width	0.001 in
Deadbolt Throw Length	0.001 in
Handle Grip Length	0.001 in
Inside Top Plate Width	0.001 in
Deadbolt Strike Height	0.001 in
Knob / Lever Strike Height	4.88 in
Knob Diameter	2.13 in
Knob / Lever Throw Length	0.5 in
Knob / Lever Strike Width	1.25 in
Assembled Depth	2.63 in
Deadbolt Bore Hole Diameter	0.001 in
Deadbolt Trim Ring Diameter	0.001 in
Outside Bottom Handle Plate Width	2.56 in
Deadbolt Cross Bore Diameter	0.001 in
Assembled Width	2.56 in
Outside Handle Plate On - Center Measurement	0.001 in
Projection	2.63 in
Outside Handle and Key Plate Length	0.001 in
Knob / Lever Cross Bore Diameter	1 in
Knob / Lever Housing Height	2.56 in
Assembled Height	2.56 in
Weight	1.5 lbs
Length	3.5 in
Width	5 in
Height	10 in

Schlage Orbit Series D Satin Chrome Keyed Entry Door Handleset with Adjustable Knobs
