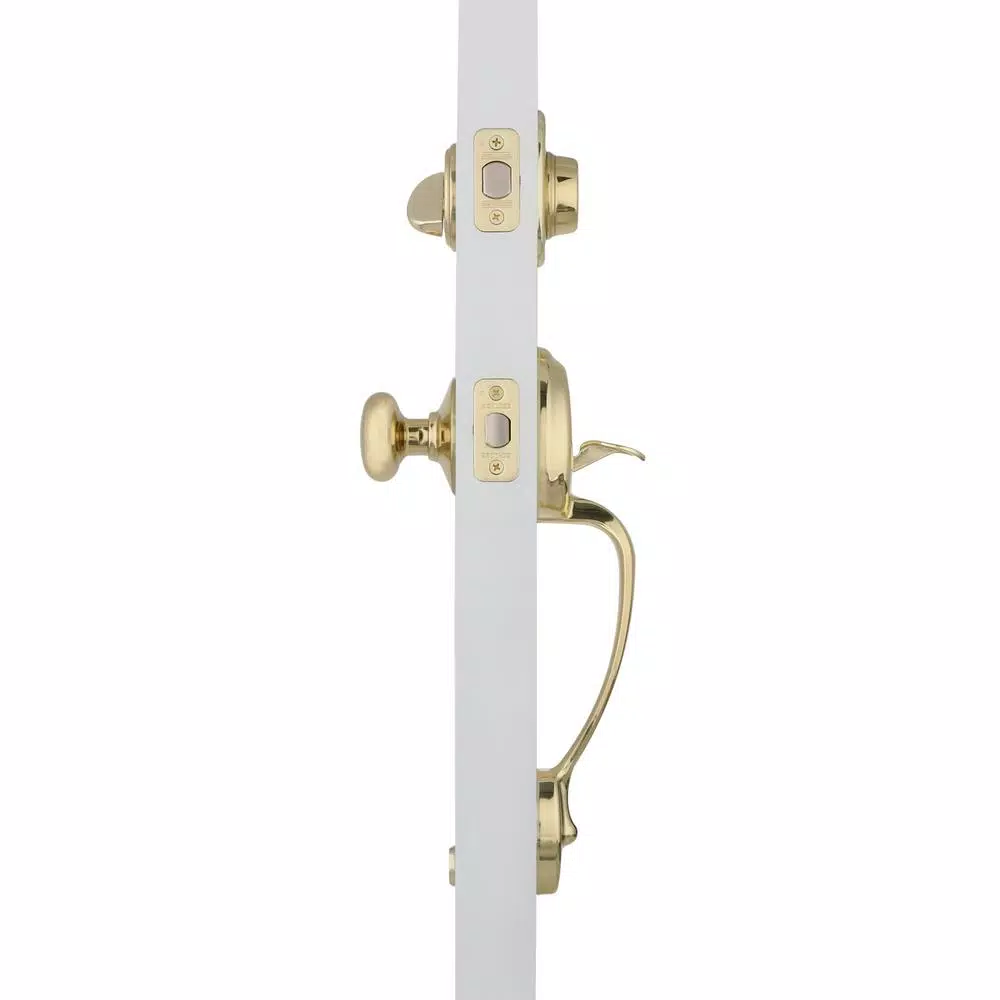

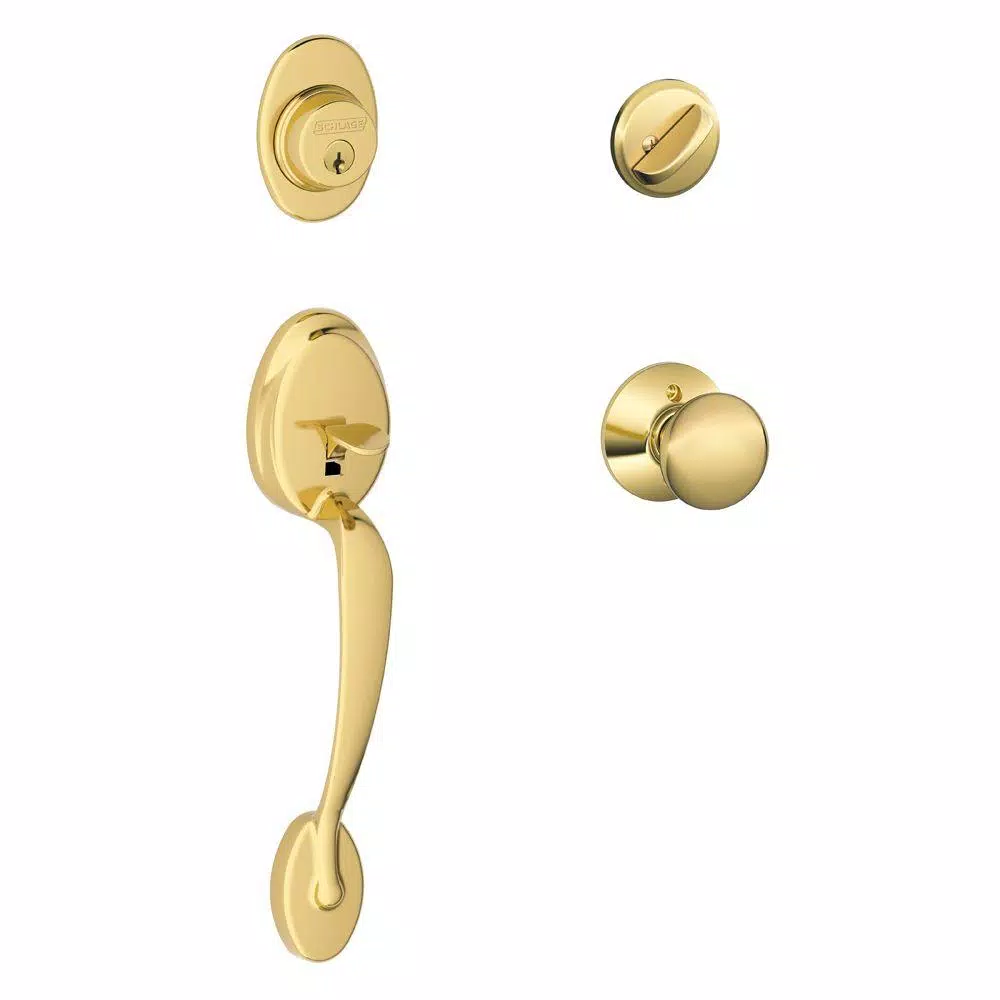

Enhance your home's curb appeal with the Schlage Plymouth handleset, featuring a warm Bright Brass finish for a vintage, colonial aesthetic. Engineered for maximum security, this ANSI Grade 1 rated set combines a classic oval design with heavy-duty durability for exterior front doors.
Enhance your home's curb appeal with the Schlage Plymouth handleset, featuring a warm Bright Brass finish for a vintage, colonial aesthetic. Engineered for maximum security, this ANSI Grade 1 rated set combines a classic oval design with heavy-duty durability for exterior front doors.
| Door Handing | Universal |
| Interior / Exterior | Exterior |
| Minimum Door Thickness | 1.4 in |
| Security/ANSI Grade | ANSI Grade 1 (Best) |
| Features | Easy Installation, Adjustable Backset, Rekeyable |
| Door Lock Style | Classic |
| Backset Size | Adjustable |

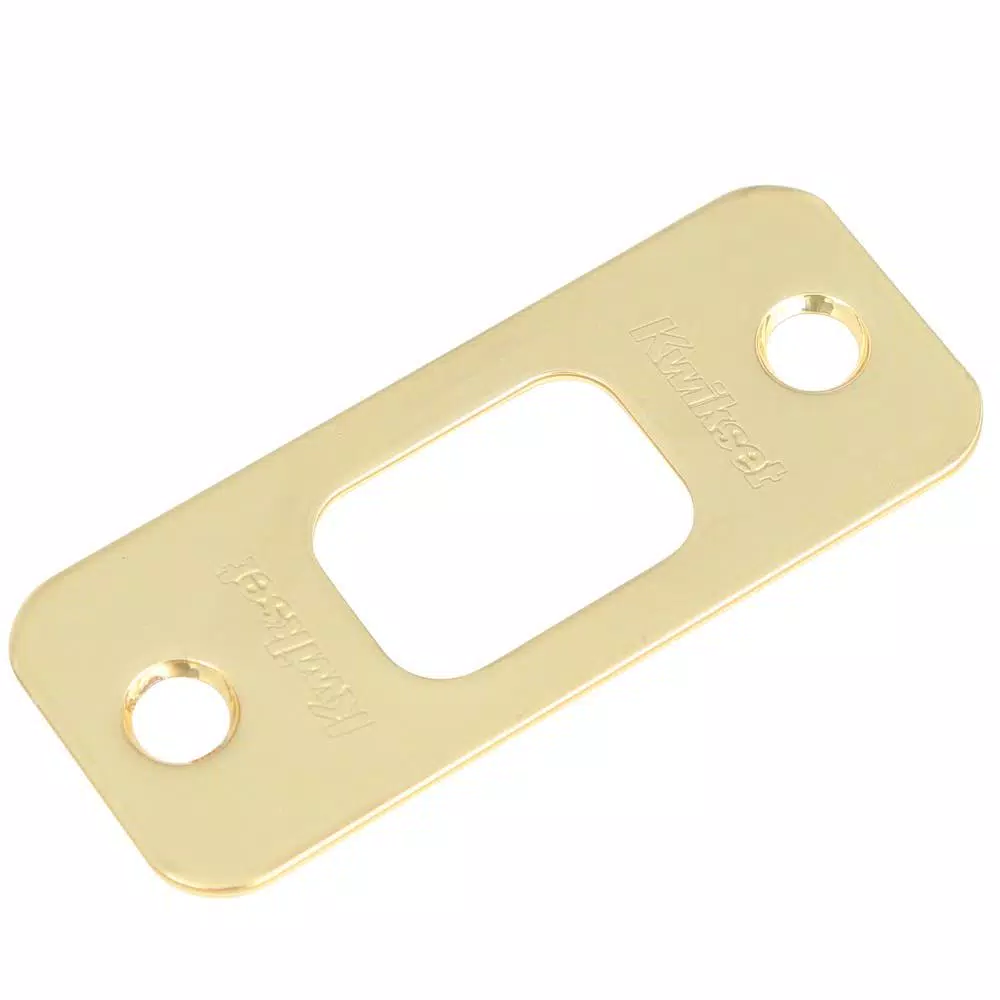

| Deadbolt Strike | Round Corner |
| Hardware Finish Family | Brass |
| Door Locks & Knobs Product Type | Keyed Handlesets |
| Material | Solid Brass |
| Keying Type | Keyed Alike |

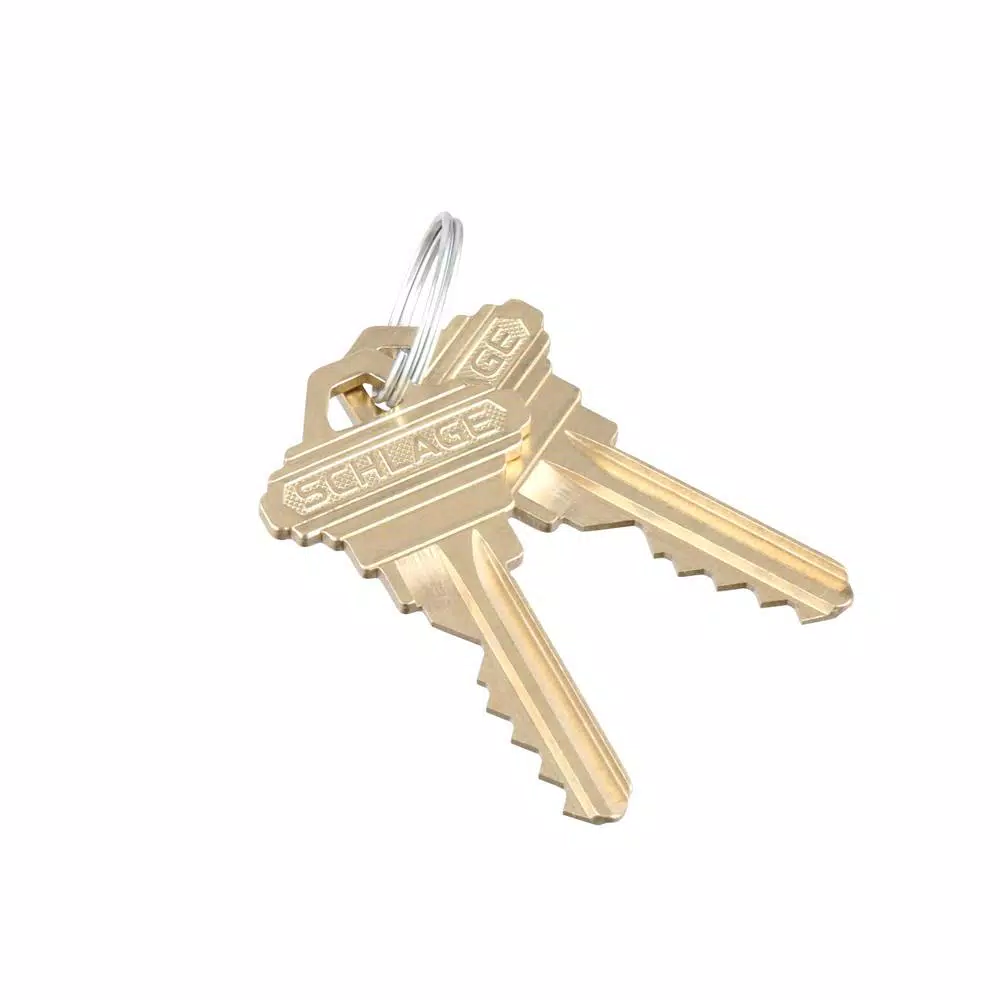

| Total Number of Keys Included | 2 |
| Knob Style | Full ball |
| Lock Type | Keyed Entry |
| Electronic / Mechanical | Mechanical |
| Knob / Lever Strike | Round Corner |
| Included | Hardware, Installation Instructions, Drilling Template, Self Guiding Screws |
| Application Type | Entry |
| Deadbolt Type | Single Cylinder Deadbolt |
| Finish | Bright Brass |
| Commercial/Residential | Residential |
| Handleset Product Type | 2 Piece Front & Back |
| Knob / Lever Strike Height | 2.3 in |
| Knob / Lever Strike Width | 0.9 in |
| Knob Diameter | 2.1 in |
| Knob / Lever Throw Length | 0.4 in |
| Knob / Lever Bore Hole Diameter | 2.2 in |
| Knob / Lever Housing Width | 2.8 in |
| Knob / Lever Housing Height | 2.8 in |
| Knob / Lever Cross Bore Diameter | 1.0 in |
| Outside Key Plate Width | 2.5 in |
| Outside Key Plate Length | 3.5 in |
| Outside Top Handle Plate Length | 4.0 in |
| Outside Top Handle Plate Width | 3.0 in |
| Outside Bottom Handle Plate Length | 2.9 in |
| Outside Bottom Handle Plate Width | 2.8 in |
| Inside Top Plate Length | 2.5 in |
| Inside Top Plate Width | 2.5 in |
| Handle Grip Length | 12.4 in |
| Deadbolt Strike Width | 1.6 in |
| Deadbolt Strike Height | 2.3 in |
| Deadbolt Throw Length | 1.0 in |
| Deadbolt Bore Hole Diameter | 1 in |
| Deadbolt Cross Bore Diameter | 2.125 in |
| Deadbolt Trim Ring Diameter | 2.5 in |
| Assembled Width | 2.938 in |
| Assembled Height | 2.313 in |
| Assembled Depth | 18.18 in |
| Projection | 2.3 in |
| Maximum Door Thickness | 1.8 in |
| Weight | 7.5 lbs |
| Length | 6.5 in |
| Width | 8.1 in |
| Height | 20.4 in |
