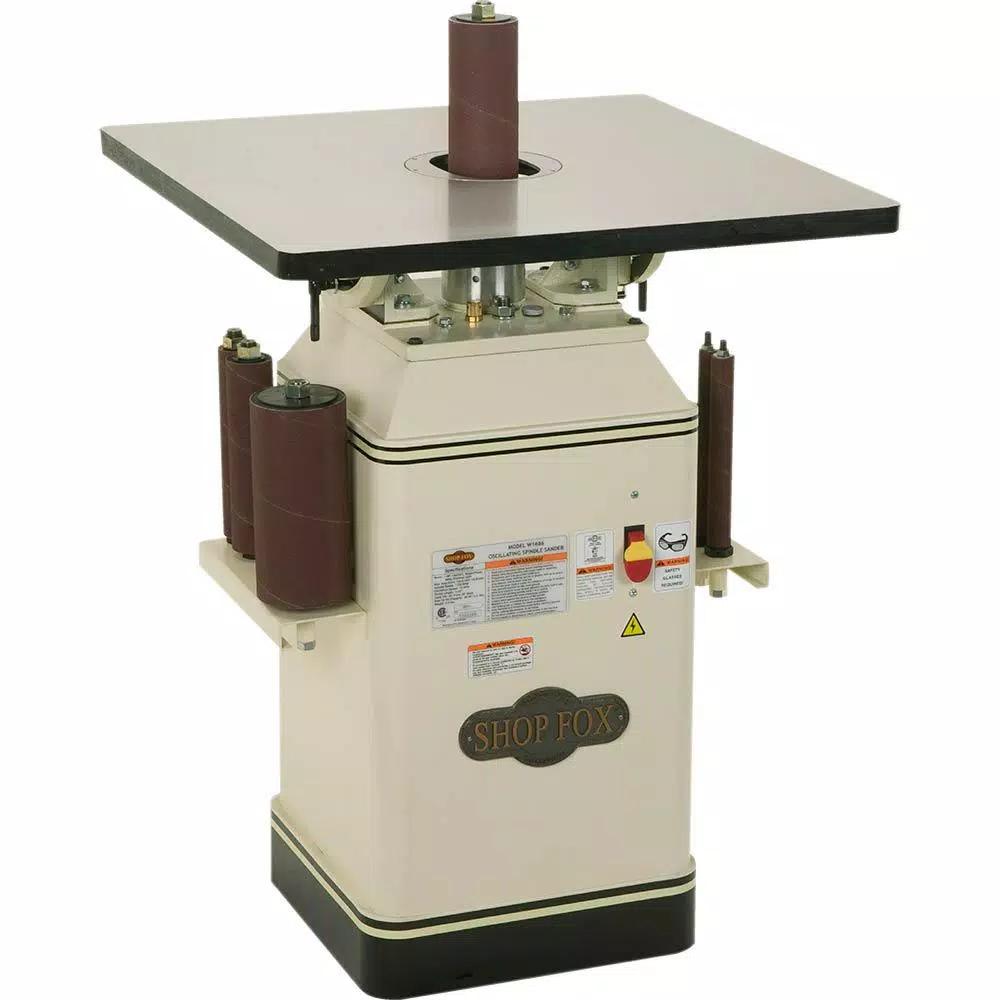

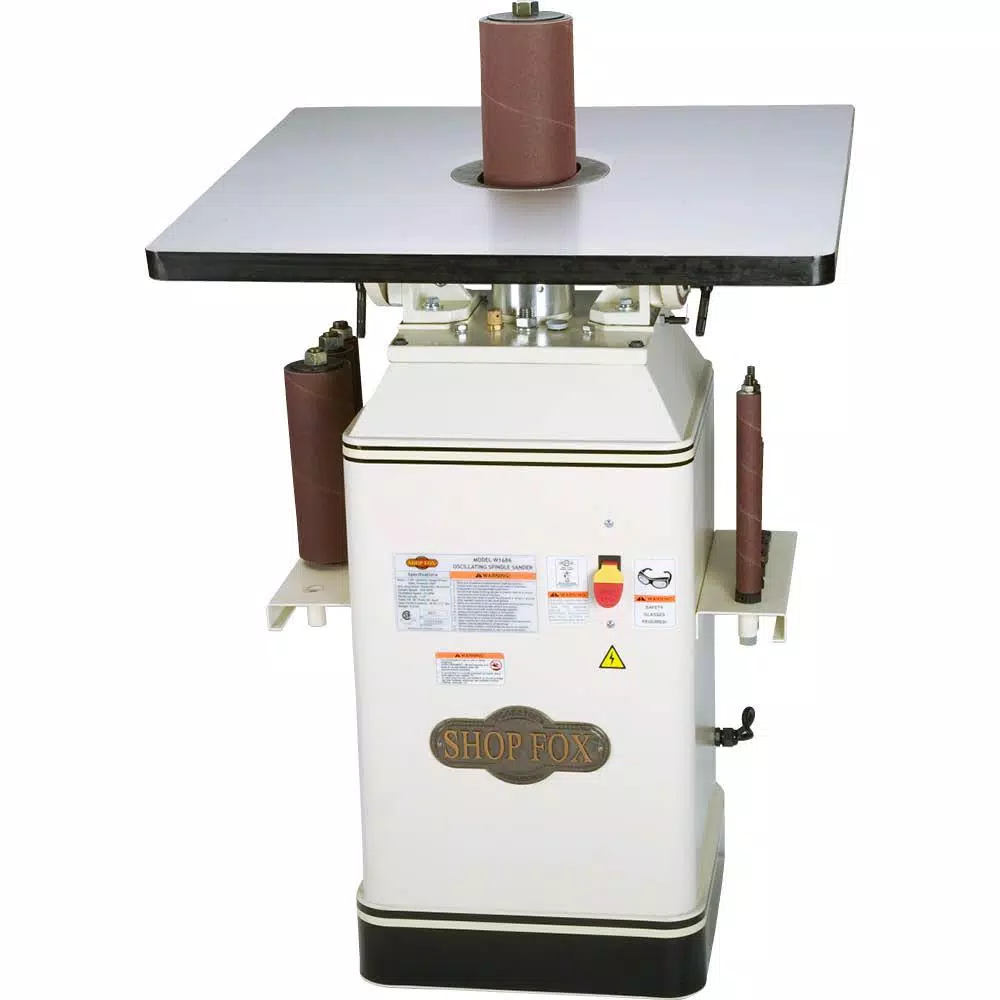

Shop Fox W1686 1 HP Oscillating Spindle Sander with 25.25 in. Cast-Iron Table
Engineered for high-capacity woodworking, this spindle sander features a massive 25.25 in. x 25.25 in. precision-ground cast-iron table. The heavy-duty trunnion assembly and 1 HP TEFC motor provide the stability and power needed to sculpt even the hardest woods and largest workpieces.
Money-back guarantee
Free 30-day returns
100% Authentic
Official brand warranty
Ships from USA
Fast US warehouse dispatch
Secure checkout
256-bit SSL encrypted
Description
Engineered for high-capacity woodworking, this spindle sander features a massive 25.25 in. x 25.25 in. precision-ground cast-iron table. The heavy-duty trunnion assembly and 1 HP TEFC motor provide the stability and power needed to sculpt even the hardest woods and largest workpieces.

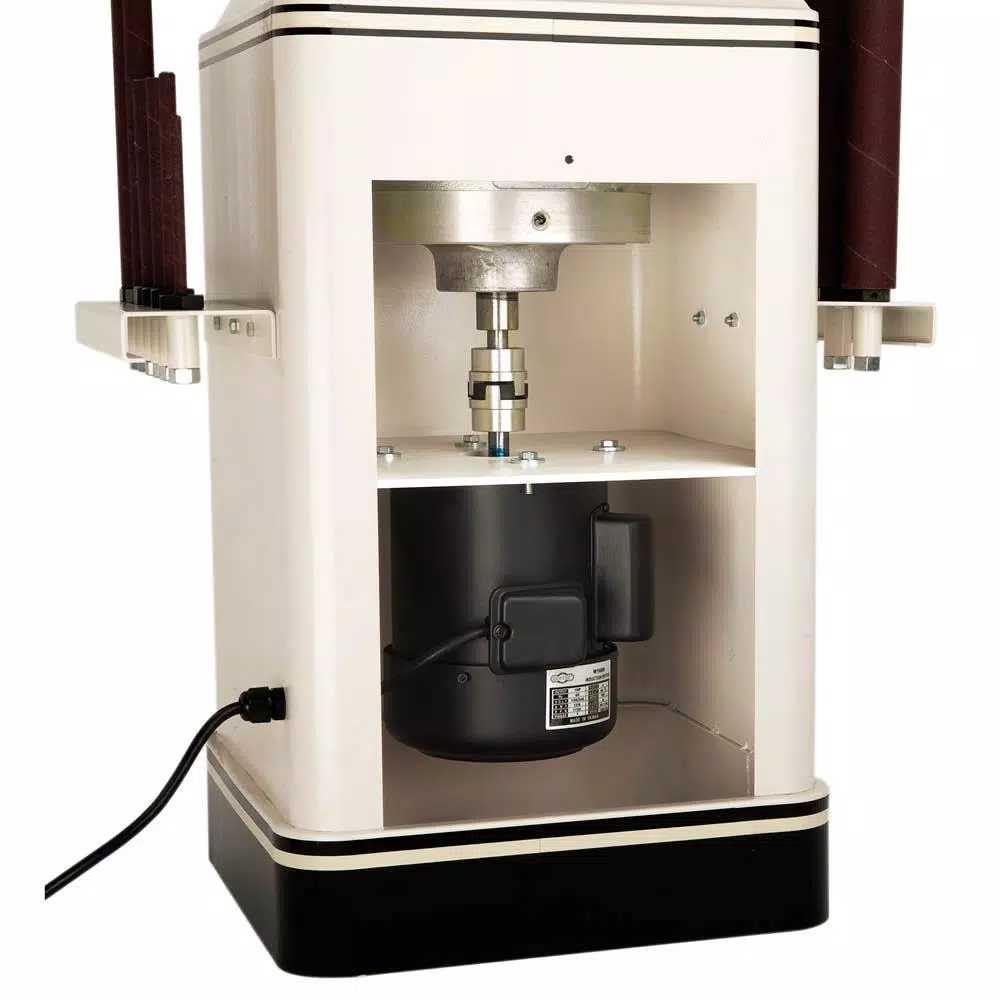

- Powerful 1 HP TEFC motor provides consistent performance for sculpting hard woods.
- Massive 25.25 in. x 25.25 in. precision-ground cast-iron table offers industry-leading capacity.

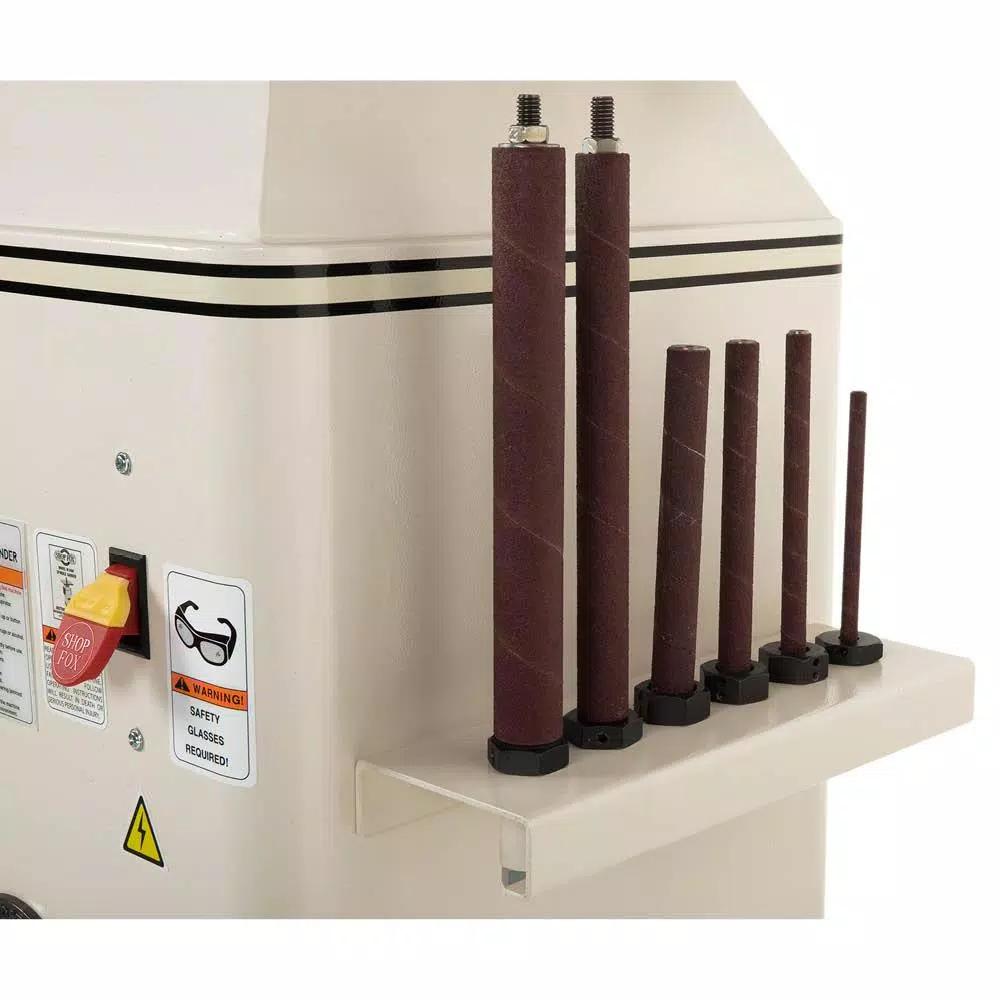

- Versatile spindle selection includes 10 different sizes ranging from 1/4 in. to 4 in. diameter.

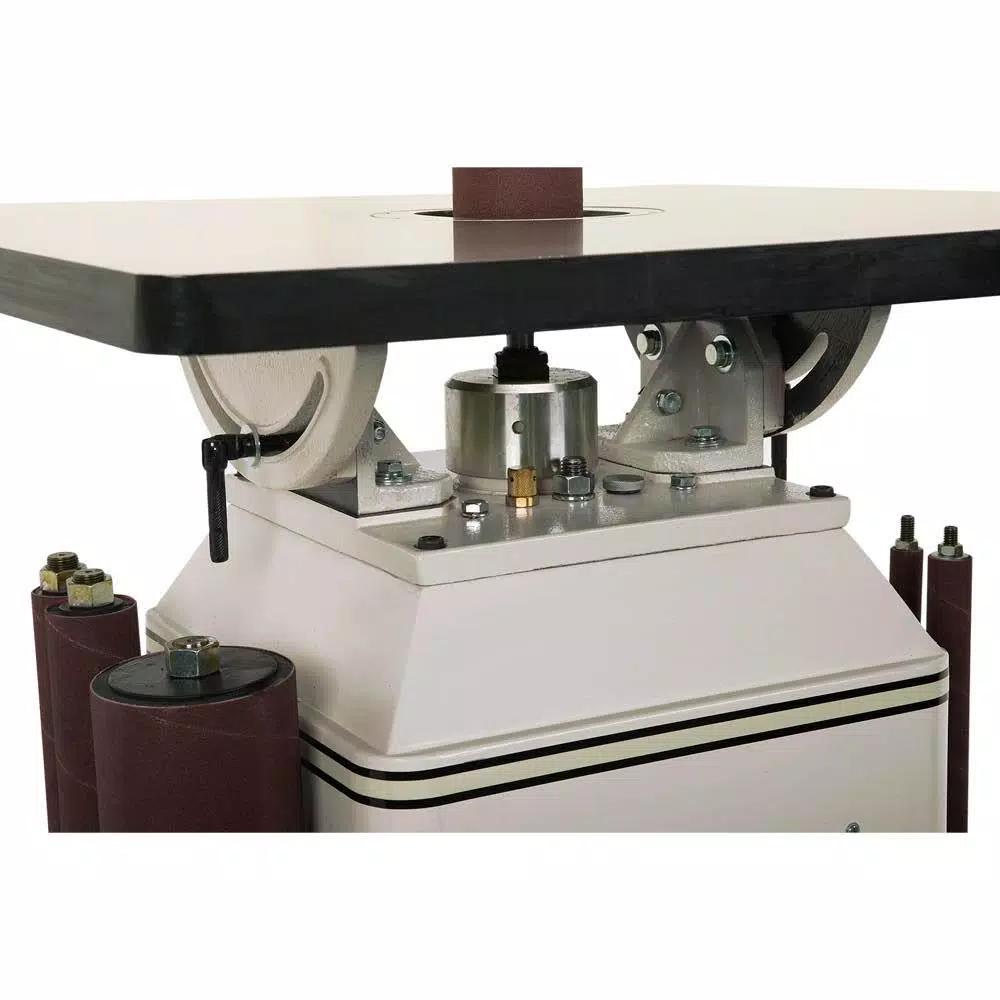

- Heavy-duty trunnion assembly effortlessly supports oversized and heavy workpieces.

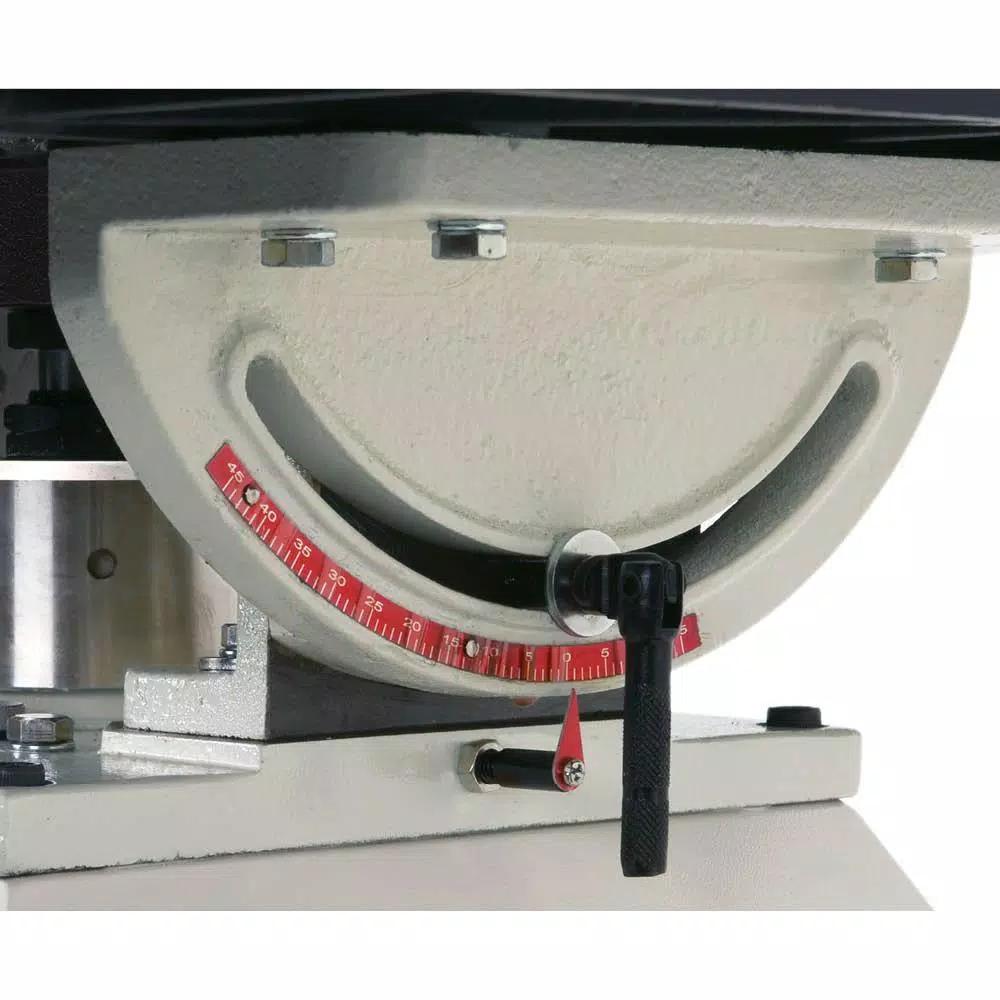

- Adjustable table tilts 45° forward and 20° backward for precise sanding angles.
- High-speed performance with 1725 rpm spindle speed and 72 spm oscillation.
- Dual voltage capability (120 V/240 V) with pre-wired 120 V for easy setup.

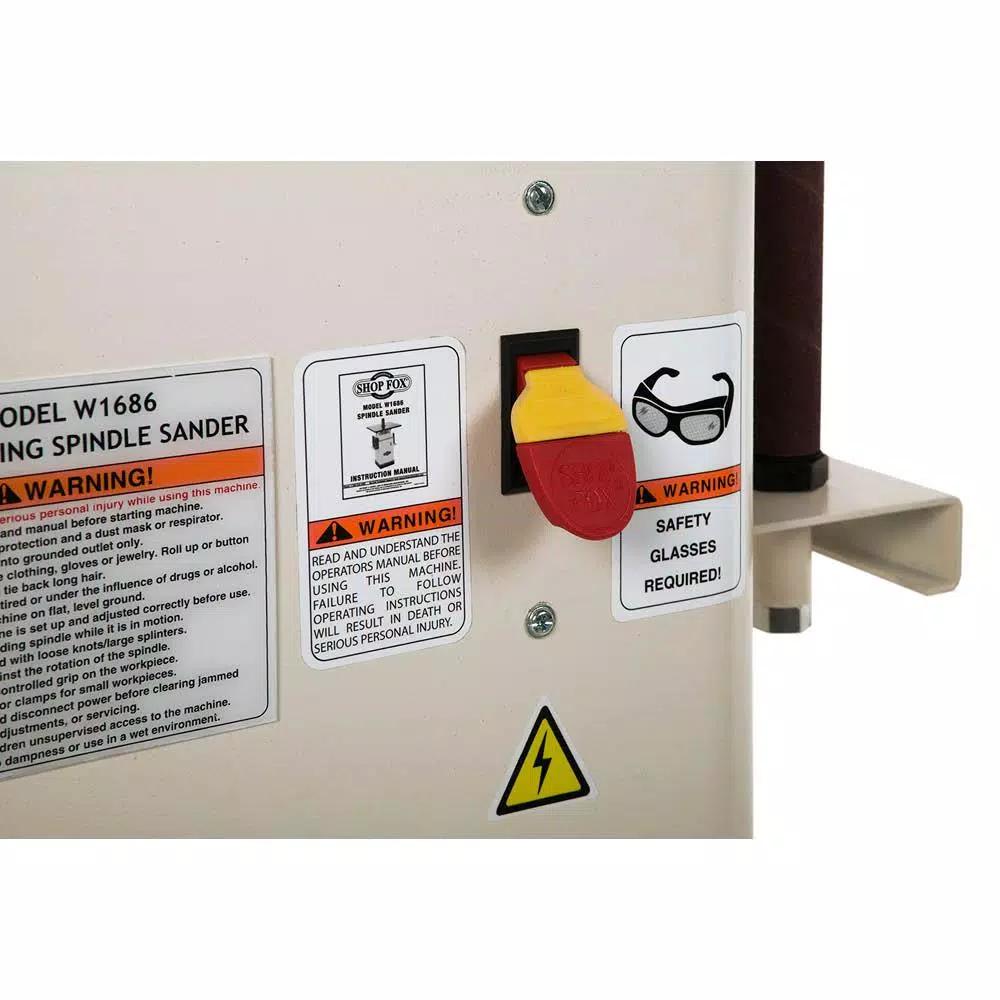

- Safety certified to CSA and UL standards for professional shop environments.
Specifications
Dust Collection Type
Port
Tools Product Type
Power Tool
Amperage
12 A
Variable Speed
No
Horsepower
1 hp
Color Family
White
Condition
New
Power Tool Features
Stand Included, Lockout Power Switch
Bench & Stationary Tool Type
Spindle Sander
Portability
Stationary
Cord Length
12 ft
Voltage
120 V
Reconditioned
No
Table Length
25.25 in
Spindle Height
5 in
Table Width
25.25 in
Spindle Diameter
0.25 in
Dimensions
26 × 28 × 37 in
Weight
287 lbs
