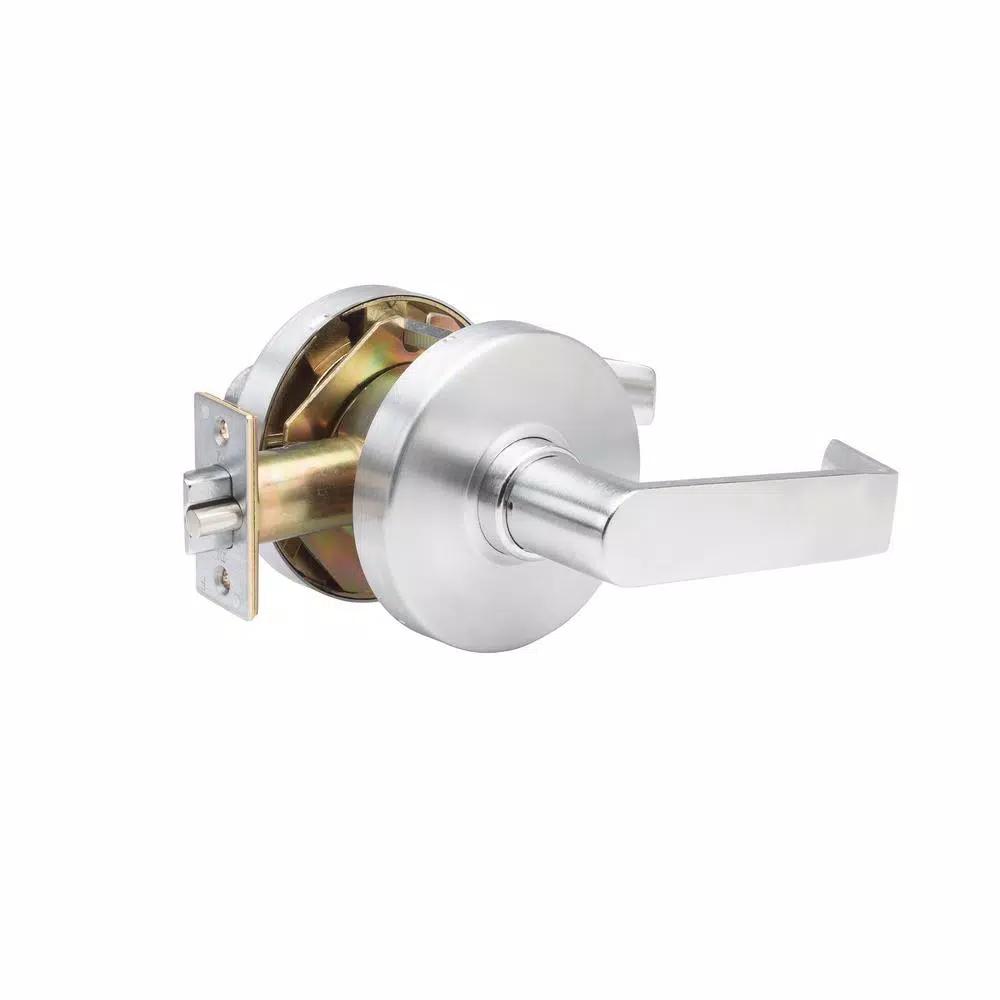

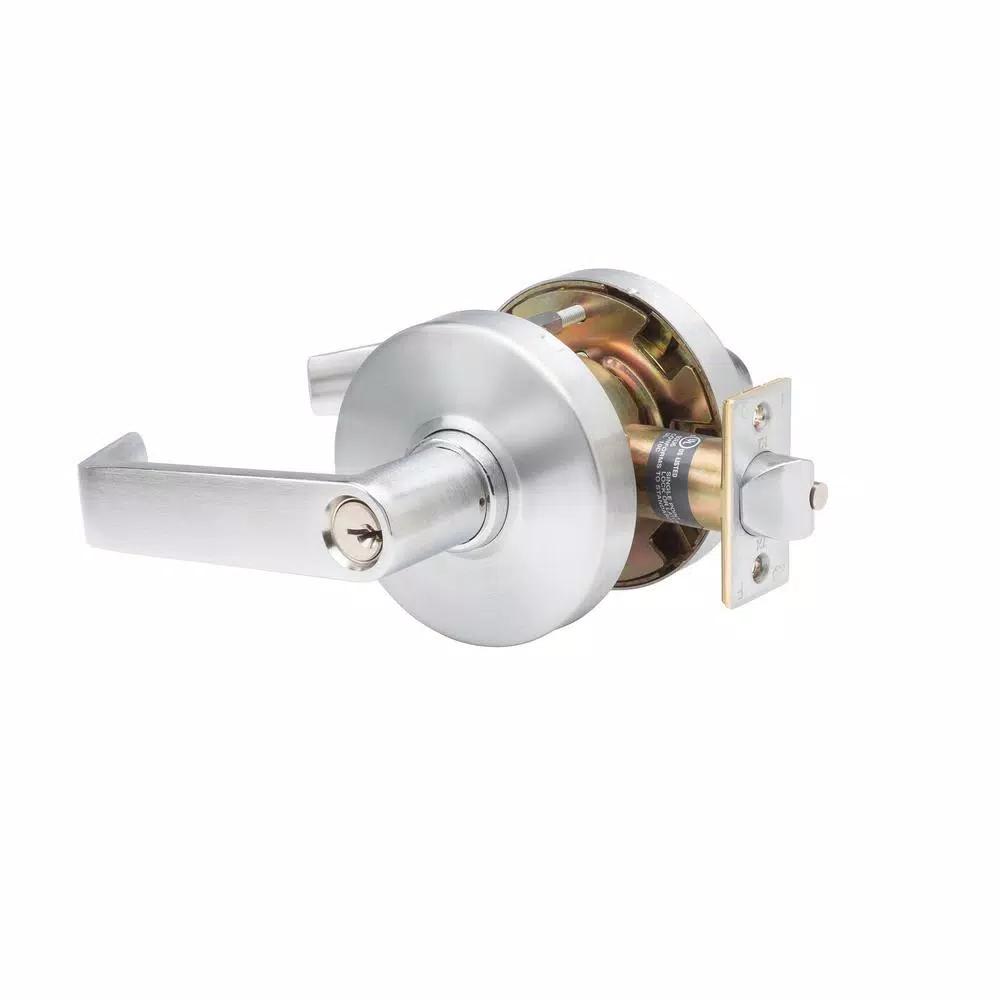

Engineered for high-traffic commercial environments, this ANSI Grade 1 cylindrical leverset features a vandal-resistant clutch mechanism. The storeroom function ensures constant security, requiring a key for entry while allowing the lever to rotate without unlatching.
Engineered for high-traffic commercial environments, this ANSI Grade 1 cylindrical leverset features a vandal-resistant clutch mechanism. The storeroom function ensures constant security, requiring a key for entry while allowing the lever to rotate without unlatching.
| Door Handing | Universal |
| Interior / Exterior | Interior/Exterior |
| Minimum Door Thickness | 1.75 in |
| Keyway | C |
| Security/ANSI Grade | ANSI Grade 1 |
| Features | Easy Installation |
| Door Lock Style | Modern |
| Backset Size | 2.75 in |
| Lever Material | Zinc |
| Strike | Square corner |
| Number of Pins | 6 |
| Hardware Finish Family | Chrome |
| Door Locks & Knobs Product Type | Keyed Levers |
| Material | Zinc |
| Combo Pac | Non-Combo |
| Total Number of Keys Included | 2 |
| Lock Type | Keyed Entry |
| Electronic / Mechanical | Mechanical |

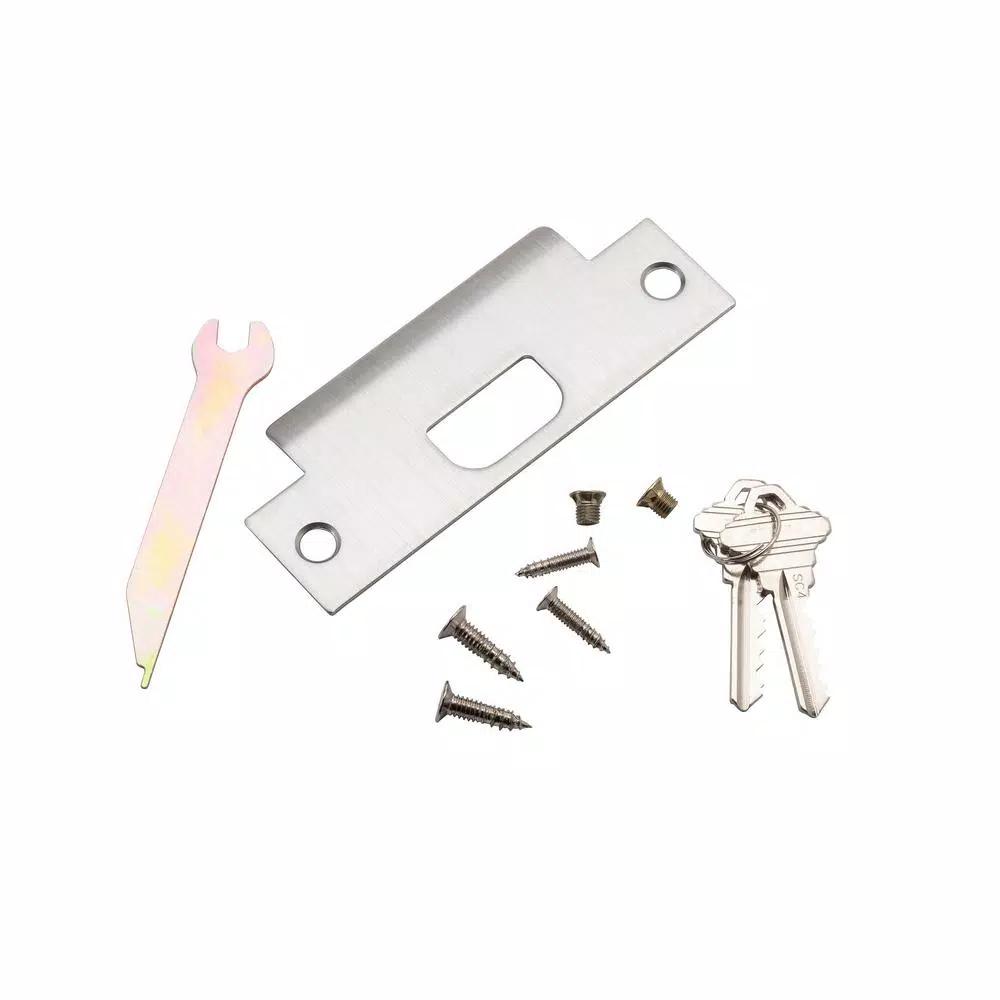

| Included | Hardware, Installation Instructions |
| Wired or Wireless | No electrical connectivity |
| Application Type | Entry |
| Finish | Brushed Chrome |
| Commercial/Residential | Commercial |
| Lever Style | Straight |
| Housing Width | 2.25 in |
| Housing Height | 2.25 in |
| Assembled Depth | 7.5 in |
| Lever Grip Length | 5 in |
| Strike Height | 4.875 in |
| Strike Width | 1.25 in |
| Assembled Width | 6.25 in |
| Maximum Door Thickness | 2 in |
| Cross Bore Diameter | 2.125 in |
| Throw Length | 0.5 in |
| Projection | 3 in |
| Assembled Height | 3.5 in |
| Bore Hole Diameter | 2.125 in |
| Weight | 3.4 lbs |
| Length | 9 in |
| Width | 20 in |
| Height | 9 in |
