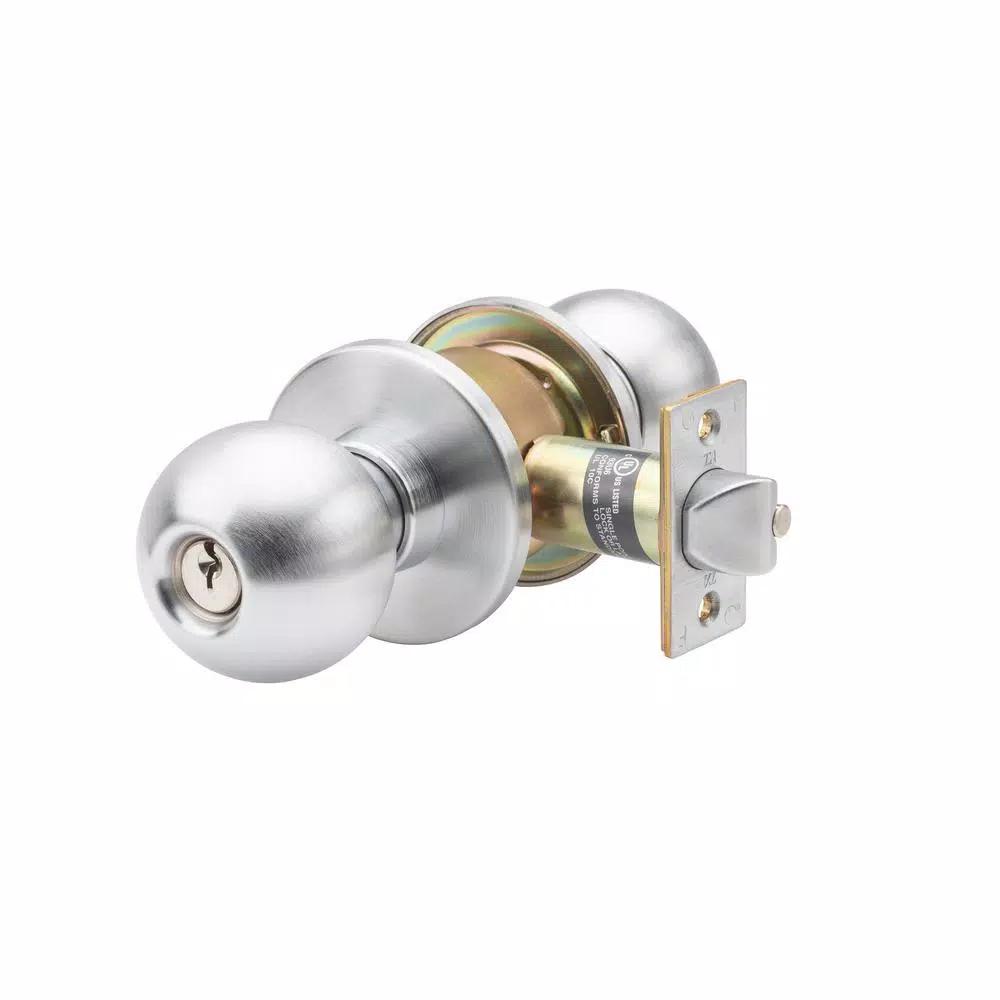

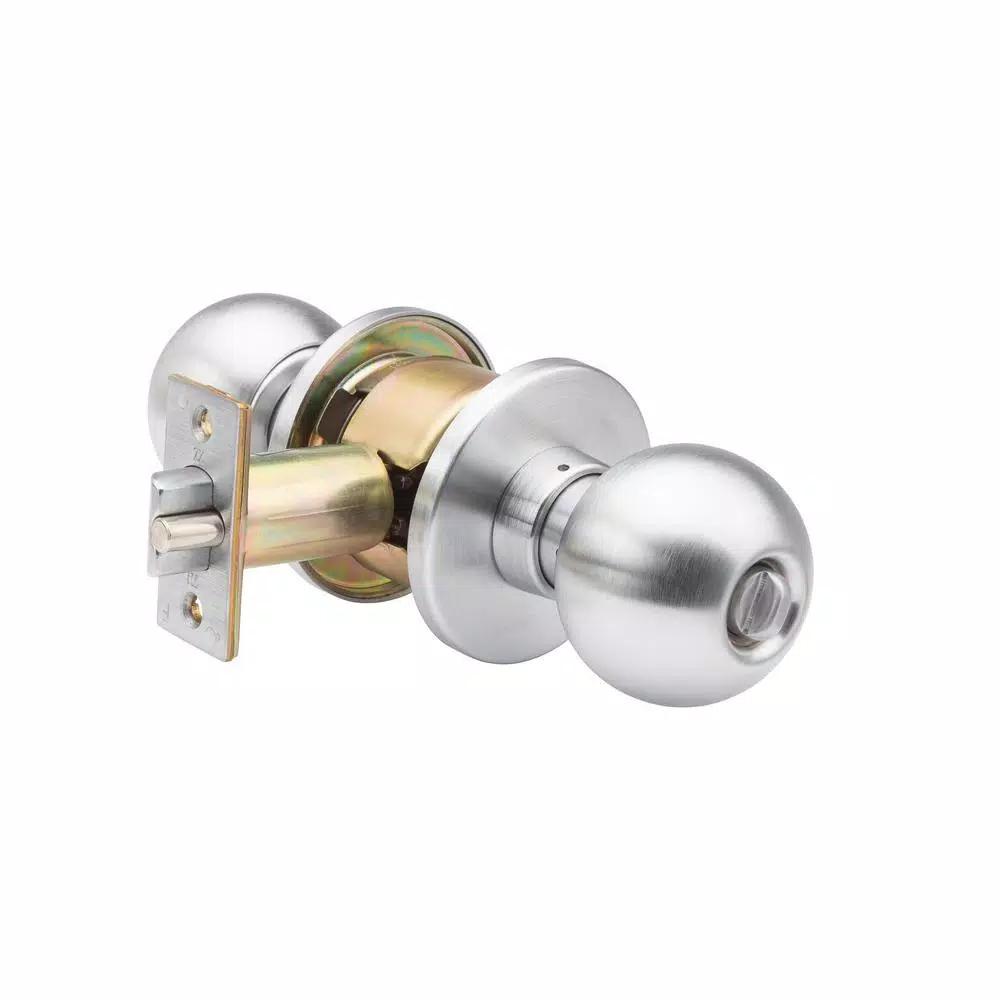

Engineered for heavy-duty commercial applications, this ANSI Grade 1 cylindrical knob provides superior security and durability. The keyed entry function features an interior push button for privacy and a solid brass cylinder for reliable performance.
Engineered for heavy-duty commercial applications, this ANSI Grade 1 cylindrical knob provides superior security and durability. The keyed entry function features an interior push button for privacy and a solid brass cylinder for reliable performance.
| Interior / Exterior | Interior/Exterior |
| Minimum Door Thickness | 1.75 in |
| Keyway | C |
| Security/ANSI Grade | ANSI Grade 1 |
| Features | Rekeying Lock |
| Door Lock Style | Modern |
| Backset Size | 2.75 in |
| Strike | Square corner |
| Number of Pins | 6 |
| Knob Material | Metal |
| Hardware Finish Family | Stainless Steel |
| Door Locks & Knobs Product Type | Keyed Knobs |
| Material | Stainless Steel |
| Combo Pac | Non-Combo |
| Total Number of Keys Included | 2 |
| Knob Style | Full ball |
| Lock Type | Keyed Entry |
| Electronic / Mechanical | Mechanical |

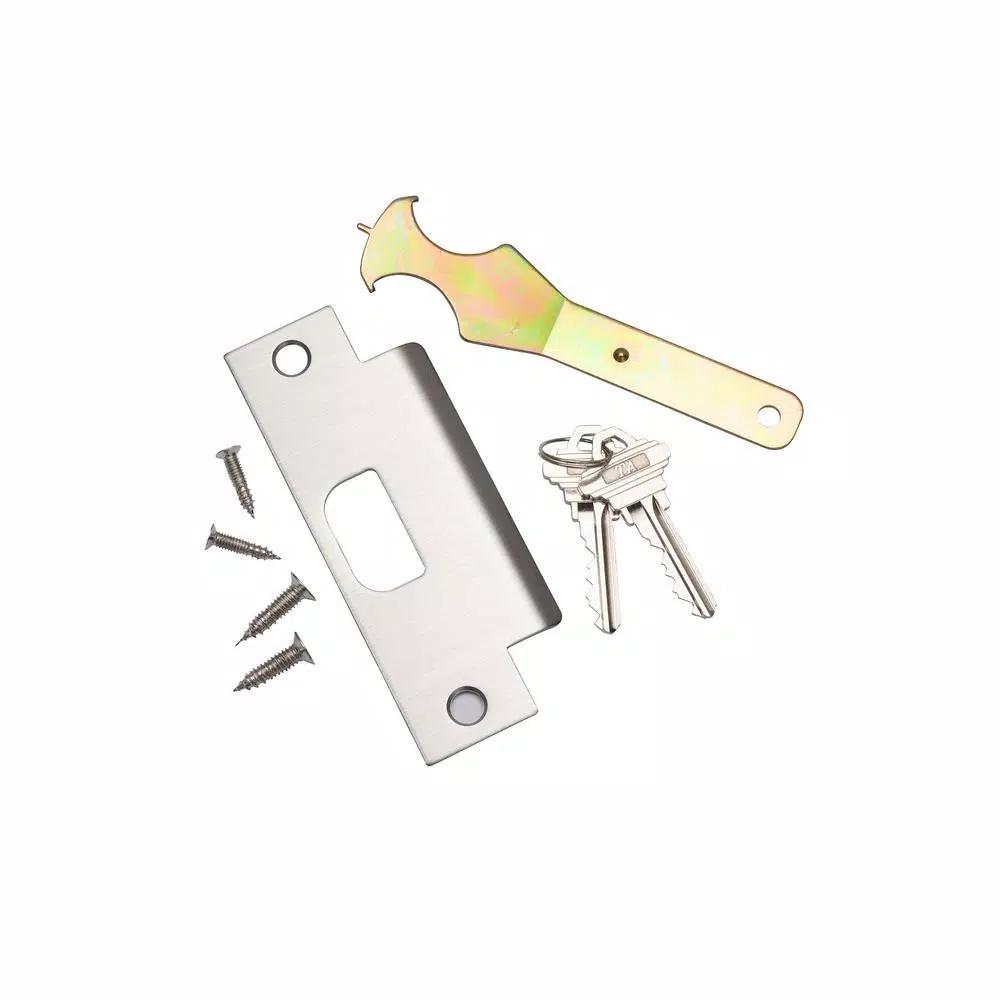

| Included | Hardware |
| Application Type | Entry |
| Finish | Satin Stainless Steel |
| Commercial/Residential | Commercial |
| Knob Cross Bore Diameter | 2.125 in |
| Knob Housing Width | 2.25 in |
| Knob Housing Height | 2.25 in |
| Knob Diameter | 2.50 in |
| Assembled Depth | 7.50 in |
| Strike Height | 4.875 in |
| Strike Width | 1.25 in |
| Assembled Width | 3 in |
| Maximum Door Thickness | 2.00 in |
| Projection | 3 in |
| Throw Length | 0.5 in |
| Assembled Height | 3 in |
| Bore Hole Diameter | 2.125 in |
| Weight | 2.4 lbs |
| Length | 9 in |
| Width | 20 in |
| Height | 9 in |
