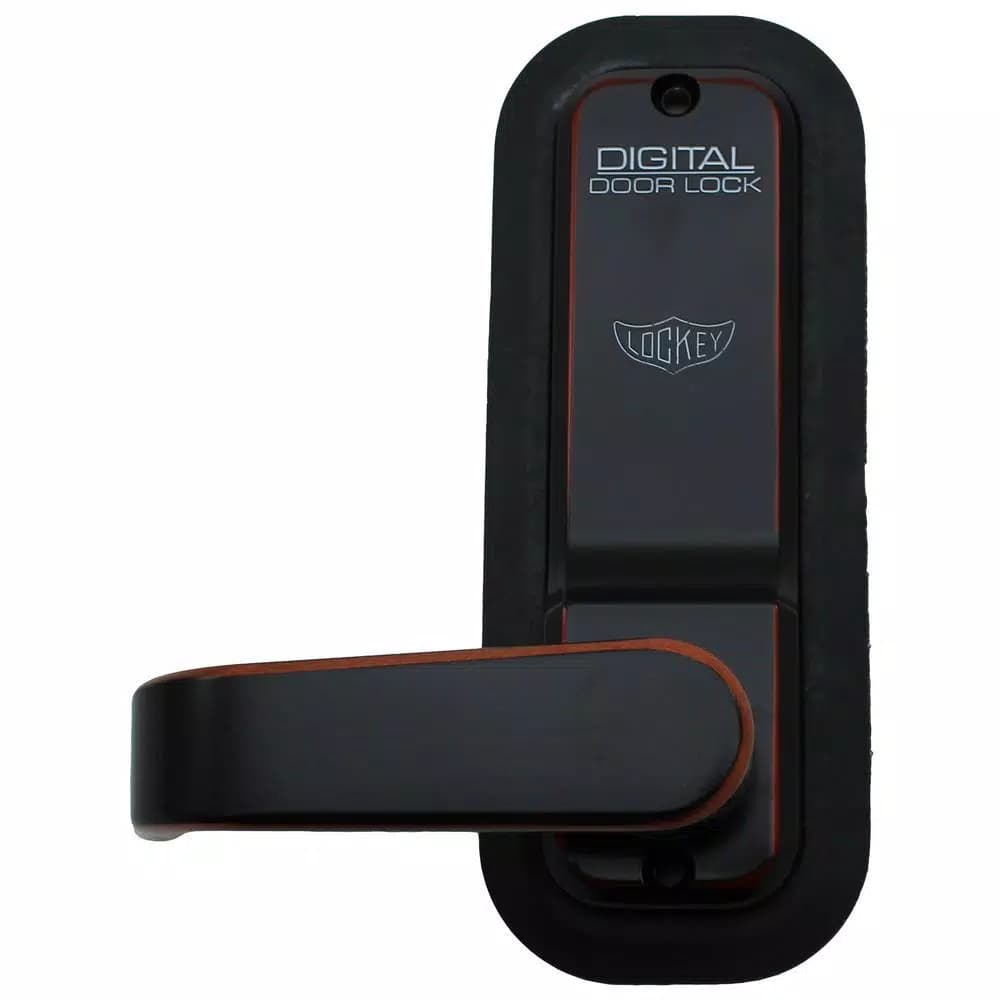

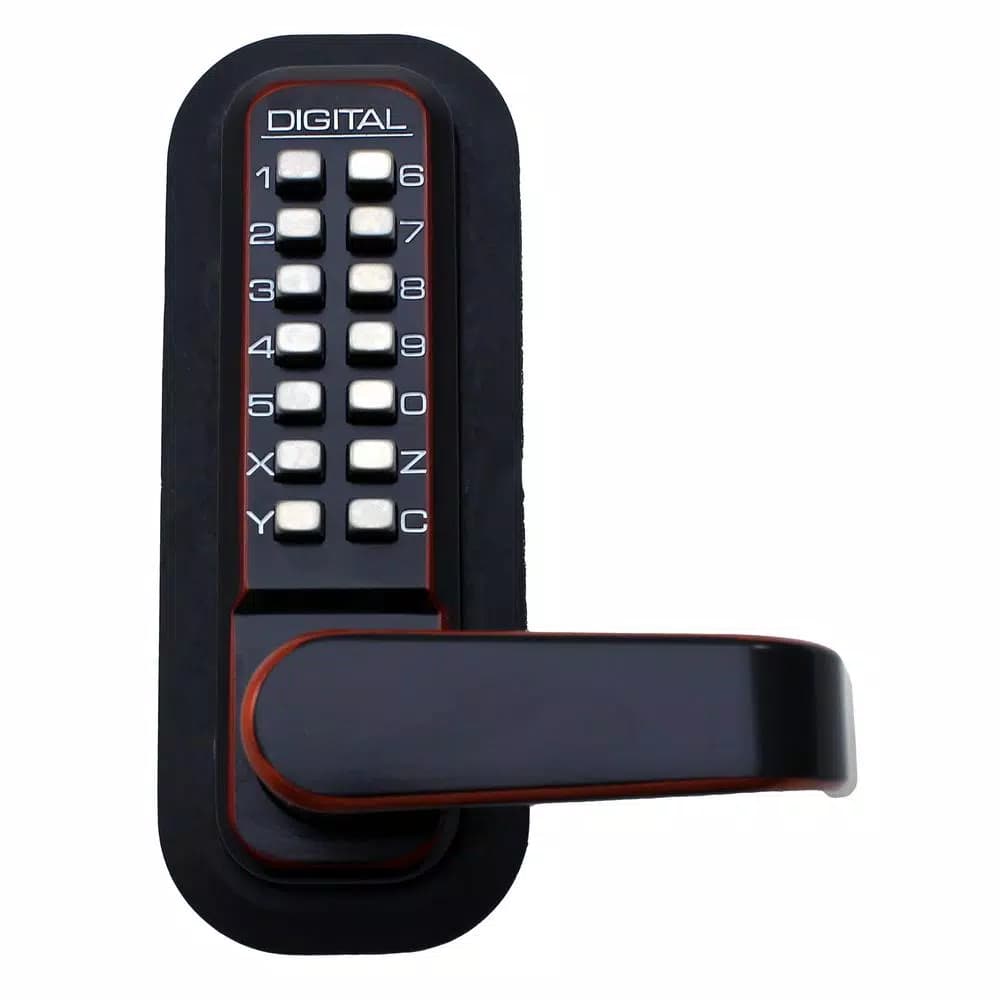

Experience ultimate peace of mind with this 100% mechanical programmable passcode door lock, designed for high-performance security without the need for batteries. The weather-resistant Oil Rubbed Bronze finish and ADA-compliant lever make it ideal for both residential and commercial applications, including offices and gates.
Experience ultimate peace of mind with this 100% mechanical programmable passcode door lock, designed for high-performance security without the need for batteries. The weather-resistant Oil Rubbed Bronze finish and ADA-compliant lever make it ideal for both residential and commercial applications, including offices and gates.
| Door Handing | Universal |
| Interior / Exterior | Interior/Exterior |
| Minimum Door Thickness | 1.38 in |
| Keyway | No Keyway |
| Features | Easy Installation, Adjustable Backset, Automatic Relocking, Combination |
| Door Lock Style | Modern |
| Backset Size | Adjustable |
| Hardware Finish Family | Bronze |
| Door Locks & Knobs Product Type | Unkeyed Handlesets |
| Material | Zinc |
| Keying Type | Keyed Different |
| Lock Type | Unkeyed |
| Electronic / Mechanical | Mechanical |
| Knob / Lever Strike | Square Corner |
| Included | Hardware, Installation Instructions |
| Application Type | Entry, Passage |
| Finish | Oil Rubbed Bronze |
| Commercial/Residential | Commercial, Residential |
| Lever Style | Straight |
| Handleset Product Type | 1 Piece Front & Back |
| Knob / Lever Housing Width | 2.5 in |
| Knob / Lever Bore Hole Diameter | 2.125 in |
| Outside Handle and Key Plate Width | 1.625 in |
| Handle Grip Length | 1 in |
| Inside Plate Length | 5.625 in |
| Knob / Lever Strike Height | 2 in |
| Knob / Lever Throw Length | 2 in |
| Knob / Lever Strike Width | 1 in |
| Assembled Depth | 2.25 in |
| Assembled Width | 1.63 in |
| Lever Grip Length | 4 in |
| Assembled Height | 5.5 in |
| Knob / Lever Housing Height | 6.5 in |
| Inside Plate Width | 1.625 in |
| Knob / Lever Cross Bore Diameter | 1 in |
| Outside Handle Plate On - Center Measurement | 4 in |
| Projection | 3 in |
| Outside Handle and Key Plate Length | 5.625 in |
| Weight | 3 lbs |
| Length | 3 in |
| Width | 9 in |
| Height | 8 in |
