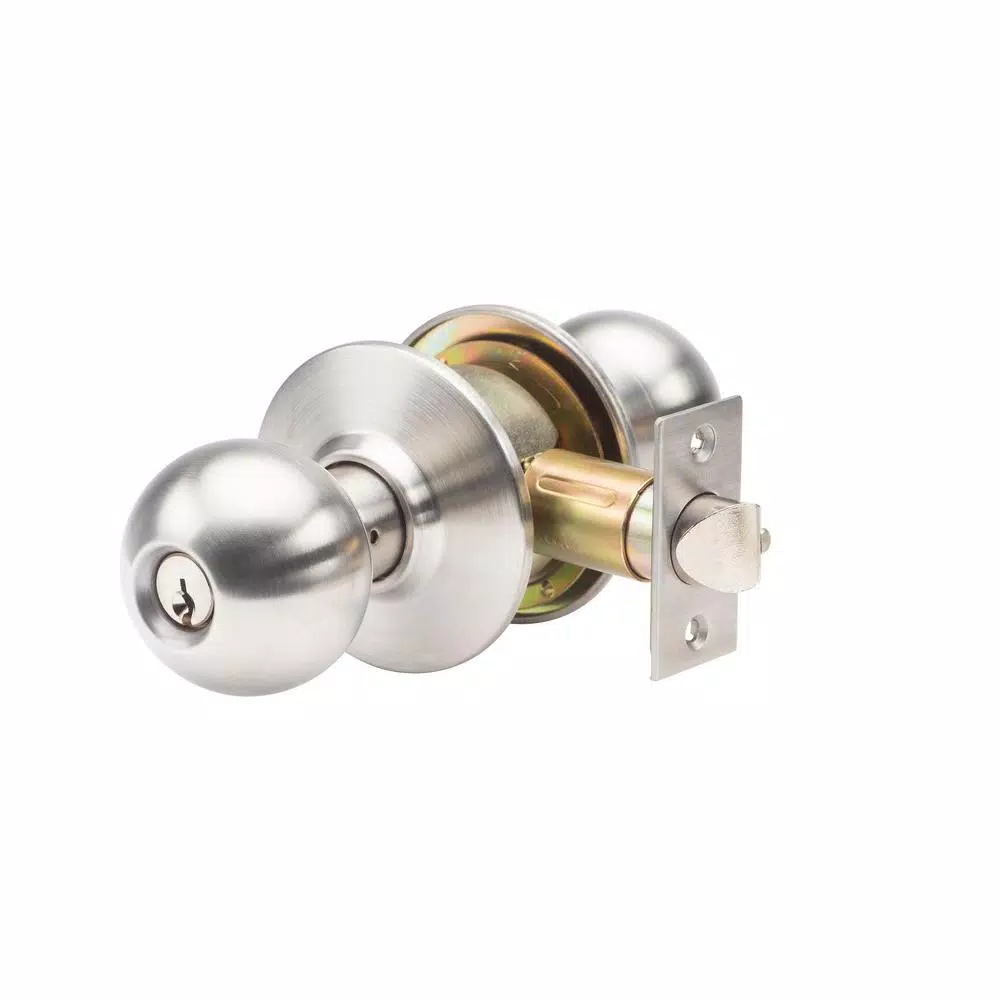

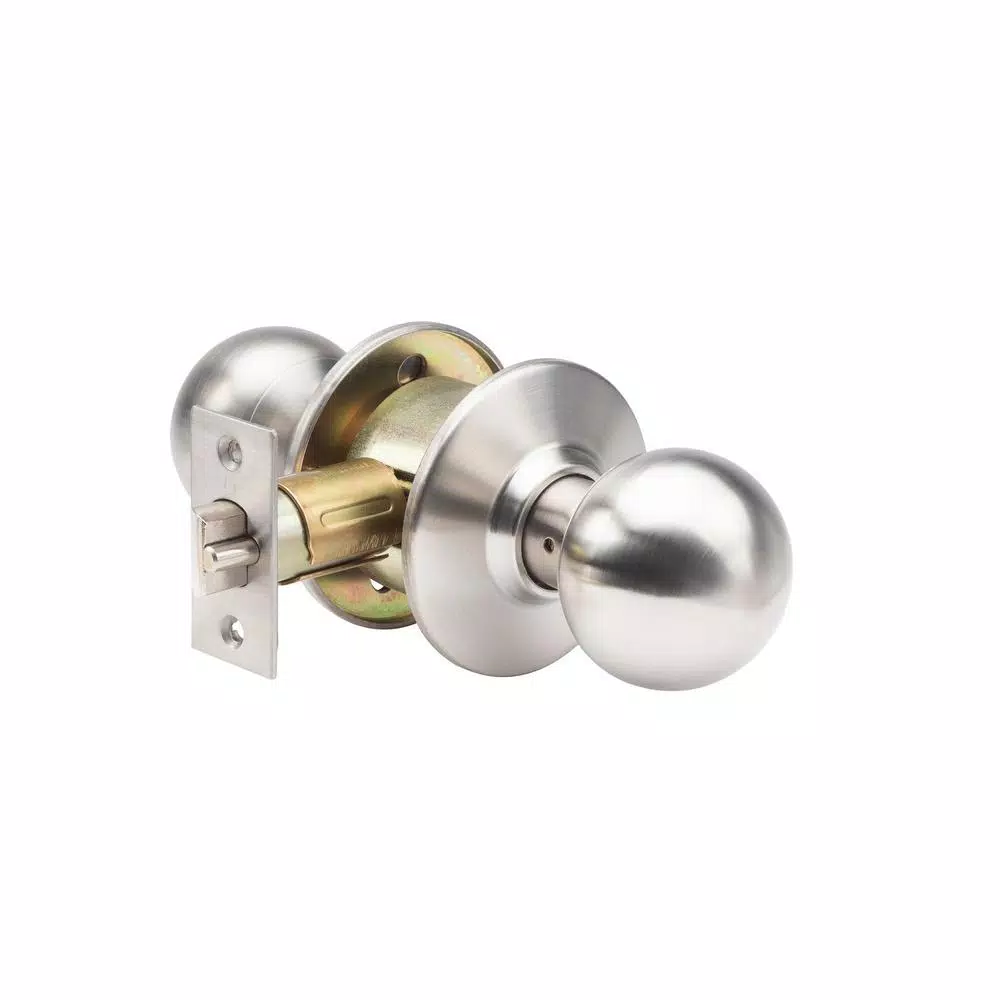

Engineered for standard Grade 2 commercial applications, this Trans Atlantic DL-SVB series knob provides reliable classroom function security. The durable stainless steel construction ensures long-lasting performance in high-traffic environments.
Engineered for standard Grade 2 commercial applications, this Trans Atlantic DL-SVB series knob provides reliable classroom function security. The durable stainless steel construction ensures long-lasting performance in high-traffic environments.
| Interior / Exterior | Interior/Exterior |
| Minimum Door Thickness | 1.75 in |
| Keyway | C |
| Security/ANSI Grade | ANSI Grade 2 |
| Features | Easy Installation |
| Door Lock Style | Classic |
| Strike | Square corner |
| Knob Material | Zinc |
| Hardware Finish Family | Stainless Steel |
| Door Locks & Knobs Product Type | Classroom Knobs |
| Material | Stainless Steel |
| Combo Pac | Non-Combo |
| Total Number of Keys Included | 2 |
| Knob Style | Full ball |
| Electronic / Mechanical | Mechanical |

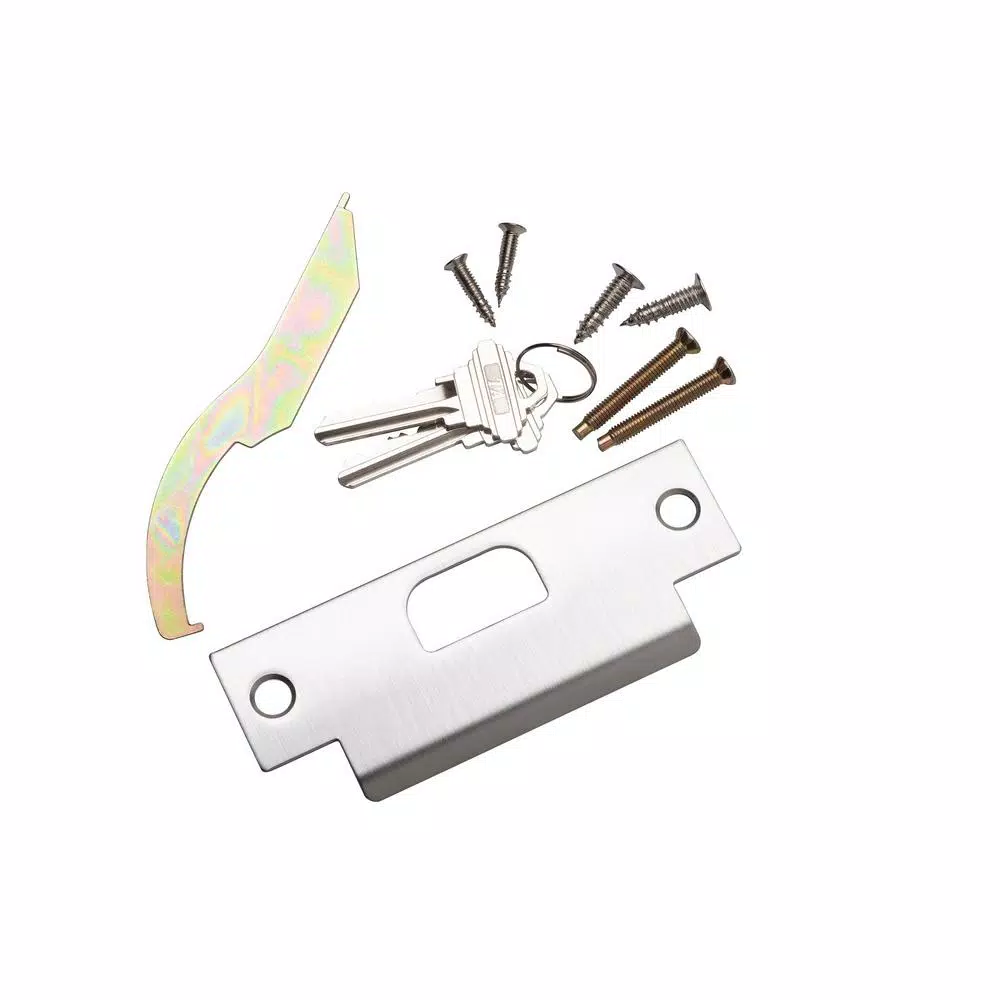

| Included | Hardware |
| Application Type | Classroom |
| Finish | Stainless Steel |
| Commercial/Residential | Commercial |
| Knob Cross Bore Diameter | 2.125 in |
| Knob Housing Width | 2.25 in |
| Knob Housing Height | 2.25 in |
| Knob Diameter | 2.5 in |
| Assembled Depth | 7 in |
| Strike Height | 4.875 in |
| Strike Width | 1.25 in |
| Assembled Width | 3 in |
| Maximum Door Thickness | 2 in |
| Projection | 3 in |
| Throw Length | 0.5 in |
| Assembled Height | 3 in |
| Bore Hole Diameter | 2.125 in |
| Weight | 2.3 lbs |
| Length | 3 in |
| Width | 3 in |
| Height | 5 in |
