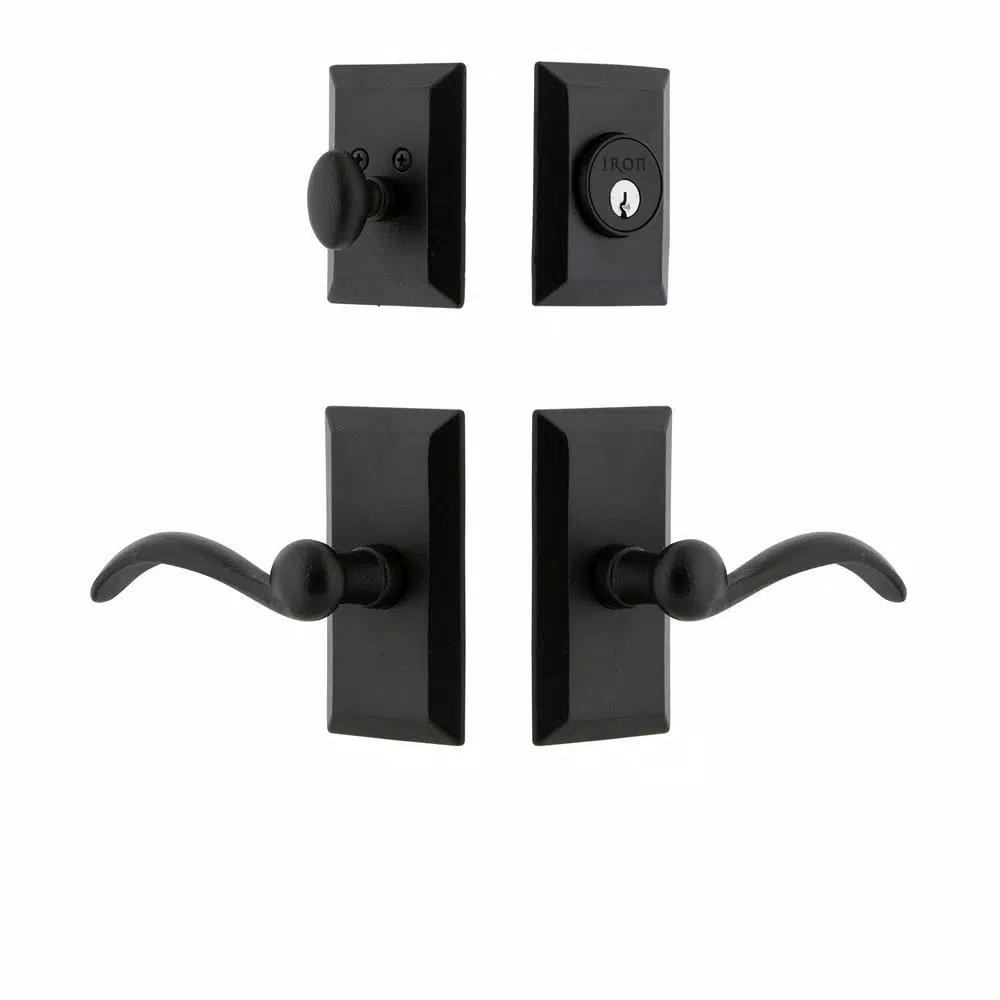

Elevate your entryway with the elegant curves of the Tine Lever paired with the refined Vale short plate. This durable cast iron handleset includes a matching single cylinder deadbolt for enhanced security and a hand-finished texture for a unique, rustic aesthetic.
Elevate your entryway with the elegant curves of the Tine Lever paired with the refined Vale short plate. This durable cast iron handleset includes a matching single cylinder deadbolt for enhanced security and a hand-finished texture for a unique, rustic aesthetic.
Door Handing
Left-Handed
Interior / Exterior
Interior/Exterior
Minimum Door Thickness
1.75 in
Door Lock Style
Rustic
Backset Size
2.375 in
Hardware Finish Family
Black
Door Locks & Knobs Product Type
Keyed Handlesets
Material
Cast Iron
Total Number of Keys Included
2
Knob / Lever Strike
Square Corner
Included
Mounting Hardware, Hardware, Installation Instructions
Lock Type
Keyed Entry
Application Type
Entry
Deadbolt Type
Single Cylinder Deadbolt
Deadbolt Strike
Square Corner
Finish
Black Iron
Commercial/Residential
Residential
Lever Style
Wave
Handleset Product Type
2 Piece Front & Back
Knob / Lever Housing Width
2.5 in
Outside Key Plate Width
2.5 in
Outside Bottom Handle Plate Length
4.75 in
Inside Top Plate Length
3.5 in
Knob / Lever Bore Hole Diameter
2.125 in
Deadbolt Strike Width
1 in
Outside Key Plate Length
3.5 in
Handle Grip Length
0 in
Inside Top Plate Width
2.5 in
Deadbolt Strike Height
2.25 in
Outside Top Handle Plate Length
4.75 in
Knob / Lever Strike Height
2.25 in
Knob / Lever Throw Length
0.5 in
Knob / Lever Strike Width
1 in
Assembled Depth
2.75 in
Assembled Width
2.5 in
Lever Grip Length
4.625 in
Deadbolt Bore Hole Diameter
2.125 in
Deadbolt Trim Ring Diameter
2.5 in
Outside Top Handle Plate Width
2.5 in
Outside Bottom Handle Plate Width
2.5 in
Deadbolt Throw Length
1 in
Knob / Lever Cross Bore Diameter
1 in
Knob / Lever Housing Height
4.75 in
Assembled Height
9.63 in
Deadbolt Cross Bore Diameter
1 in
Maximum Door Thickness
2.0 in
Projection
2.75 in
Dimensions
5.5 × 9 × 5 in
Weight
6.25 lbs
