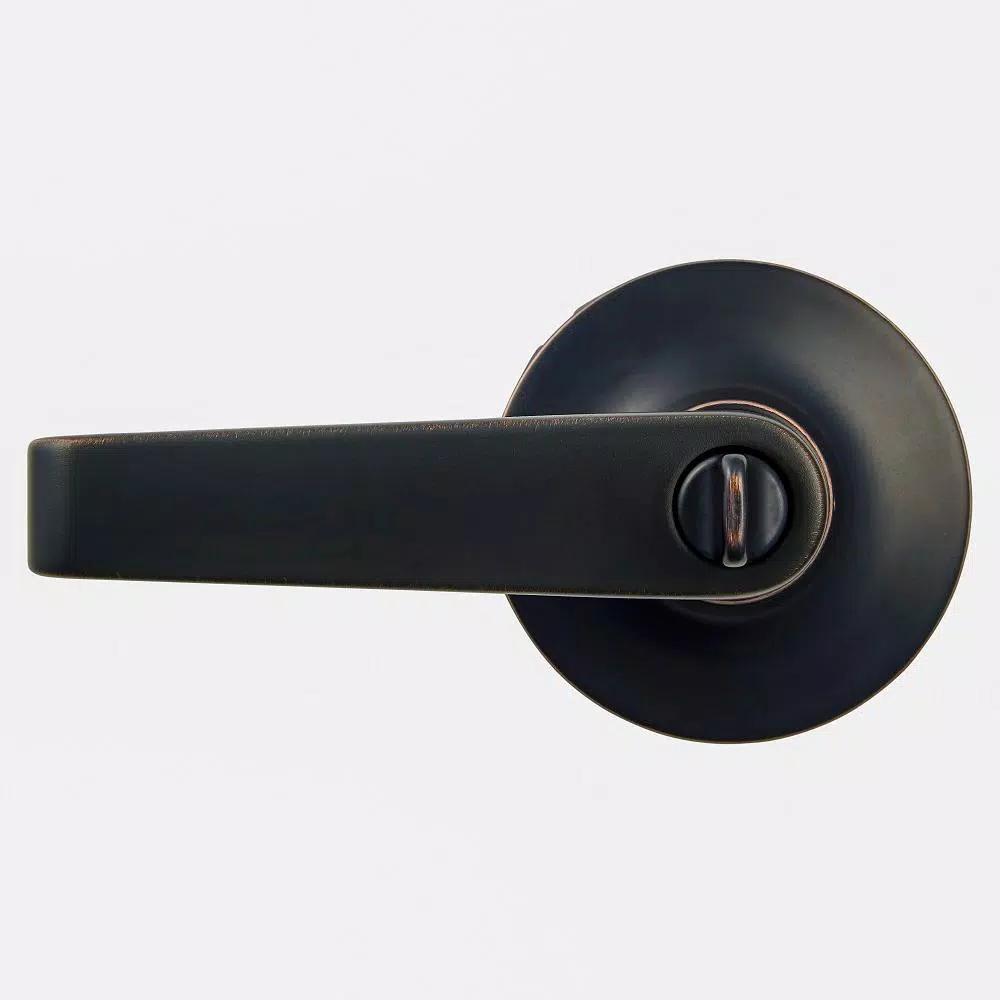

This durable, all-metal tubular chassis keyed entry lever provides secure access with a thumb turn interior and key exterior. Designed for both light commercial and residential use, it meets ANSI Grade 2 standards and is UL fire rated for 3 hours.
This durable, all-metal tubular chassis keyed entry lever provides secure access with a thumb turn interior and key exterior. Designed for both light commercial and residential use, it meets ANSI Grade 2 standards and is UL fire rated for 3 hours.
| Door Handing | Universal |
| Interior / Exterior | Interior/Exterior |
| Minimum Door Thickness | 1.375 in |
| Keyway | No Keyway |
| Security/ANSI Grade | ANSI Grade 2 (Better) |
| Features | Easy Installation |
| Door Lock Style | Classic |
| Backset Size | 2-3/4 in |
| Lever Material | Zinc |
| Strike | Square corner |
| Number of Pins | 5 |
| Hardware Finish Family | Bronze |
| Door Locks & Knobs Product Type | Keyed Levers |
| Material | Steel |
| Combo Pac | Non-Combo |
| Total Number of Keys Included | 2 |
| Lock Type | Keyed Entry |
| Electronic / Mechanical | Mechanical |
| Included | Hardware, Installation Instructions |
| Wired or Wireless | No electrical connectivity |
| Application Type | Entry |
| Finish | Aged Bronze |
| Commercial/Residential | Commercial, Residential |
| Lever Style | Straight |
| Housing Width | 2.75 in |
| Housing Height | 2.75 in |
| Assembled Depth | 2.75 in |
| Lever Grip Length | 4 in |
| Strike Height | 2.75 in |
| Strike Width | 1 in |
| Assembled Width | 6.5 in |
| Assembled Height | 2.75 in |
| Maximum Door Thickness | 2 in |
| Cross Bore Diameter | 2.125 in |
| Throw Length | 0.5 in |
| Projection | 2.5 in |
| Bore Hole Diameter | 2.375 in |
| Weight | 2.48 lbs |
| Length | 3 in |
| Width | 6.9 in |
| Height | 9.55 in |
