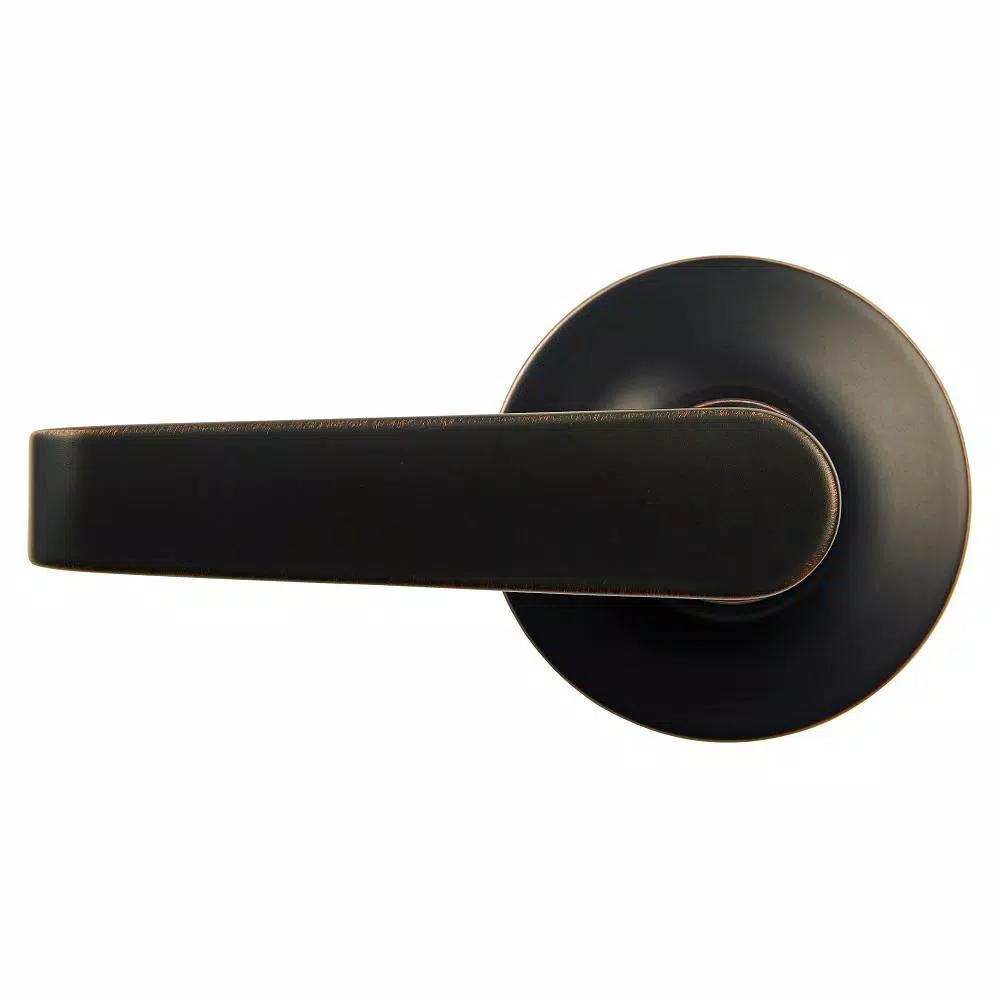

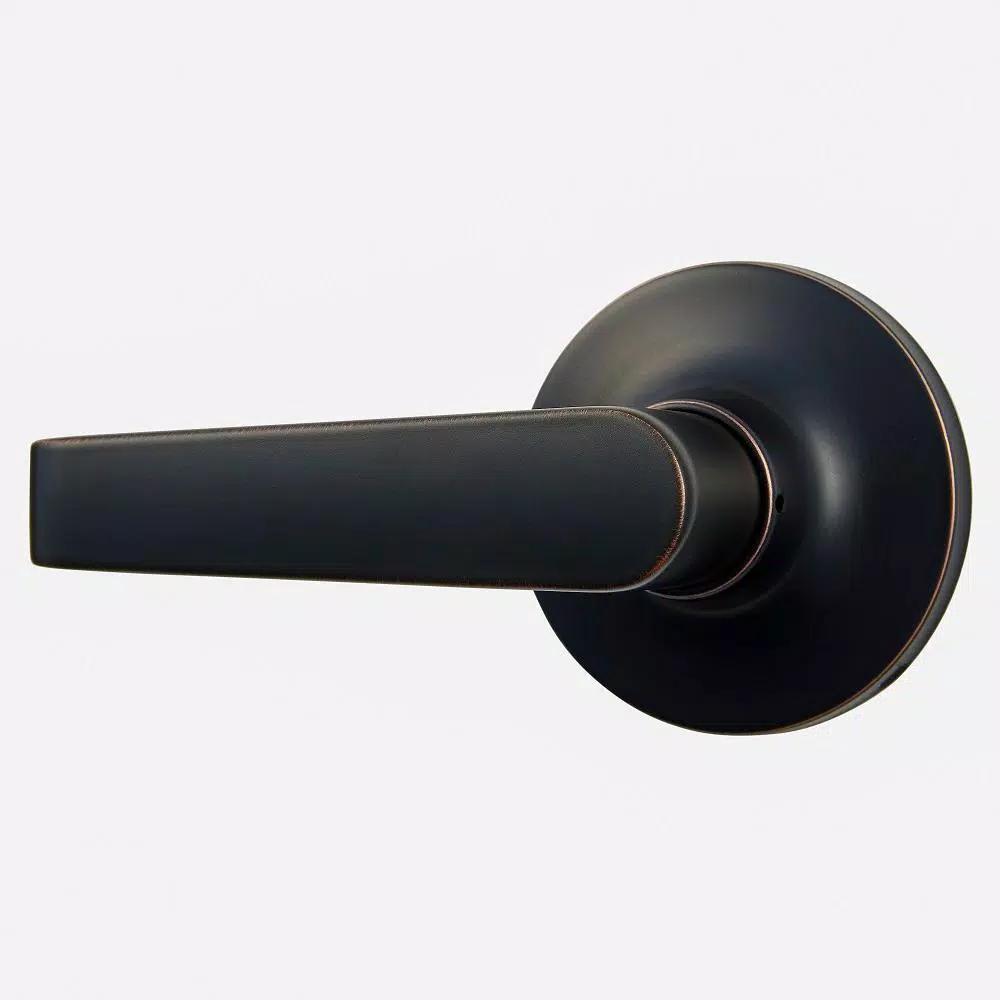

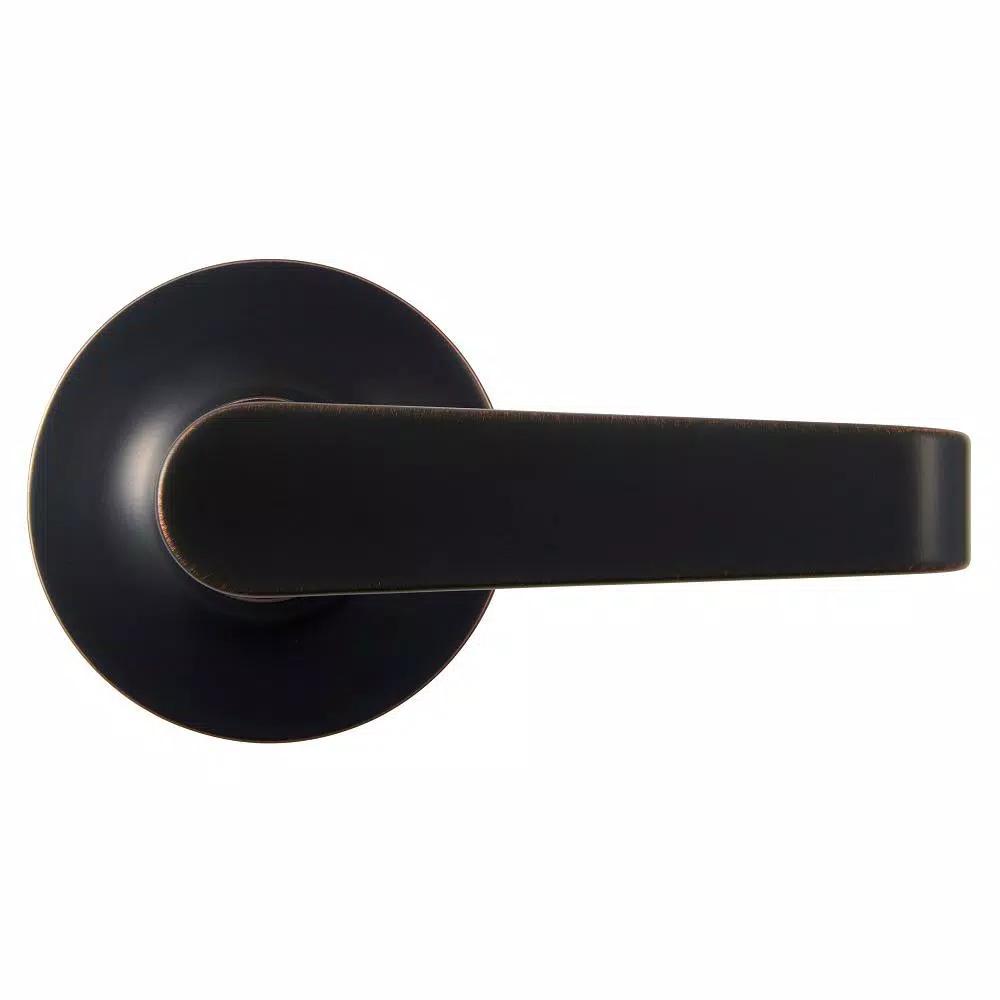

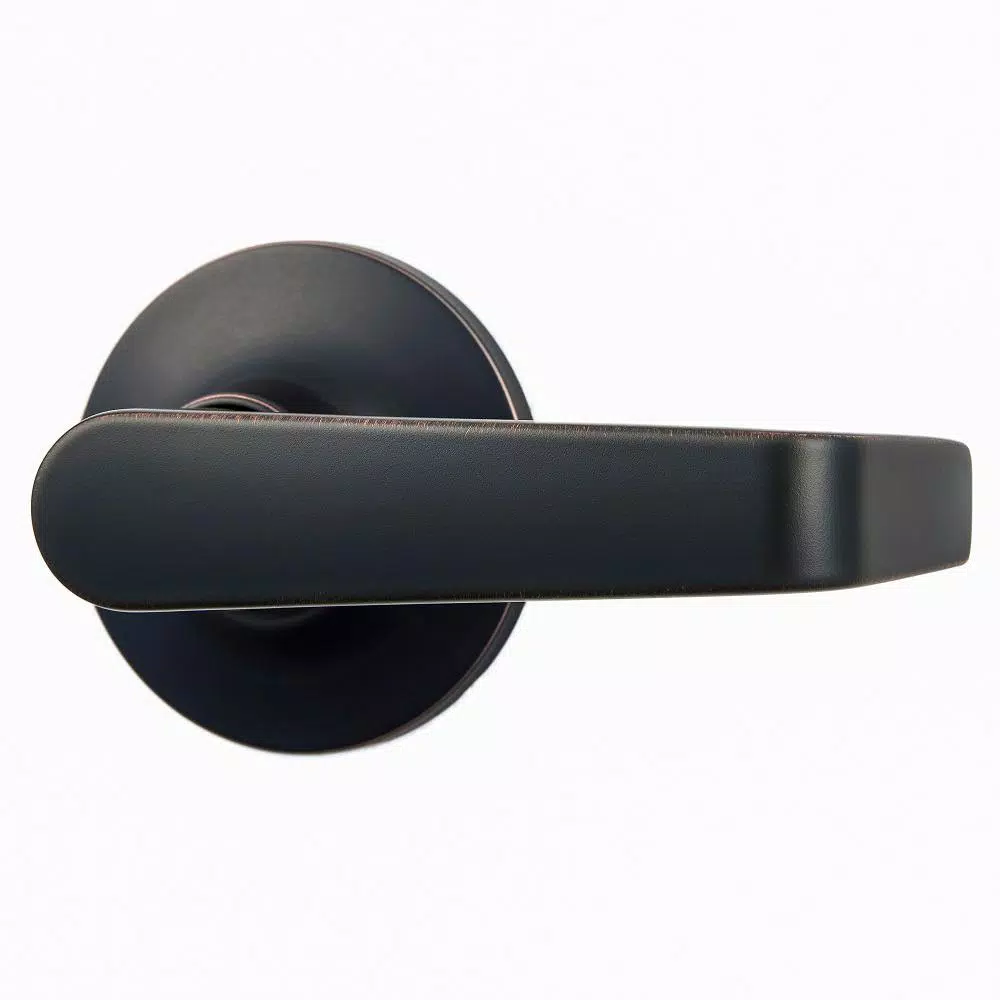

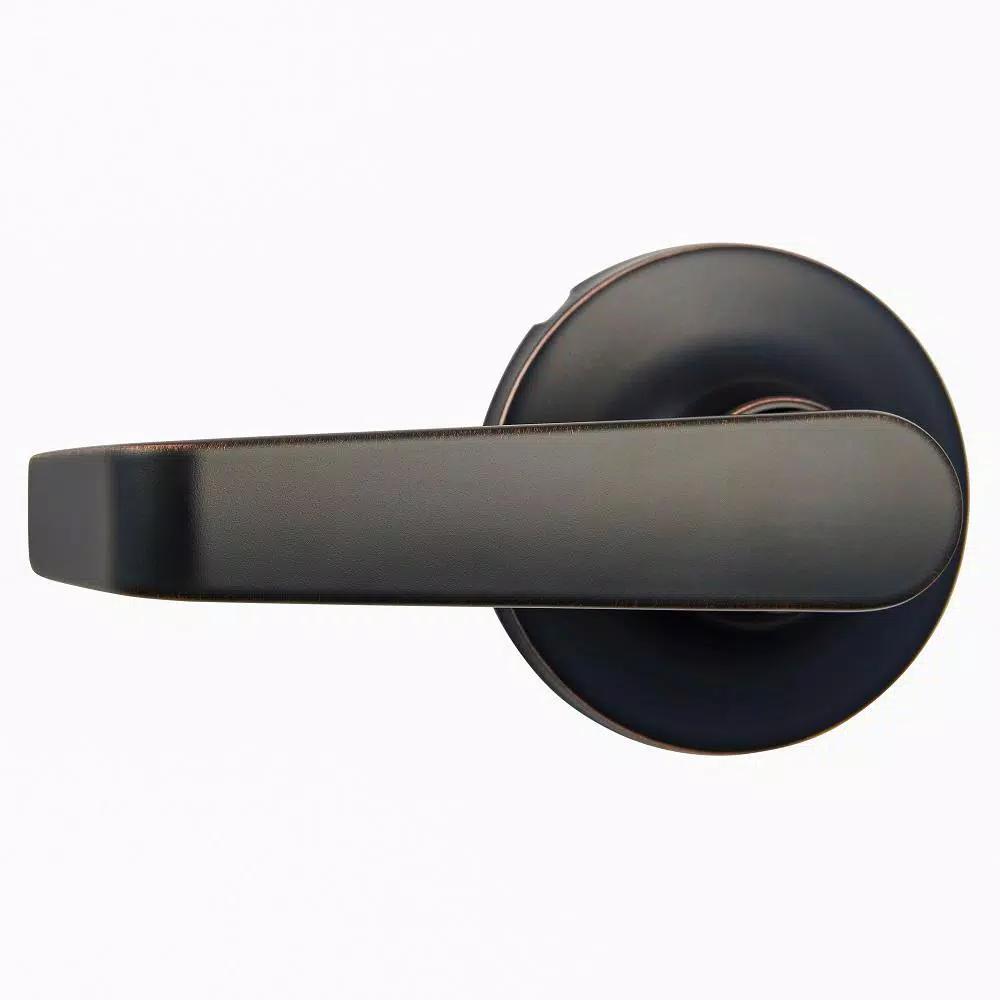

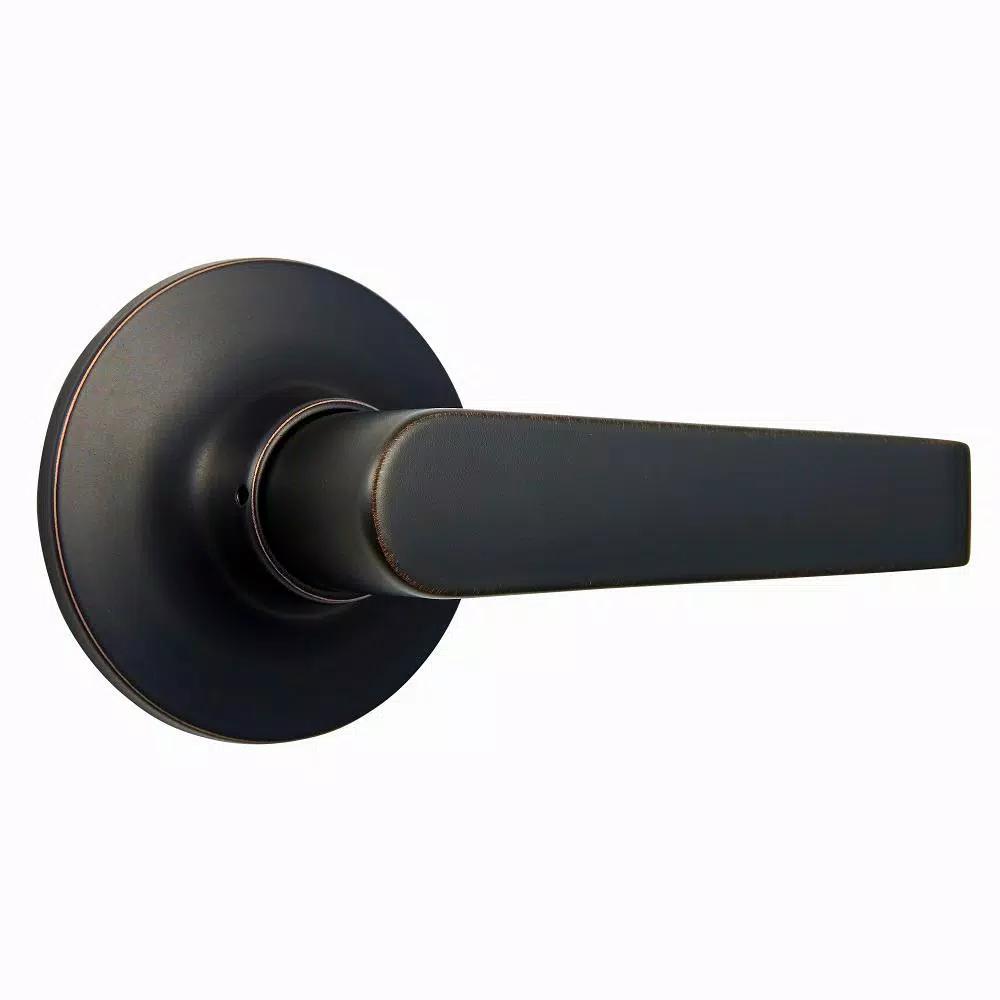

Engineered for durability, this all-metal tubular chassis passage lever is designed for high-traffic residential and light commercial use. It features an ADA-compliant design and meets ANSI Grade 2 standards, ensuring reliable performance for doors that do not require locking.
Engineered for durability, this all-metal tubular chassis passage lever is designed for high-traffic residential and light commercial use. It features an ADA-compliant design and meets ANSI Grade 2 standards, ensuring reliable performance for doors that do not require locking.
| Door Handing | Universal |
| Interior / Exterior | Interior/Exterior |
| Minimum Door Thickness | 1.375 in |
| Security/ANSI Grade | ANSI Grade 2 (Better) |
| Door Lock Style | Classic |
| Lever Material | Zinc |
| Strike | Square corner |
| Hardware Finish Family | Bronze |
| Door Locks & Knobs Product Type | Passage Levers |
| Material | Steel |
| Lock Type | Unkeyed |
| Included | Hardware, Installation Instructions |
| Application Type | Passage |
| Finish | Aged Bronze |
| Commercial/Residential | Commercial, Residential |
| Lever Style | Straight |
| Assembled Depth | 2.75 in |
| Lever Grip Length | 4 in |
| Strike Height | 2.75 in |
| Strike Width | 1 in |
| Assembled Width | 6.5 in |
| Maximum Door Thickness | 2 in |
| Cross Bore Diameter | 2.125 in |
| Throw Length | 0.5 in |
| Projection | 2.5 in |
| Assembled Height | 2.75 in |
| Lever Housing Height | 2.75 in |
| Lever Housing Width | 2.75 in |
| Weight | 2.48 lbs |
| Length | 3 in |
| Width | 6.9 in |
| Height | 9.35 in |
