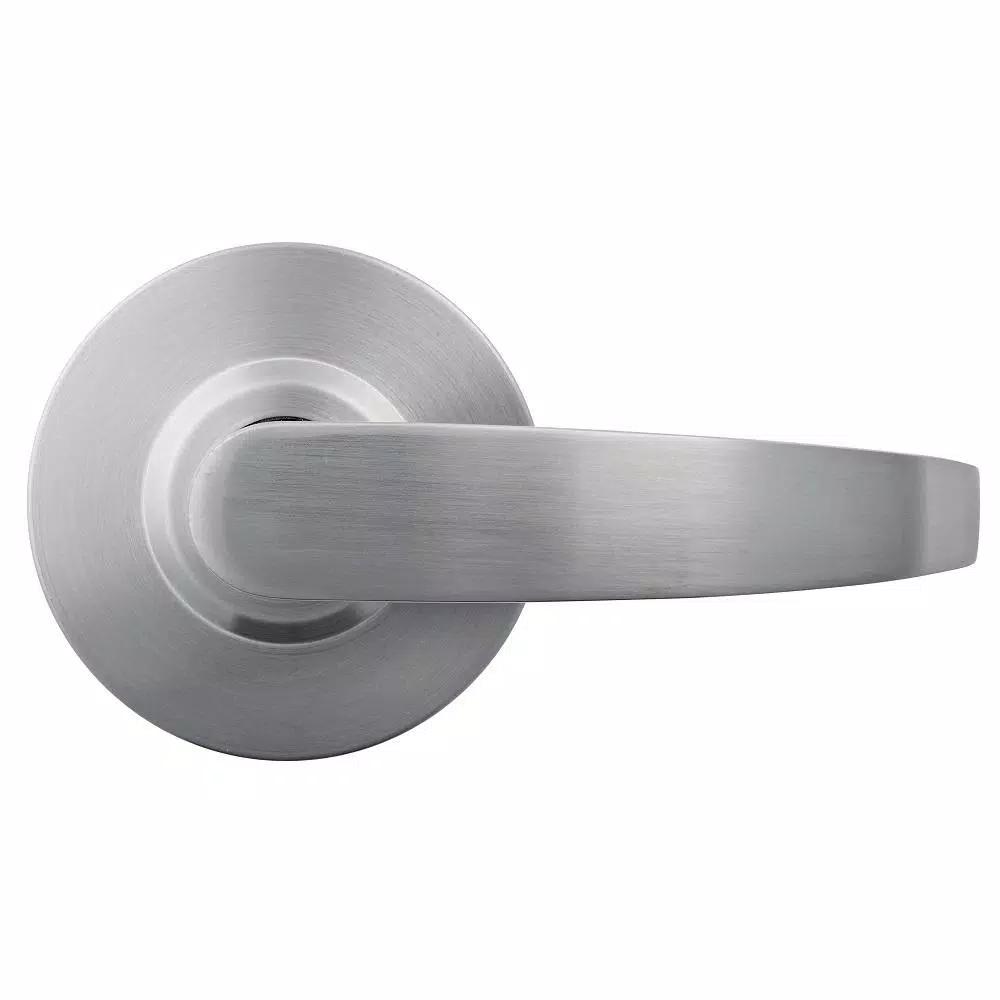

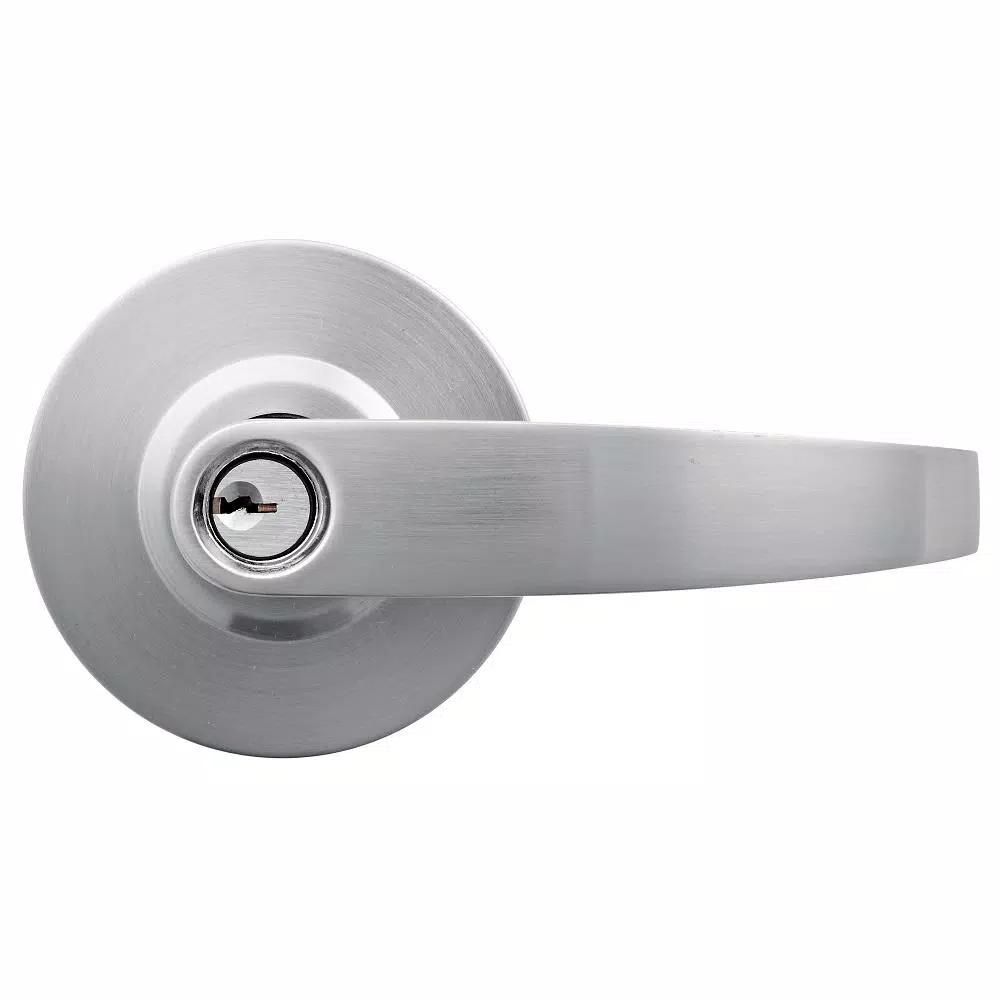

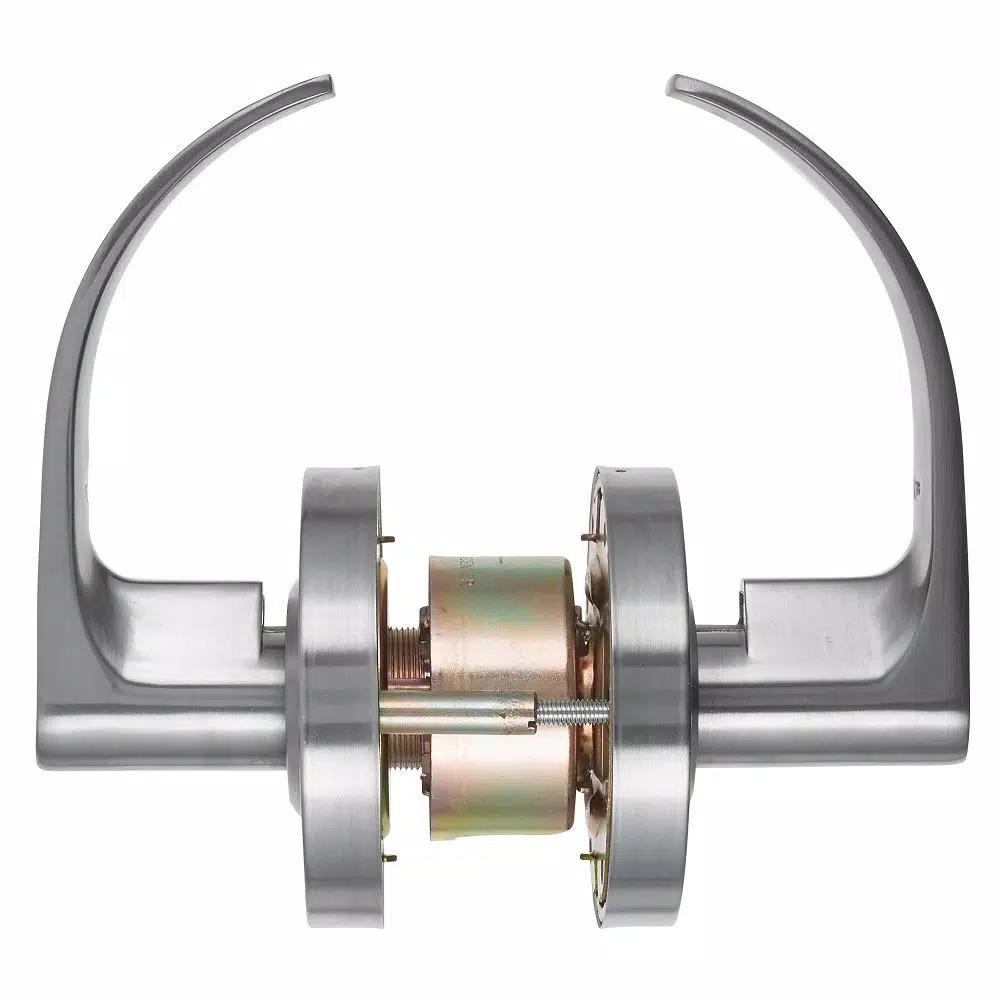

Engineered for high-traffic environments, this ANSI Grade 1 industrial lever features a vandal-resistant clutch mechanism and a robust cylindrical locking system. The satin chrome finish provides long-lasting durability, while the storeroom function ensures secure key-entry access from the exterior.
Engineered for high-traffic environments, this ANSI Grade 1 industrial lever features a vandal-resistant clutch mechanism and a robust cylindrical locking system. The satin chrome finish provides long-lasting durability, while the storeroom function ensures secure key-entry access from the exterior.
| Door Handing | Universal |
| Interior / Exterior | Interior/Exterior |
| Minimum Door Thickness | 1.375 |
| Keyway | No Keyway |
| Security/ANSI Grade | ANSI Grade 1 (Best) |
| Features | Easy Installation |
| Door Lock Style | Classic |
| Backset Size | 2.75 |
| Lever Material | Zinc |
| Strike | Square corner |
| Number of Pins | 6 |
| Hardware Finish Family | Chrome |
| Door Locks & Knobs Product Type | Keyed Levers |
| Total Number of Keys Included | 2 |
| Lock Type | Keyed Entry |
| Electronic / Mechanical | Mechanical |
| Included | Hardware, Installation Instructions |
| Wired or Wireless | No electrical connectivity |
| Application Type | Entry |
| Finish | Satin Chrome |
| Commercial/Residential | Commercial, Residential |
| Lever Style | Wave |
| Housing Width | 3.375 |
| Housing Height | 3.375 |
| Assembled Depth | 2.5 |
| Lever Grip Length | 5 |
| Strike Height | 4.875 |
| Strike Width | 1.25 |
| Assembled Width | 7.625 |
| Maximum Door Thickness | 2 |
| Cross Bore Diameter | 2.125 |
| Throw Length | 0.5 |
| Projection | 2.5 |
| Assembled Height | 3.25 |
| Bore Hole Diameter | 2.375 |
| Weight | 4.68 lbs |
| Length | 3.5 in |
| Width | 9.5 in |
| Height | 9.75 in |
