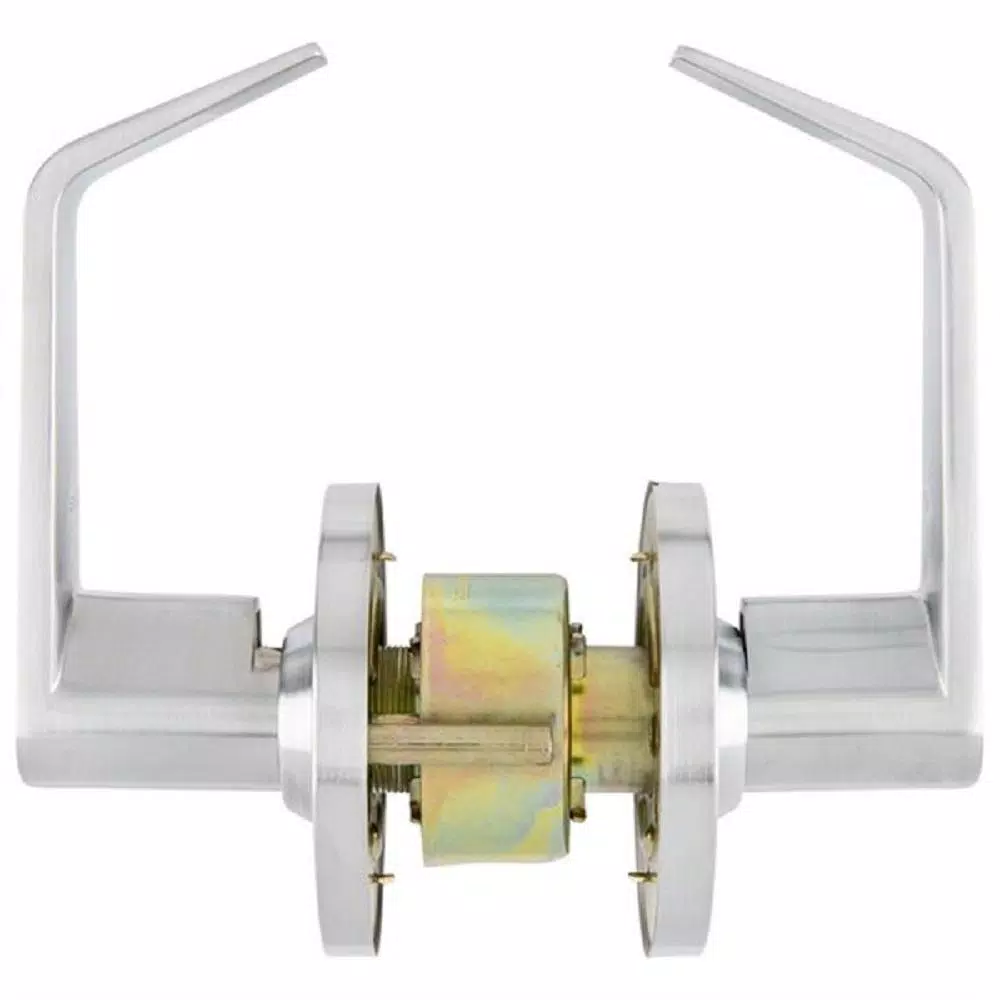

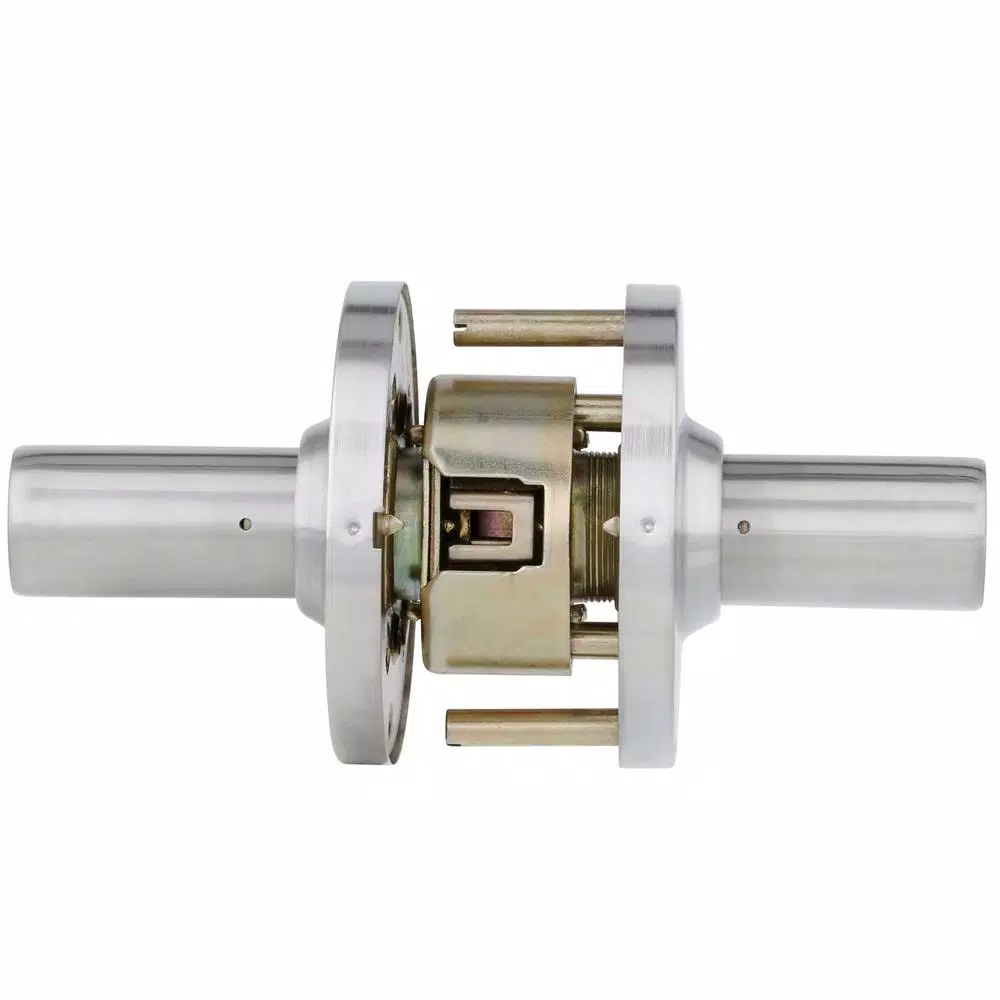

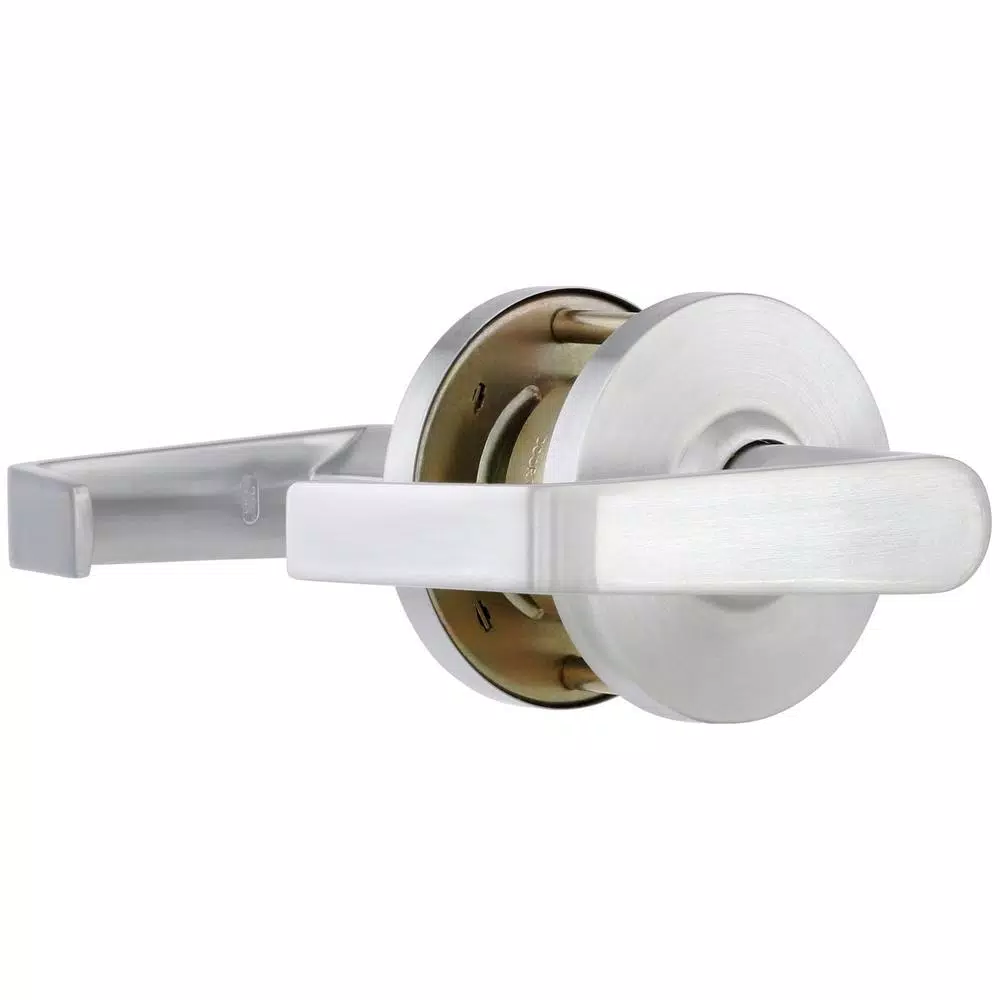

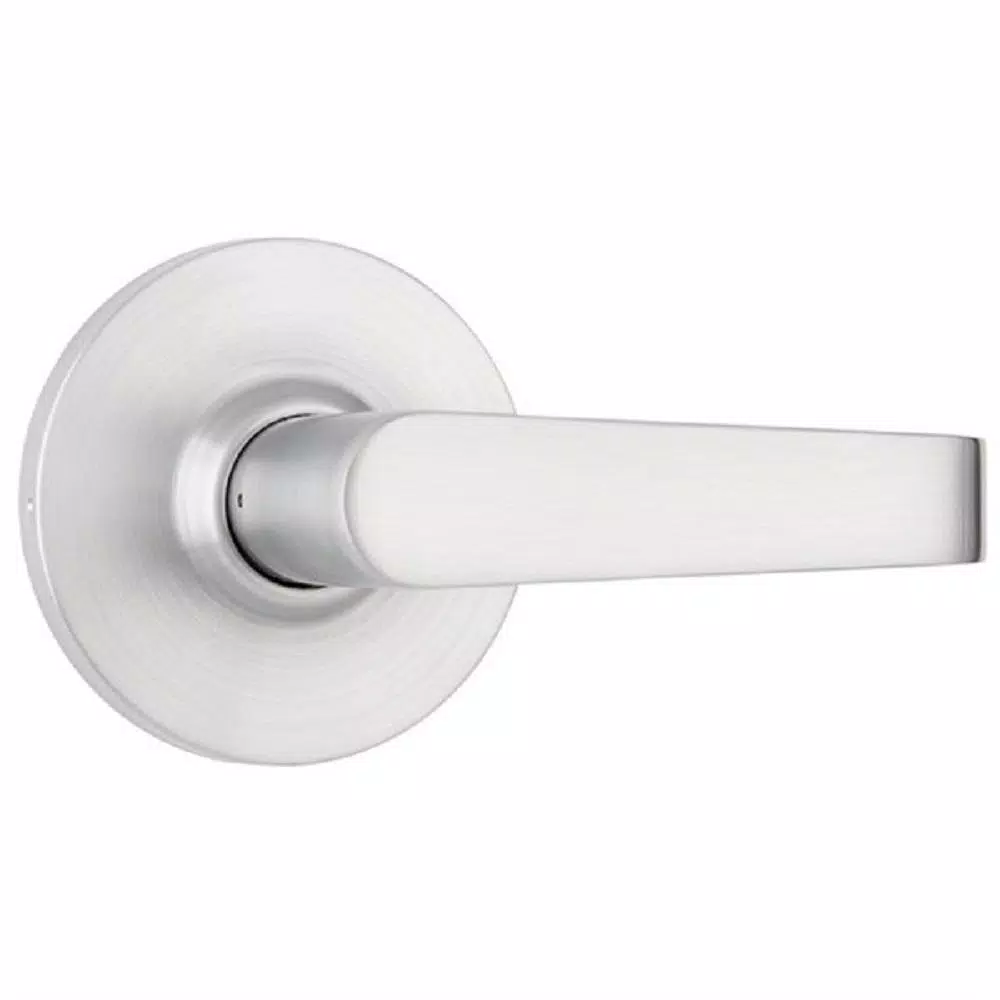

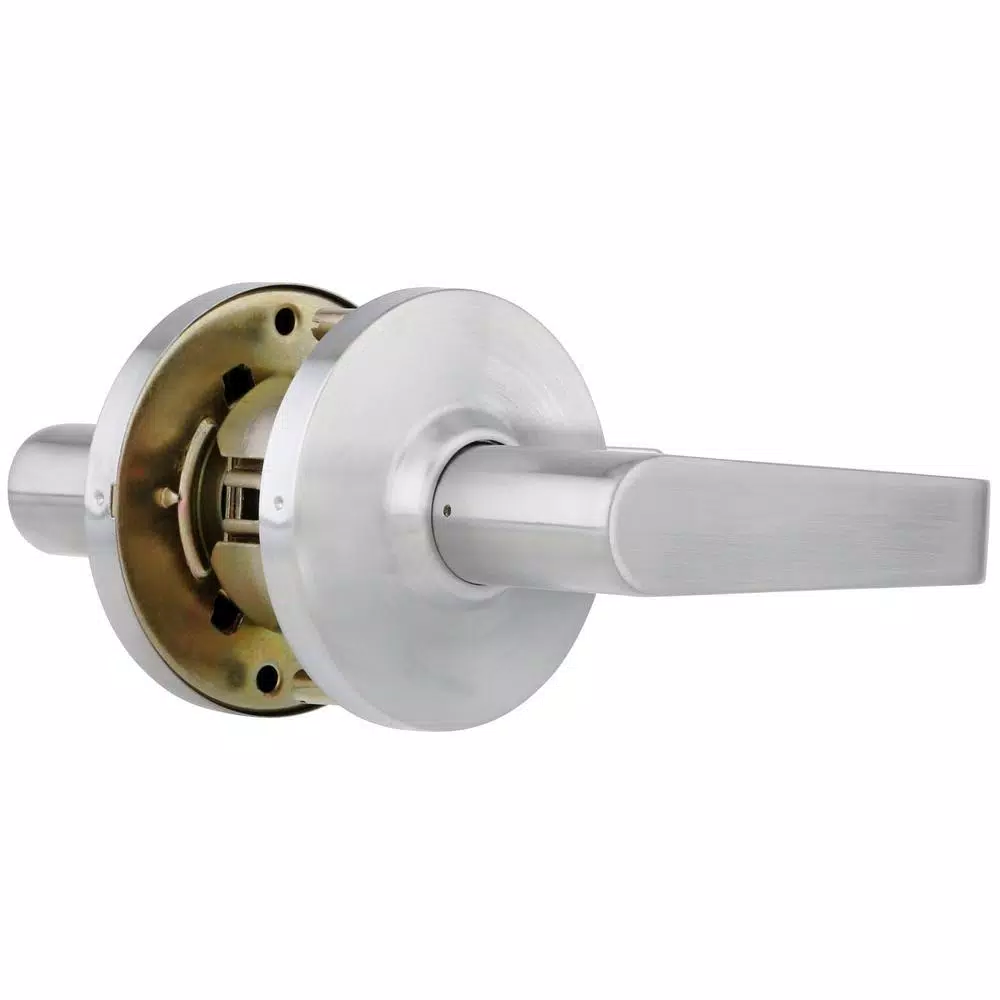

Engineered for high-traffic environments, this heavy-duty passage lever is tested to 400,000 cycles for extreme mechanical durability. The corrosion-resistant steel construction and satin chrome finish ensure long-lasting performance for both commercial and residential interior doors.
Engineered for high-traffic environments, this heavy-duty passage lever is tested to 400,000 cycles for extreme mechanical durability. The corrosion-resistant steel construction and satin chrome finish ensure long-lasting performance for both commercial and residential interior doors.
| Door Handing | Universal |
| Interior / Exterior | Interior |
| Minimum Door Thickness | 1.375 in |
| Security/ANSI Grade | ANSI Grade 2 |
| Features | Easy Installation |
| Door Lock Style | Classic |
| Lever Material | Zinc |
| Strike | Square corner |
| Hardware Finish Family | Chrome |
| Door Locks & Knobs Product Type | Passage Levers |
| Material | Steel |
| Lock Type | Unkeyed |
| Included | Hardware |
| Application Type | Passage |
| Finish | Chrome |
| Commercial/Residential | Commercial, Residential |
| Lever Style | Straight |
| Assembled Depth | 2.5 in |
| Lever Grip Length | 5 in |
| Strike Height | 4.875 in |
| Strike Width | 1.25 in |
| Assembled Width | 6.5 in |
| Maximum Door Thickness | 2 in |
| Cross Bore Diameter | 2.12 in |
| Throw Length | 0.5 in |
| Projection | 2.5 in |
| Assembled Height | 3.75 in |
| Lever Housing Height | 3 in |
| Lever Housing Width | 3 in |
| Weight | 4 lbs |
| Length | 3.6 in |
| Width | 9.4 in |
| Height | 9.55 in |
