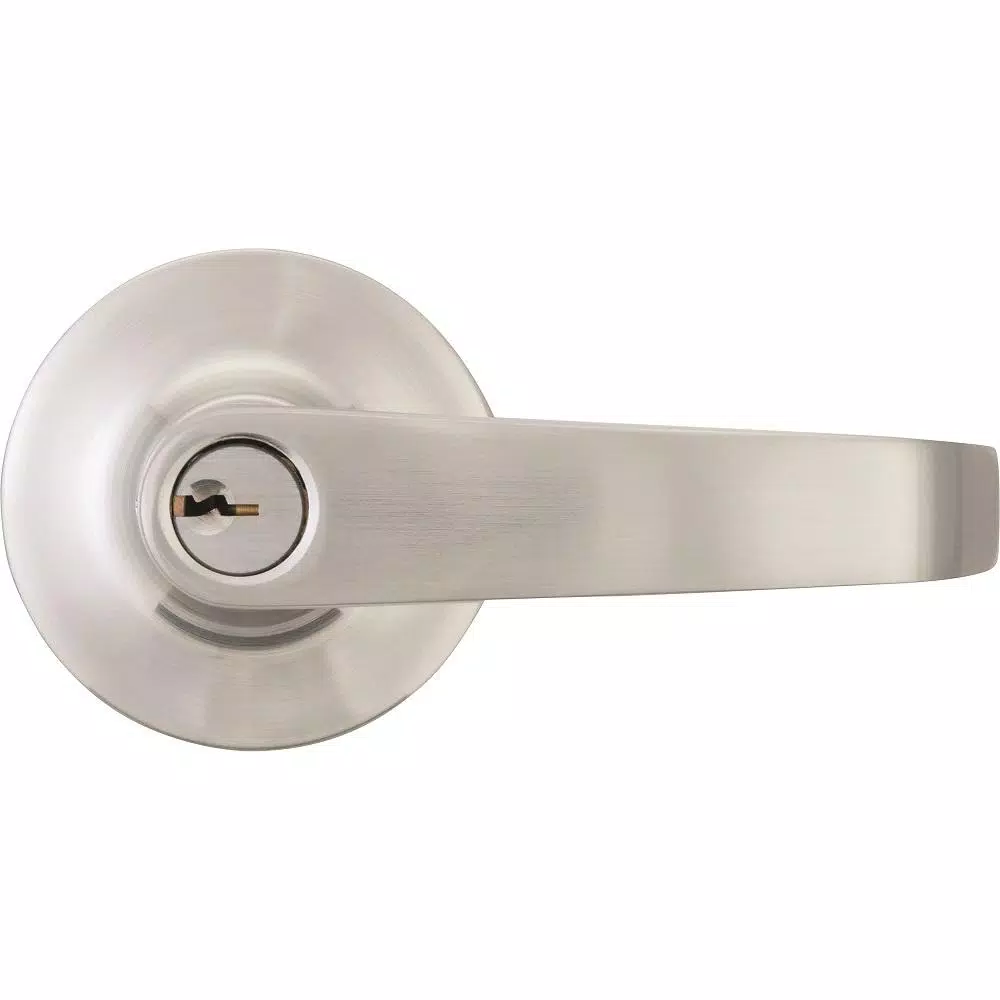

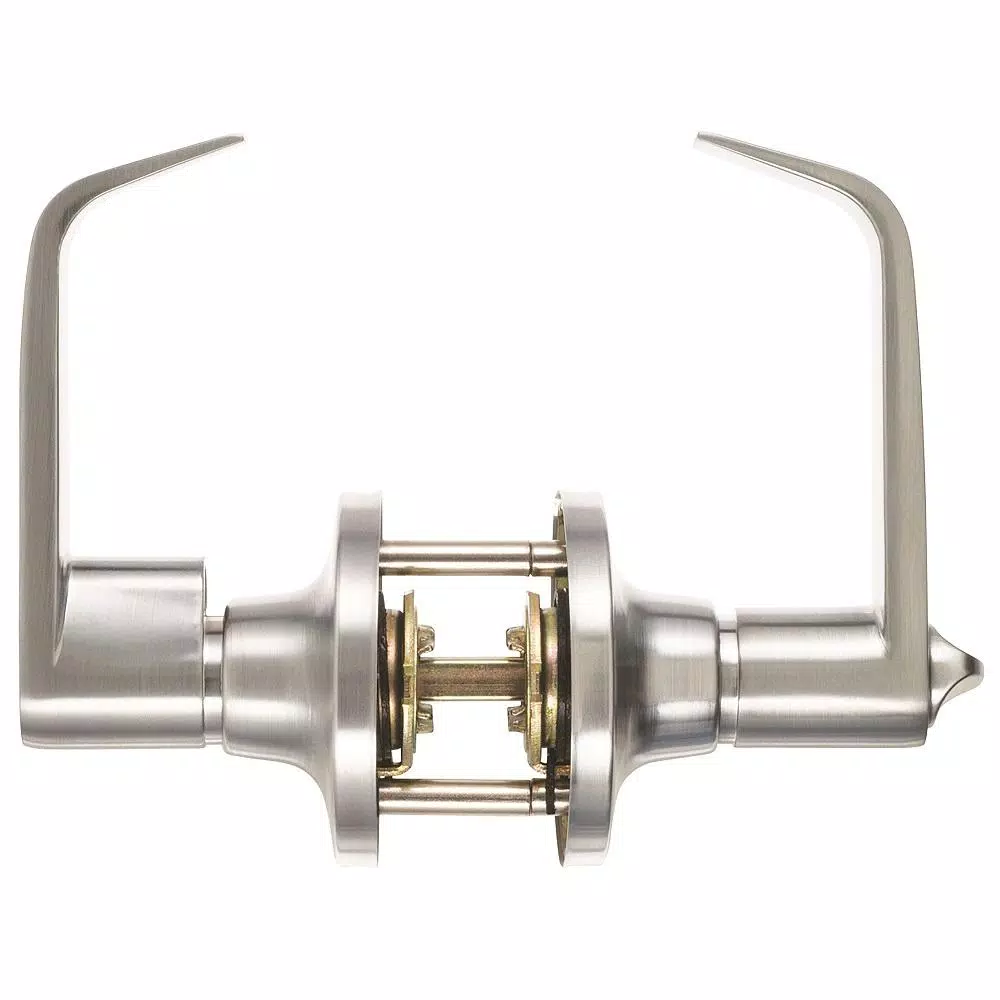

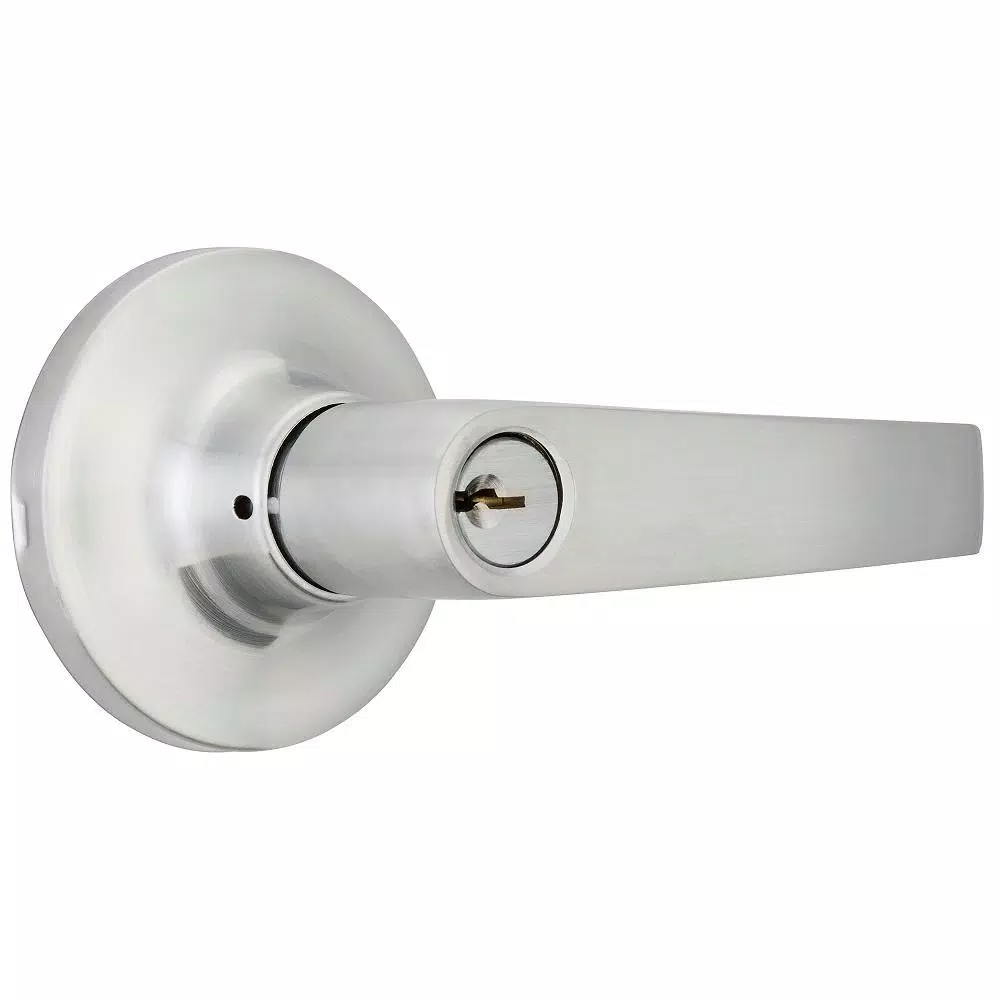

Constructed with a durable solid zinc die-cast chassis, this satin chrome lever provides reliable security for both residential and commercial applications. The adjustable backset and universal handing ensure a versatile fit for doors ranging from 1-3/8 in. to 2 in. thick.
Constructed with a durable solid zinc die-cast chassis, this satin chrome lever provides reliable security for both residential and commercial applications. The adjustable backset and universal handing ensure a versatile fit for doors ranging from 1-3/8 in. to 2 in. thick.
Door Handing
Universal
Interior / Exterior
Interior/Exterior
Minimum Door Thickness
1.375 in
Security/ANSI Grade
ANSI Grade 3
Features
Easy Installation
Door Lock Style
Modern
Backset Size
Adjustable
Lever Material
Zinc
Strike
Round corner
Number of Pins
5
Hardware Finish Family
Chrome
Door Locks & Knobs Product Type
Keyed Levers
Included
Installation Instructions
Wired or Wireless
No electrical connectivity
Lock Type
Keyed Entry
Application Type
Entry
Finish
Satin Chrome
Commercial/Residential
Commercial, Residential
Lever Style
Straight
Housing Width
2.5 in
Housing Height
2.5 in
Assembled Depth
2.85 in
Lever Grip Length
4 in
Strike Height
1 in
Strike Width
0.5 in
Assembled Width
7.625 in
Maximum Door Thickness
2 in
Cross Bore Diameter
2.125 in
Throw Length
2 in
Projection
2.5 in
Assembled Height
7.375 in
Bore Hole Diameter
2.12 in
Total Number of Keys Included
2
Dimensions
7.5 × 4.25 × 3.25 in
Weight
2.025 lbs
