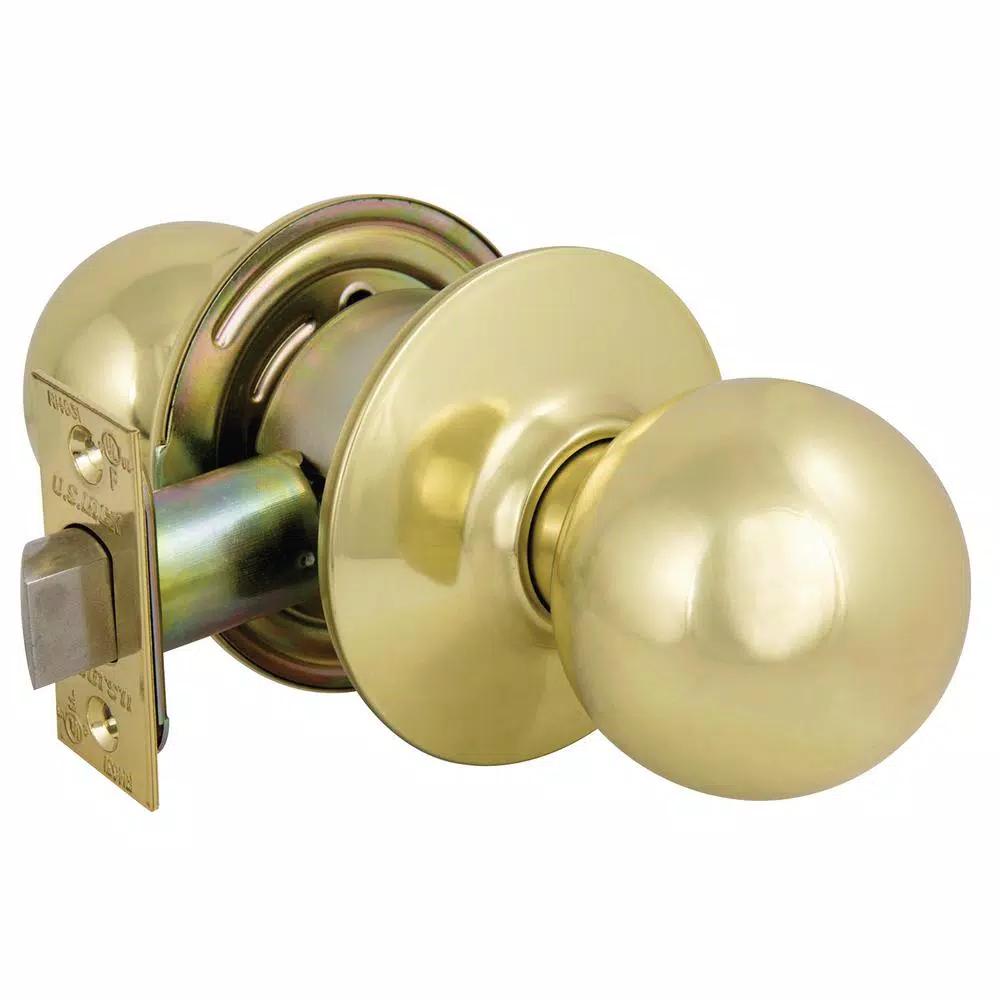

This ANSI Grade 2 passage knob is designed for residential, industrial, and commercial applications with normal traffic. The large rose design easily covers existing bore hole scratches, and installation is simple with just a screwdriver for replacements.
This ANSI Grade 2 passage knob is designed for residential, industrial, and commercial applications with normal traffic. The large rose design easily covers existing bore hole scratches, and installation is simple with just a screwdriver for replacements.
Interior / Exterior
Interior
Minimum Door Thickness
1.375
Security/ANSI Grade
ANSI Grade 2 (Better)
Features
Easy Installation, Adjustable Backset
Door Lock Style
Classic
Backset Size
2.375
Strike
Square corner
Knob Material
Metal
Hardware Finish Family
Brass
Door Locks & Knobs Product Type
Passage Knobs
Material
Metal
Knob Style
Full ball
Lock Type
Unkeyed
Included
Hardware, Installation Instructions, Drilling Template
Wired or Wireless
No electrical connectivity
Application Type
Passage
Finish
US3 - Bright Brass
Commercial/Residential
Commercial
Knob Cross Bore Diameter
1
Knob Housing Width
3
Knob Housing Height
0.65
Knob Diameter
2.125
Assembled Depth
7.21
Strike Height
2.75
Strike Width
1.125
Assembled Width
2.94
Maximum Door Thickness
1.75
Throw Length
0.5
Projection
0.49
Assembled Height
2.94
Dimensions
4.13 × 8.03 × 3.15 in
Weight
1.6 lbs
