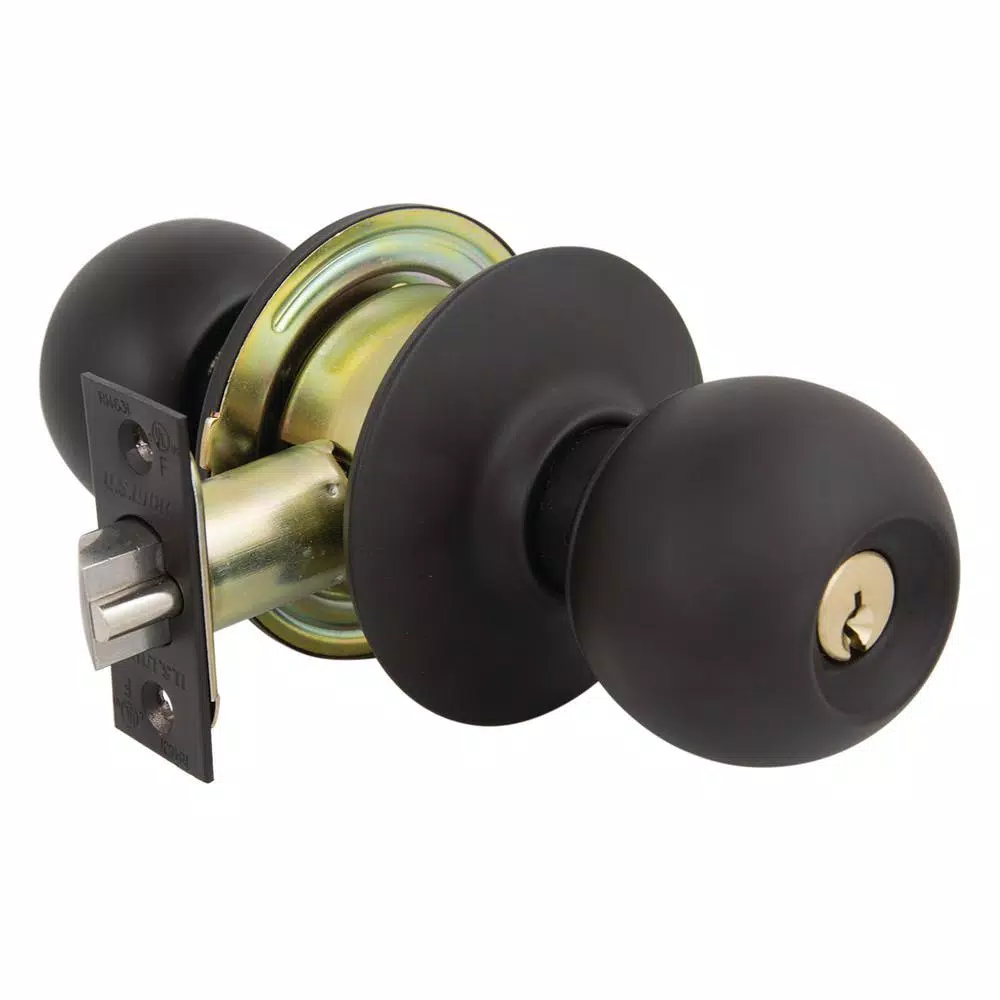

This ANSI Grade 2 storeroom knob is designed for high-traffic residential, industrial, and commercial applications. Featuring a classic full ball design in Oil-Rubbed Bronze, it offers easy installation and a large rose to cover existing bore hole marks.
This ANSI Grade 2 storeroom knob is designed for high-traffic residential, industrial, and commercial applications. Featuring a classic full ball design in Oil-Rubbed Bronze, it offers easy installation and a large rose to cover existing bore hole marks.
| Interior / Exterior | Interior |
| Minimum Door Thickness | 1.25 in |
| Keyway | C |
| Security/ANSI Grade | ANSI Grade 2 |
| Features | Easy Installation |
| Door Lock Style | Classic |
| Strike | Square corner |
| Knob Material | Metal |
| Hardware Finish Family | Black |
| Door Locks & Knobs Product Type | Storeroom Knobs |
| Material | Metal |
| Combo Pac | Non-Combo |
| Total Number of Keys Included | 2 |
| Knob Style | Full ball |
| Backset | 2.375 in |
| Application Type | Entry |
| Finish | US10B - Oil-Rubbed Bronze |
| Knob Cross Bore Diameter | 1 in |
| Knob Housing Width | 3 in |
| Knob Housing Height | 0.65 in |
| Knob Diameter | 2.125 in |
| Assembled Depth | 7.02 in |
| Strike Height | 2.75 in |
| Strike Width | 1.125 in |
| Assembled Width | 2.94 in |
| Maximum Door Thickness | 1.75 in |
| Projection | 0.5 in |
| Throw Length | 3.17 in |
| Assembled Height | 2.94 in |
| Bore Hole Diameter | 2.125 in |
| Weight | 1.93 lbs |
| Length | 4.13 in |
| Width | 8.03 in |
| Height | 3.15 in |
