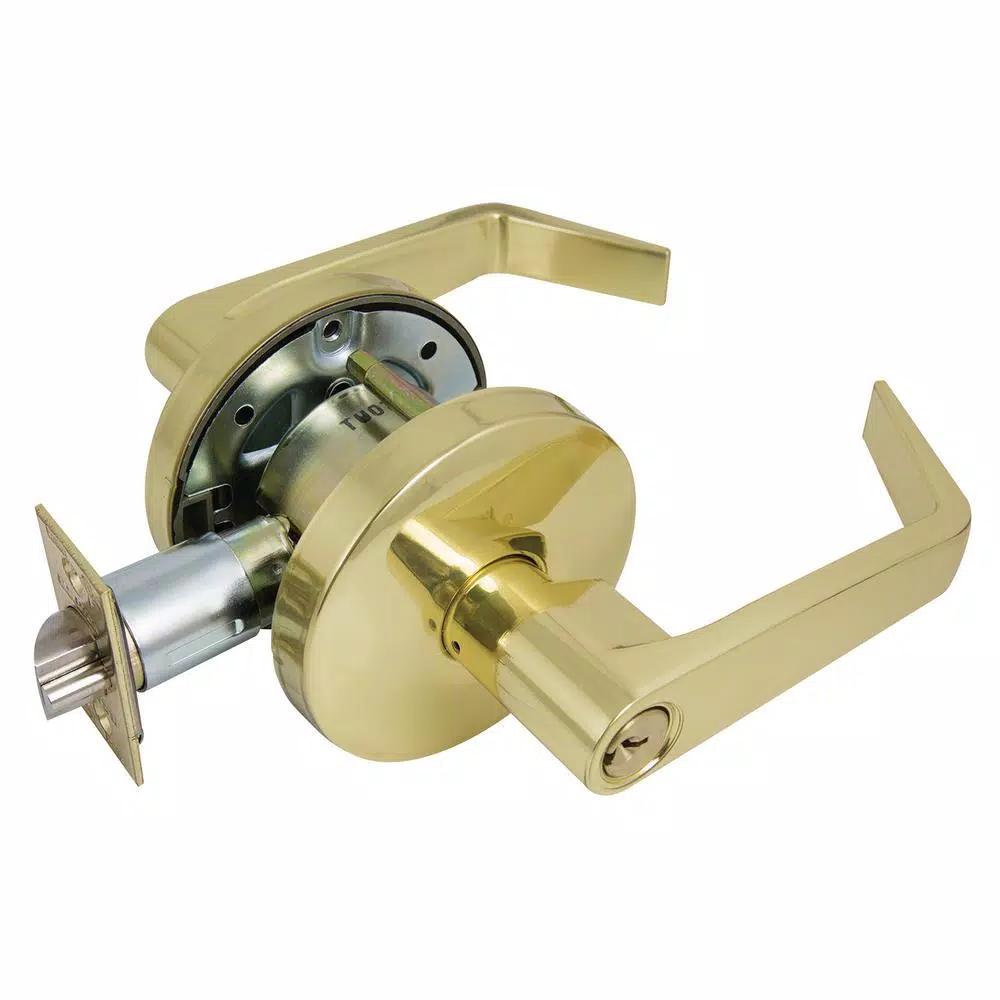

This ANSI Grade 2 commercial-grade entrance lever is certified for barrier-free access and features independent return springs to prevent lever sag. Designed for easy installation, it serves as a reliable, high-security solution for commercial applications with a 3-hour UL fire rating.
This ANSI Grade 2 commercial-grade entrance lever is certified for barrier-free access and features independent return springs to prevent lever sag. Designed for easy installation, it serves as a reliable, high-security solution for commercial applications with a 3-hour UL fire rating.
| Door Handing | Universal |
| Interior / Exterior | Exterior |
| Minimum Door Thickness | 1.375 in |
| Keyway | C |
| Security/ANSI Grade | ANSI Grade 2 |
| Door Lock Style | Classic |
| Backset Size | 2.75 in |
| Lever Material | Zinc |
| Strike | Square corner |
| Number of Pins | 5 |
| Hardware Finish Family | Brass |
| Door Locks & Knobs Product Type | Keyed Levers |
| Keyed Entry | Yes |
| Material | Metal |
| Combo Pac | Non-Combo |
| Total Number of Keys Included | 2 |
| Included | Mounting Hardware, Hardware, Installation Instructions, Drilling Template |
| Wired or Wireless | No electrical connectivity |
| Application Type | Entry |
| Finish | US3 - Bright Brass |
| Commercial/Residential | Commercial |
| Lever Style | Straight |
| Housing Width | 3.34 in |
| Housing Height | 0.66 in |
| Assembled Depth | 7 in |
| Lever Grip Length | 5.14 in |
| Strike Height | 4.875 in |
| Strike Width | 1.25 in |
| Assembled Width | 6.3 in |
| Maximum Door Thickness | 1.75 in |
| Cross Bore Diameter | 1 in |
| Throw Length | 7.875 in |
| Projection | 0.5 in |
| Assembled Height | 3.35 in |
| Bore Hole Diameter | 2.125 in |
| Weight | 3.67 lbs |
| Length | 6.81 in |
| Width | 8.07 in |
| Height | 3.86 in |
