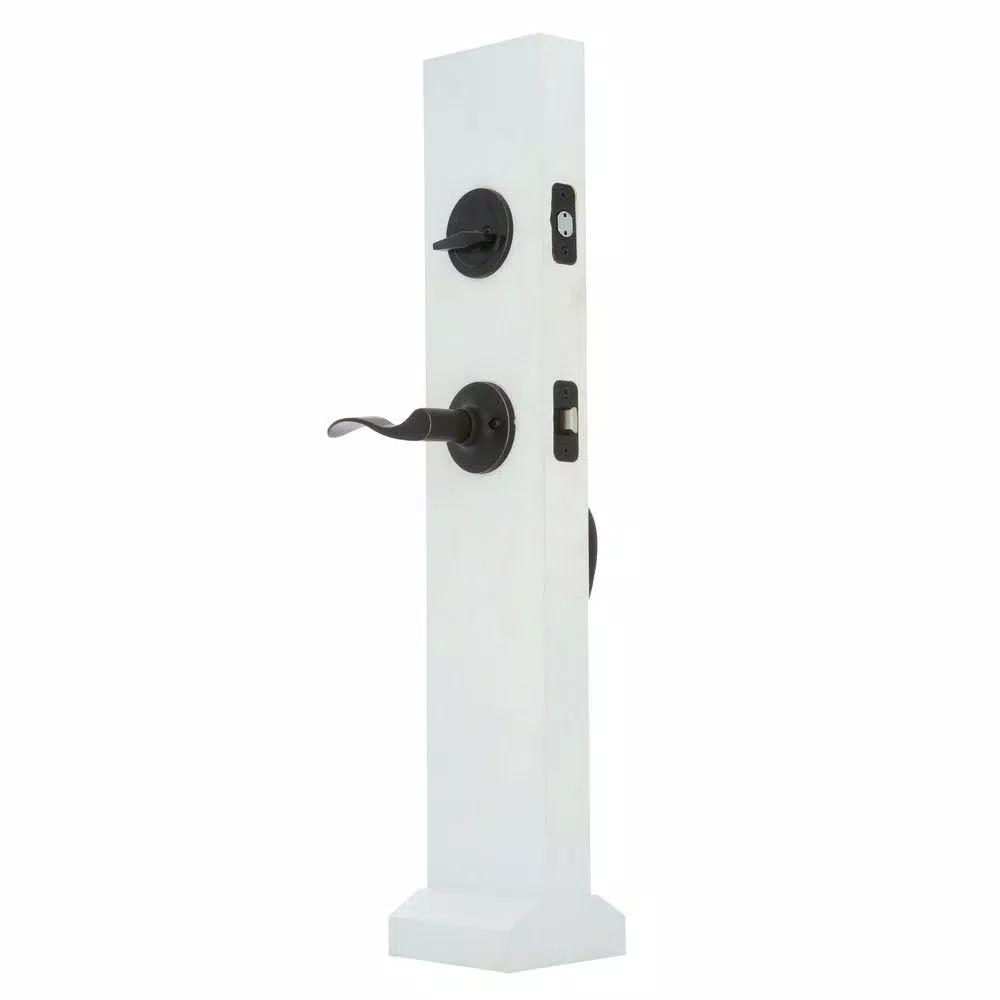

Upgrade your home security with this elegant Hillcrest handleset featuring a classic Oil-Rubbed Bronze finish and New Haven lever. Designed for easy installation, it features an adjustable latch and split spindles to accommodate various door thicknesses and backsets.
Money-back guarantee
Free 30-day returns
100% Authentic
Official brand warranty
Ships from USA
Fast US warehouse dispatch
Secure checkout
256-bit SSL encrypted
Upgrade your home security with this elegant Hillcrest handleset featuring a classic Oil-Rubbed Bronze finish and New Haven lever. Designed for easy installation, it features an adjustable latch and split spindles to accommodate various door thicknesses and backsets.
Door Handing
Right-Handed
Interior / Exterior
Exterior
Minimum Door Thickness
1.375 in
Security/ANSI Grade
ANSI Grade 3 (Good)
Door Lock Style
Classic
Features
Easy Installation, Adjustable Backset
Door Locks & Knobs Product Type
Keyed Handlesets
Hardware Finish Family
Bronze
Material
Metal
Total Number of Keys Included
2
Included
Hardware, Installation Instructions
Lock Type
Keyed Entry
Application Type
Entry
Deadbolt Type
Single Cylinder Deadbolt
Finish
Oil Rubbed Bronze
Commercial/Residential
Residential
Lever Style
Wave
Handleset Product Type
2 Piece Front & Back
Knob / Lever Housing Width
2.875 in
Deadbolt Strike
Full Round
Knob / Lever Bore Hole Diameter
1.0 in
Outside Handle and Key Plate Width
2.88 in
Deadbolt Throw Length
1.0 in
Handle Grip Length
8.625 in
Inside Plate Length
5.13 in
Deadbolt Strike Height
2.25 in
Knob / Lever Strike Height
2.25 in
Knob / Lever Strike Width
1.75 in
Knob / Lever Throw Length
0.5 in
Deadbolt Strike Width
1.0 in
Deadbolt Bore Hole Diameter
1.0 in
Deadbolt Trim Ring Diameter
2.5 in
Deadbolt Cross Bore Diameter
2.125 in
Assembled Depth
2.5 in
Lever Grip Length
4.625 in
Knob / Lever Cross Bore Diameter
2.125 in
Knob / Lever Housing Height
2.75 in
Inside Plate Width
2.63 in
Assembled Width
2.875 in
Maximum Door Thickness
2.0 in
Outside Handle Plate On - Center Measurement
5.5 in
Projection
2.5 in
Outside Handle and Key Plate Length
16.5 in
Assembled Height
16.5 in
Dimensions
18.25 × 7.25 × 6.13 in
Weight
2.95 lbs
